1. Introduction
This manual provides essential instructions for the safe and efficient use of your Epson L110 Colour Inkjet Printer. The Epson L110 is designed for personal and work projects, offering efficient performance with low running costs. It features a compact design and an integrated ink tank system.

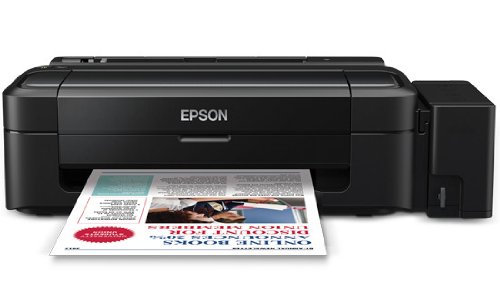

Figure 1: Front view of the Epson L110 Colour Inkjet Printer.
2. Setup
2.1 Unpacking
Carefully remove the printer from its packaging. Ensure all protective tapes and packing materials are removed from the printer's exterior and interior. Retain the packaging for future transport or storage.
2.2 Power Connection
- Connect the power cord to the printer's power input.
- Plug the other end of the power cord into a grounded electrical outlet.
- Do not power on the printer until ink tanks are filled.
2.3 Filling Ink Tanks
The Epson L110 features an integrated ink tank system. Use only genuine Epson ink bottles for optimal performance and to prevent damage.
- Open the ink tank unit cover on the side of the printer.
- Uncap the ink bottle for the corresponding color (Cyan, Magenta, Yellow, Black).
- Carefully pour the ink into the correct tank, aligning the bottle nozzle with the tank's filling port. The "Fast Ink Top-Up Technology" is designed for mess-free refills.
- Fill each tank to the upper line.
- Close the ink tank unit cover securely.
Figure 2: Illustration of filling the ink tanks. Ensure correct color matching.
2.4 Driver Installation
After filling the ink tanks, connect the printer to your computer using a USB cable. Install the printer drivers from the provided CD-ROM or download the latest drivers from the official Epson support website. Follow the on-screen instructions to complete the installation.
3. Operating the Printer
3.1 Loading Paper
- Open the paper support and pull out the extension.
- Fan the edges of the paper stack to separate the sheets.
- Load paper into the sheet feeder with the print side facing up.
- Adjust the edge guide to the width of your paper. The maximum input sheet capacity is 50 sheets.
Figure 3: Proper paper loading into the input tray.
3.2 Basic Printing
- Ensure the printer is powered on and connected to your computer.
- Open the document or image you wish to print on your computer.
- Select "Print" from the application's menu (e.g., File > Print).
- In the print dialog box, select "Epson L110" as your printer.
- Adjust print settings such as paper size, print quality, and number of copies.
- Click "Print" to start the printing process.
The Epson L110 offers a print speed of up to 27 pages per minute (ppm) for black prints and 15 ppm for color prints. It produces high-resolution prints of 5760 x 1440 dpi.
4. Maintenance
4.1 Ink Refilling
Monitor ink levels regularly. When an ink tank is low, refill it promptly using genuine Epson ink bottles. A single ink bottle provides a high page yield of up to 4000 prints (black) and 6500 prints (color).
Important: When transporting the printer, ensure the choke valve is locked to prevent messy leaks and ink wastage.
4.2 Print Head Cleaning
If print quality declines (e.g., missing lines, faded colors), perform a print head cleaning. This can typically be done through the printer utility software on your computer. Refer to the software's help section for detailed steps.
4.3 General Cleaning
Wipe the exterior of the printer with a soft, damp cloth. Do not use abrasive cleaners or solvents. Keep the paper path clear of dust and debris.
5. Troubleshooting
- Printer Not Responding:
- Check power connection and ensure the printer is turned on.
- Verify the USB cable connection between the printer and computer.
- Restart both the printer and computer.
- Ensure printer drivers are correctly installed.
- Poor Print Quality:
- Check ink levels and refill if necessary.
- Perform a print head cleaning.
- Run a nozzle check to identify clogged nozzles.
- Ensure you are using appropriate paper for your print settings.
- Paper Jams:
- Turn off the printer and unplug it.
- Carefully remove any jammed paper from the input tray, output tray, or inside the printer.
- Ensure paper is loaded correctly and not creased or curled.
For further assistance, refer to the Epson support website or contact customer service.
6. Specifications
| Feature | Specification |
|---|---|
| Model Name | L110 |
| Printing Technology | Inkjet |
| Printer Output | Colour |
| Maximum Colour Print Resolution | 5760 x 1440 dpi |
| Maximum Black and White Print Resolution | 5760 x 1440 dpi |
| Max Print Speed Monochrome | 27 ppm |
| Maximum Print Speed (Colour) | 15 ppm |
| Ink Colour | Cyan, Black, Magenta, Yellow |
| Page Yield (Black) | Up to 4000 pages |
| Page Yield (Colour) | Up to 6500 pages |
| Connectivity Technology | USB |
| Max Input Sheet Capacity | 50 |
| Supported Media Sizes | A4, A5, A6, A7, A8, A9, B5, B6, B7, B8, B9, C5, C6, C7 |
| Product Dimensions (LxWxH) | 47.2 x 22.2 x 13 cm |
| Item Weight | 2.7 kg |
| Power Consumption | Maximum 10 Watts |
7. Warranty and Support
The Epson L110 Colour Inkjet Printer comes with an Epson Warranty, providing peace of mind. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Epson support website.
For technical support, driver downloads, FAQs, and service center locations, please visit the official Epson support website or contact Epson customer service directly.
