De'Longhi VBF 4200 W Blue Flame Catalytic Heater

Introduction

Welcome to the instruction manual for your new De'Longhi VBF 4200 W Blue Flame Catalytic Heater. This appliance is designed to provide efficient and safe heating for your living space. Please read this manual thoroughly before operating the heater to ensure proper use, maximize its performance, and understand all safety precautions. Keep this manual for future reference.

Product Features

• 4200 W maximum power output.
• Exclusive De'Longhi Duplo double safety system.
• Automatic gas flow shut-off in case of flame failure or CO2 levels exceeding 1.5%.
• Robust and efficient metal back panel for maximum safety and heat dissipation.
• Elegant and innovative design with no sharp edges.
• Easy to move with integrated wheels.
• Variable flame control system, allowing manual adjustment of heat output.
• Ergonomic side controls.

Important Safety Information

Your safety is paramount. This heater is equipped with advanced safety features.

Double Safety System

The De'Longhi VBF 4200 W heater incorporates a dual safety mechanism:

1. Flame Failure Device: Automatically cuts off the gas supply if the flame accidentally extinguishes.
2. Atmosphere Analyzer: Monitors the carbon dioxide (CO2) level in the room. If the CO2 concentration exceeds 1.5%, the heater will automatically shut down to prevent oxygen depletion and ensure a safe environment.

General Safety Precautions:

• Always use the heater in a well-ventilated area.
• Do not obstruct the air inlets or outlets of the heater.
• Keep flammable materials at a safe distance from the heater.
• Do not use the heater in bathrooms, showers, or swimming pools.
• Ensure the gas cylinder is securely connected and free from leaks.
• Do not move the heater while it is operating.
• Supervise children and pets when the heater is in use.
• Disconnect the gas supply when the heater is not in use for extended periods.

Components and Parts

Familiarize yourself with the main components of your De'Longhi VBF 4200 W heater.

This image displays the De'Longhi VBF 4200 W Blue Flame Catalytic Heater from a front-side angle. The heater is light grey with a black control panel and a black grille covering the blue flame burner. It features integrated wheels at the base for easy mobility.

Key components include:

• Radiant Grille (front)
• Control Knobs (side/top)
• Gas Cylinder Compartment (rear)
• Wheels (base)
• Metal Back Panel

Setup

Unpacking

Carefully remove the heater from its packaging. Retain all packaging materials for future storage or transport. Check for any signs of damage.

Placement

Position the heater on a flat, stable surface, away from curtains, furniture, and other flammable materials. Ensure adequate ventilation in the room. Do not place the heater directly under a power outlet.

Gas Cylinder Connection

This heater operates with a suitable gas cylinder (e.g., LPG).

1. Open the rear compartment of the heater.
2. Place the gas cylinder inside the compartment.
3. Connect the gas regulator hose to the gas cylinder valve, ensuring a tight and secure fit. Refer to your gas regulator's instructions for specific connection details.
4. Check for gas leaks using a soapy water solution. Apply the solution to the connection points; bubbles indicate a leak. If a leak is detected, immediately turn off the gas supply, ventilate the area, and re-tighten the connection or replace the regulator/hose if necessary. Do not use an open flame to check for leaks.
5. Close the rear compartment.

Operating Instructions

Ignition

1. Ensure the gas cylinder valve is open.
2. Turn the control knob to the maximum heat setting (usually indicated by a larger flame symbol).
3. Press and hold the control knob down firmly.
4. While holding the knob down, press the ignition button repeatedly until the burner ignites. You should hear a clicking sound and see the blue flame.
5. Once ignited, continue to hold the control knob down for approximately 15-20 seconds to allow the thermocouple to heat up and activate the safety valve. Release the knob slowly. If the flame goes out, repeat the ignition process.

Adjusting Heat Output

The heater features a variable flame control system. Turn the control knob to adjust the heat output manually.

Turning Off the Heater

1. Turn the control knob to the "OFF" position.
2. Close the valve on the gas cylinder.
3. Allow the heater to cool down completely before moving or storing.

Maintenance

Cleaning

Always ensure the heater is cool and the gas supply is disconnected before cleaning.

• Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Periodically check the air inlets and outlets for dust or debris and clean them gently with a soft brush or vacuum cleaner.
• Do not spray water directly onto the heater.

Storage

When not in use for extended periods:

• Disconnect the gas cylinder and store it in a safe, well-ventilated area according to local regulations.
• Store the heater in a dry, dust-free place, preferably in its original packaging.

Troubleshooting

If problems persist, contact De'Longhi customer support or a qualified technician.

Technical Specifications

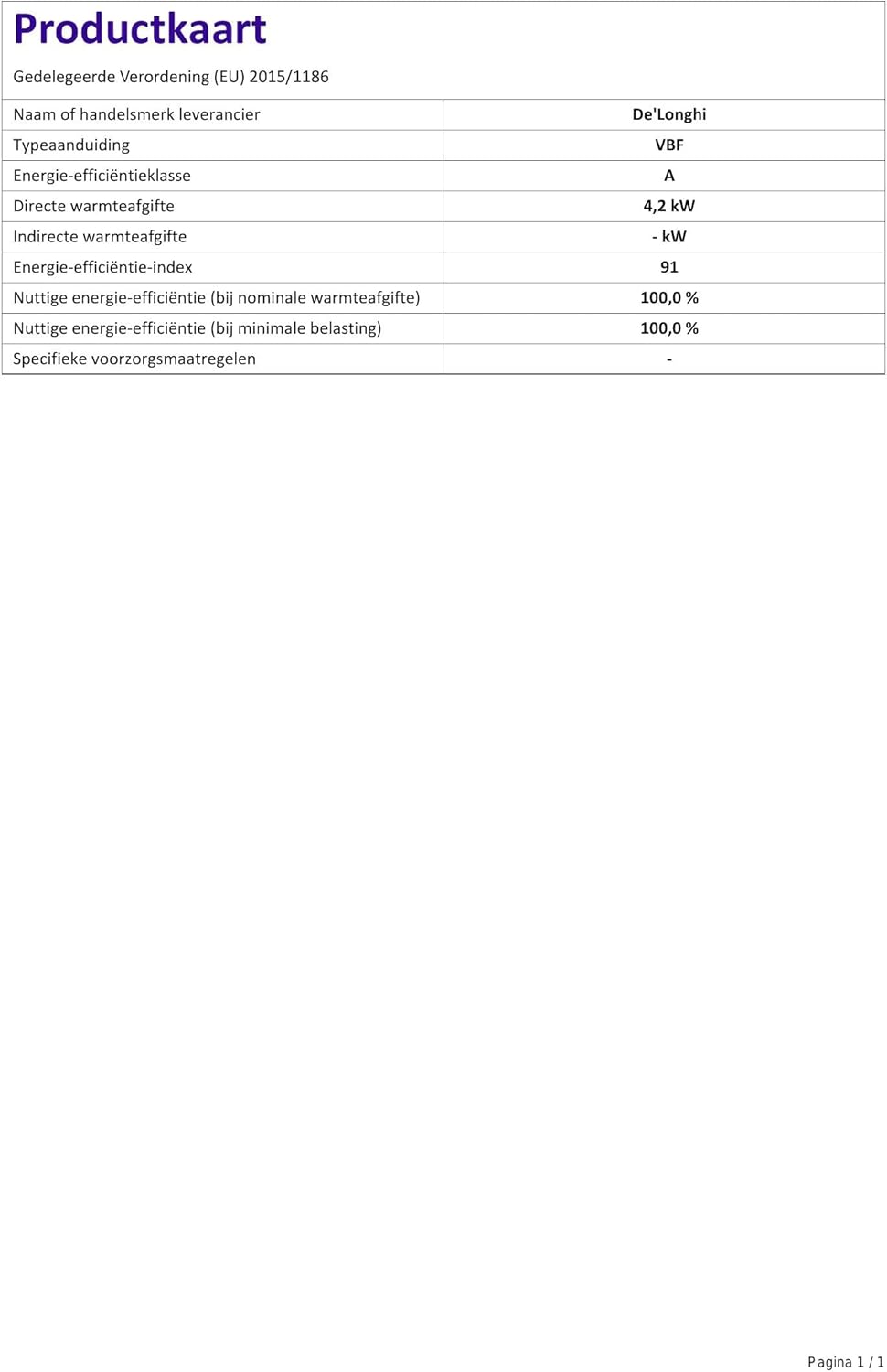

This image shows a technical product card, likely for regulatory compliance, detailing specifications such as energy efficiency class, heat output, and other technical parameters for the De'Longhi VBF heater. The text on the card is in Dutch.

Warranty and Support

For warranty information, please refer to the documentation provided with your purchase or visit the official De'Longhi website. For technical support, spare parts, or service, please contact De'Longhi customer service.

You can typically find contact information on the De'Longhi official website or on your purchase receipt.
