1. Introduction
The Blue Sea Systems 5061 Waterproof Inline Fuse Holder is designed to provide reliable circuit protection in demanding environments. This holder is suitable for marine, automotive, and other applications where protection against water ingress is critical. It accepts standard AGC/MDL blade fuses (sold separately) and is compatible with 12-18 AWG wire, supporting a maximum fuse amperage of 30A.
This manual provides essential information for the safe and correct installation, operation, and maintenance of your fuse holder.
2. Installation
Proper installation is crucial for the safe and effective operation of the fuse holder. Always ensure power is disconnected from the circuit before beginning any installation work.
2.1 Safety Precautions
- WARNING: Disconnect all power to the circuit before installing or servicing the fuse holder.
- Ensure the fuse holder is installed in a location protected from physical damage.
- Use only the specified fuse types (AGC/MDL) and ratings (up to 30A) appropriate for your circuit. Using an incorrect fuse can lead to fire or damage.
- Verify wire gauge compatibility (12-18 AWG) with your application.
2.2 Wiring Instructions
- Prepare the wire ends: Strip approximately 1/4 inch (6mm) of insulation from the ends of the 12-18 AWG wires that will connect to the fuse holder.
- Connect wires: Insert the stripped wire ends into the metal terminals of the fuse holder. Crimp or solder the connections securely to ensure a low-resistance contact.
- Insert fuse: Open the waterproof cap and insert an appropriate AGC/MDL fuse (up to 30A) into the holder. Ensure the fuse is seated firmly.
- Seal the holder: Close the waterproof cap tightly to ensure a secure, watertight seal. This protects the fuse and connections from moisture and contaminants.

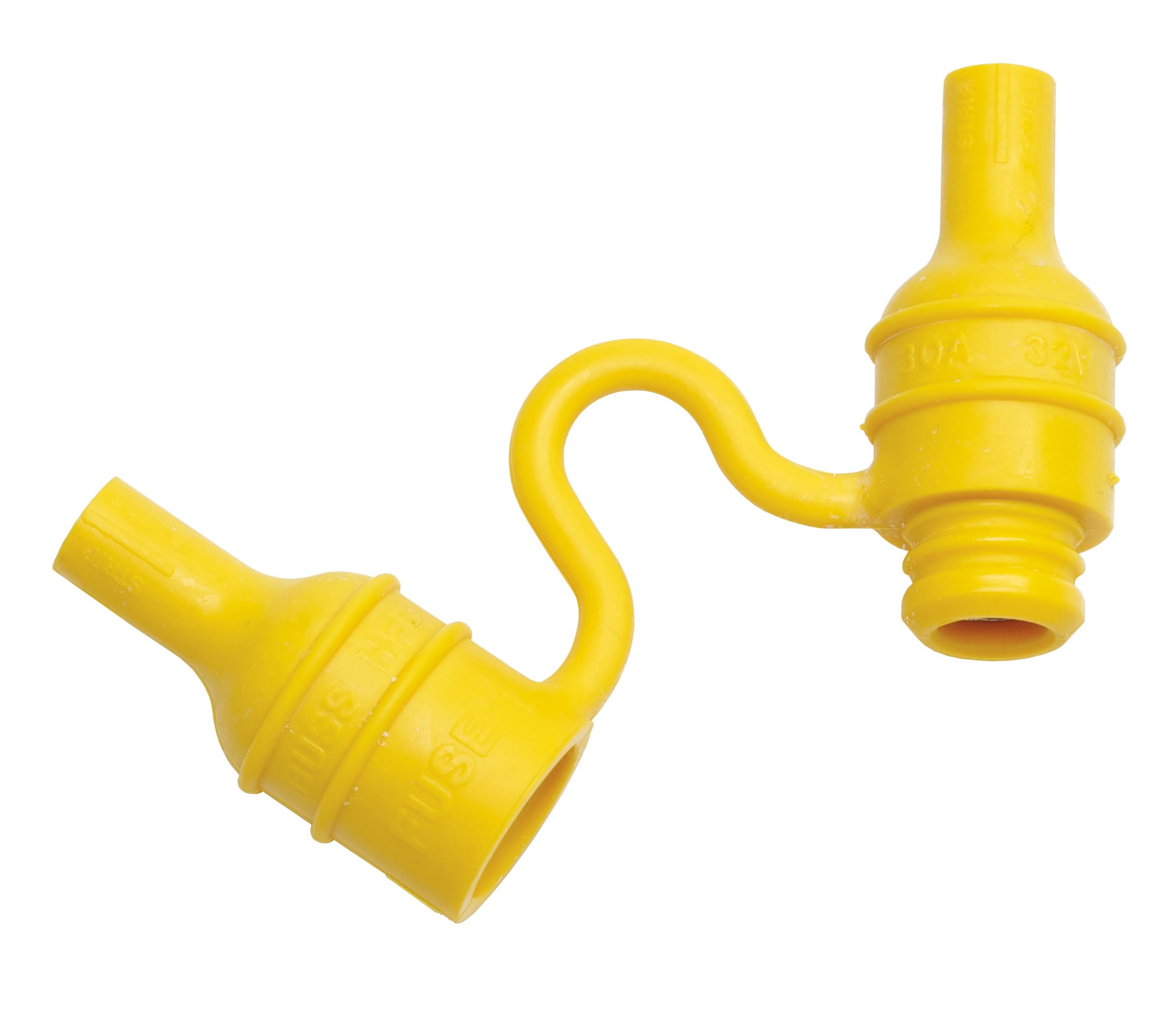

Image 1: Blue Sea Systems 5061 Waterproof Inline Fuse Holder. This image shows the fuse holder with its waterproof cap and wire connections, illustrating its compact design.
3. Operation
Once properly installed with the correct fuse, the Blue Sea Systems 5061 Waterproof Inline Fuse Holder operates passively to protect your electrical circuit. It requires no active user intervention during normal operation.
- The fuse holder continuously monitors the current flowing through the circuit.
- If an overcurrent condition (e.g., a short circuit or overload) occurs, the fuse element inside the AGC/MDL fuse will melt, breaking the circuit and preventing damage to connected components or wiring.
- The waterproof cap ensures the fuse and connections remain protected from environmental elements, maintaining circuit integrity.
Image 2: Close-up view of the Blue Sea Systems 5061 fuse holder. This image highlights the robust construction and the design of the waterproof cap.
4. Maintenance
The Blue Sea Systems 5061 fuse holder is designed for minimal maintenance. However, periodic inspection is recommended to ensure continued reliable performance.
- Visual Inspection: Periodically check the fuse holder for any signs of physical damage, corrosion, or wear. Ensure the waterproof cap is securely closed.
- Connection Integrity: Verify that wire connections remain tight and free from corrosion. Loose connections can lead to overheating or intermittent circuit operation.
- Fuse Replacement: If a fuse blows, replace it only with a fuse of the same type (AGC/MDL) and amperage rating. Never use a fuse with a higher rating than specified for the circuit.
- Cleaning: If necessary, clean the exterior of the fuse holder with a damp cloth. Avoid using harsh chemicals or abrasive cleaners.
5. Troubleshooting
This section provides guidance for common issues you might encounter with your fuse holder.
| Problem | Possible Cause | Solution |
|---|---|---|
| Circuit is not receiving power. | Blown fuse. | Disconnect power, open the fuse holder, and inspect the fuse. Replace with a new AGC/MDL fuse of the correct amperage rating. |
| Fuse blows immediately after replacement. | Overload or short circuit in the protected circuit. | Do not replace the fuse again until the underlying cause of the overload or short circuit is identified and corrected. Consult a qualified technician if necessary. |
| Intermittent power to the circuit. | Loose wire connections or corroded terminals. | Disconnect power. Inspect and tighten all wire connections. Clean any corroded terminals. |
6. Specifications
| Model Number | 5061 (Part Number: 1135-40582) |
| Brand | Blue Sea Systems |
| Fuse Type | AGC / MDL (Glass Tube Fuses) |
| Maximum Amperage | 30 Amps |
| Wire Gauge Compatibility | 12-18 AWG |
| Dimensions (L x W x H) | 5 x 2 x 1 inches (approximately) |
| Item Weight | 1.6 ounces |
| UPC / GTIN | 014445391609 |
7. Warranty & Support
For detailed warranty information and technical support, please refer to the official Blue Sea Systems website or contact their customer service directly. Warranty terms may vary based on region and point of purchase.
