Introduction
This manual provides detailed instructions for the proper installation and use of the American International GWH346R Wiring Harness. This harness is designed to integrate an aftermarket stereo into select 2000-2005 Buick, Oldsmobile, and Pontiac vehicles without cutting the factory wiring. Please read all instructions carefully before beginning installation.
Safety Information
- Always disconnect the vehicle's negative battery terminal before performing any electrical work to prevent short circuits and electrical shock.
- Ensure all connections are secure and properly insulated to prevent electrical shorts.
- Consult a professional automotive technician if you are unsure about any part of the installation process.
- Wear appropriate personal protective equipment, such as safety glasses.
Package Contents
Verify that all components are present before beginning installation:
- 1x American International GWH346R Wiring Harness

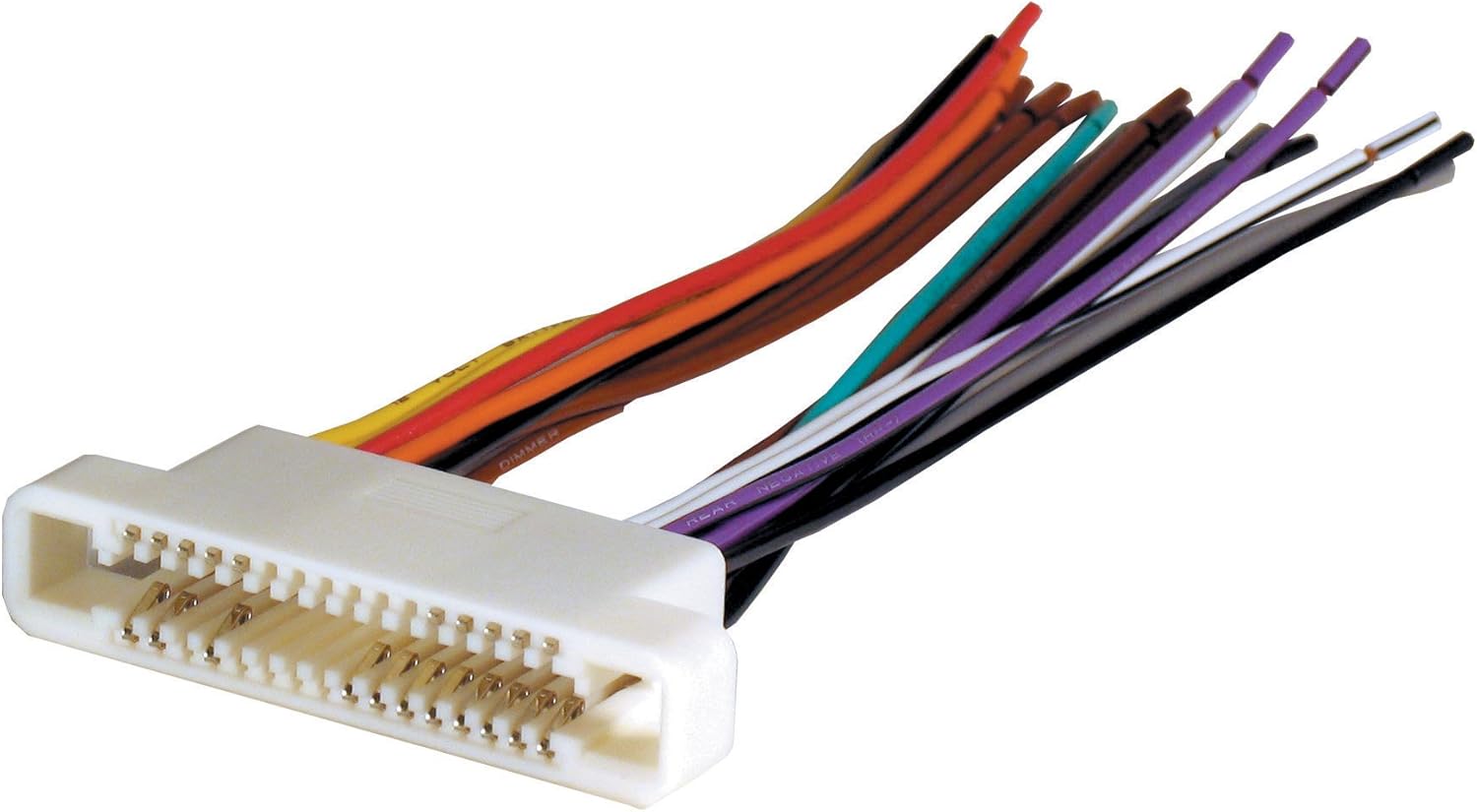

Image: The American International GWH346R Wiring Harness, featuring a white multi-pin connector with various colored wires extending from it. The wires are color-coded for different electrical functions within a vehicle's audio system.
Setup and Installation
Follow these steps for proper installation of the GWH346R wiring harness:
- Prepare the Vehicle: Disconnect the negative terminal of the vehicle's battery. Remove the factory radio from the dashboard, following your vehicle's specific service manual instructions.
- Identify Factory Connector: Locate the factory wiring harness connector that was plugged into the back of the original radio. The GWH346R harness is designed to plug directly into this connector.
- Wire Matching: Match the colored wires of the GWH346R harness to the corresponding wires of your aftermarket stereo's wiring harness. Common wire functions include:
- Yellow: 12V Constant Power
- Red: 12V Accessory/Switched Power
- Black: Ground
- Orange: Illumination/Dimmer
- Speaker Wires (e.g., White/White-Black, Gray/Gray-Black, Green/Green-Black, Purple/Purple-Black)
- Connect Harness: Plug the GWH346R harness into the vehicle's factory radio connector.
- Connect to Aftermarket Stereo: Plug the other end of the GWH346R harness (now connected to your aftermarket stereo's harness) into the back of your new aftermarket stereo.
- Test Functionality: Reconnect the vehicle's negative battery terminal. Turn on the vehicle and test the aftermarket stereo's functions (power, audio, balance, fade, illumination, etc.) before fully reassembling the dashboard.
- Reassemble: Once all functions are verified, carefully reinstall the aftermarket stereo and reassemble the dashboard components.
Operating
The GWH346R wiring harness facilitates the operation of your aftermarket stereo by providing the necessary power and speaker connections from the vehicle's factory wiring. Once installed, the operation of your stereo will be according to the stereo manufacturer's instructions. The harness itself does not require any specific operational steps beyond its initial installation.
Maintenance
The American International GWH346R Wiring Harness is designed for long-term reliability and typically requires no maintenance after proper installation. Ensure that all connections remain secure and free from moisture or excessive vibration. Periodically check for any signs of wear or damage to the wiring, especially if you experience intermittent electrical issues with your stereo.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Stereo does not power on. | Incorrect power wire connection (Yellow or Red). Blown fuse in vehicle or stereo. | Verify Yellow (constant 12V) and Red (switched 12V) wires are correctly connected and receiving power. Check vehicle and stereo fuses. |
| No sound from speakers. | Incorrect speaker wire connections. Stereo settings (mute/fade/balance). | Ensure all speaker wires are correctly matched and connected. Check stereo's audio settings. |
| Stereo loses memory presets. | Yellow (constant 12V) wire not connected or losing power. | Verify the Yellow wire connection and ensure it has continuous 12V power. |
| Illumination not working. | Orange (illumination) wire not connected or incorrect connection. | Check the Orange wire connection between the harness and stereo. |
Specifications
- Model: GWH346R
- Brand: American International
- Material: Copper wiring
- Compatibility: Select 2000-2005 Buick, Oldsmobile, and Pontiac vehicles (verify specific model compatibility with product listing or manufacturer).
- UPC: 163120496747
Warranty and Support
For warranty information and technical support, please refer to the official American International website or contact their customer service department. Keep your purchase receipt as proof of purchase for any warranty claims.
Contact Information: Please visit American International's official website for the most current support details.
