Introduction
This manual provides comprehensive instructions for the proper installation, operation, and maintenance of the Jones Stephens D70-100 Commercial Lavatory Grid Drain. Adhering to these guidelines will ensure optimal performance and extend the product's lifespan. Please read all instructions carefully before beginning installation.

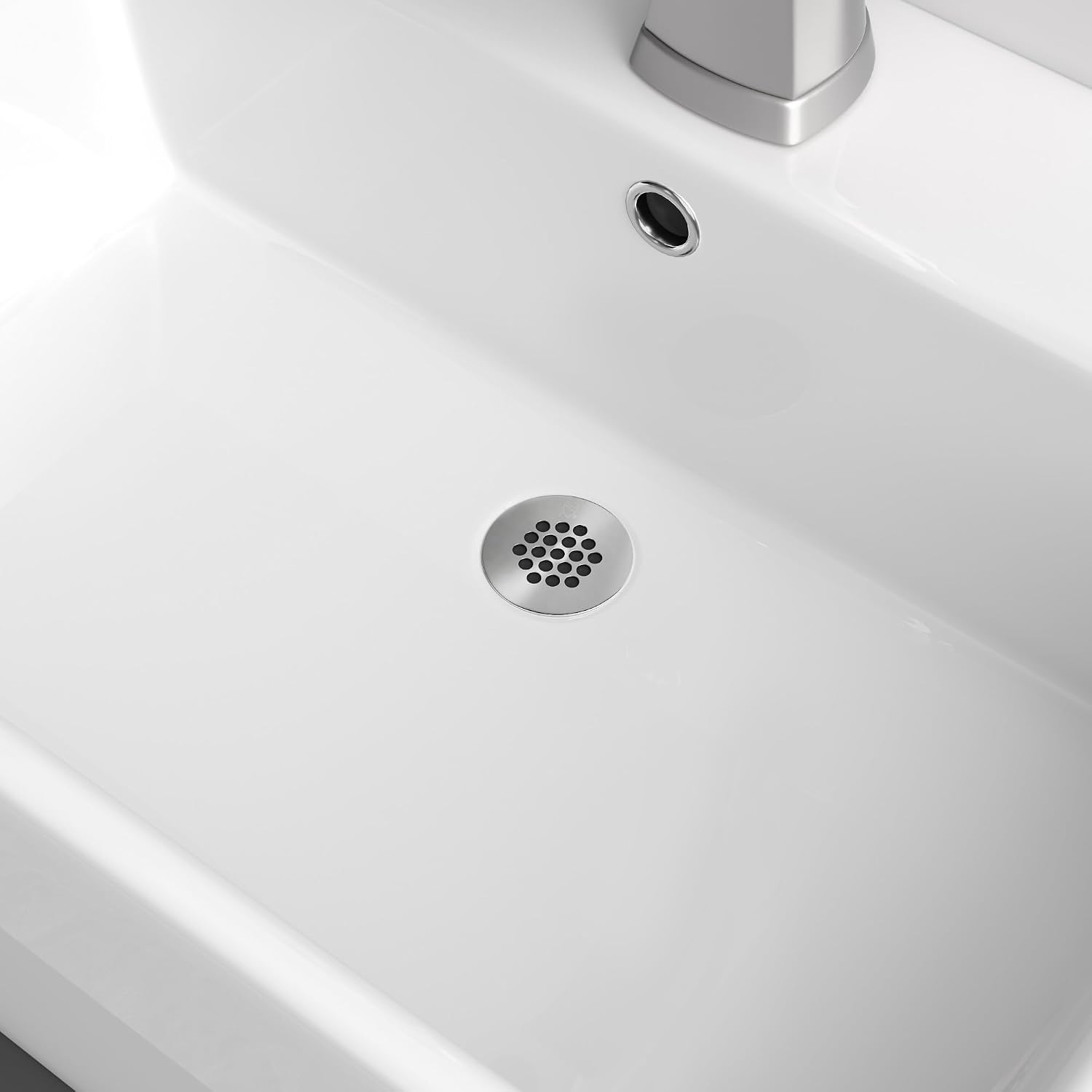

Image: The Jones Stephens D70-100 Commercial Lavatory Grid Drain shown installed in a standard white lavatory sink basin.
Product Overview
The Jones Stephens D70-100 is a commercial-grade lavatory grid drain designed for durability and efficient water drainage. It features a polished chrome-plated brass construction, ensuring resistance to corrosion and a clean aesthetic. The grid design prevents larger debris from entering the plumbing system while allowing water to flow freely.
Key Features:
- Polished chrome plated brass construction
- 1-1/4 inch x 6 inch tailpiece
- Includes Mack washer and brass locknut
- 17 gauge tailpiece for commercial applications
Image: A detailed view of the Jones Stephens D70-100 Commercial Lavatory Grid Drain, highlighting its chrome finish and grid design.
Installation Instructions
Follow these steps for proper installation of the D70-100 lavatory grid drain. Professional installation is recommended.
- Prepare the Sink Opening: Ensure the lavatory sink drain opening is clean and free of old sealant or debris.
- Apply Plumber's Putty: Roll a thin bead of plumber's putty and apply it around the underside of the drain flange (the top part of the drain that sits in the sink).
- Insert Drain into Sink: Place the drain flange with putty into the sink's drain opening from the top. Press firmly to create a seal.
- Install Washer and Locknut: From underneath the sink, slide the Mack washer onto the tailpiece, followed by the brass locknut.
- Tighten Securely: Hand-tighten the brass locknut, then use a basin wrench or appropriate tool to tighten it further until the drain is secure and the putty is squeezed out from under the flange. Do not overtighten.
- Connect Tailpiece: Connect the 1-1/4 inch x 6 inch tailpiece to the P-trap assembly. Ensure all connections are tight to prevent leaks.
- Test for Leaks: Run water into the sink and check all connections for any signs of leakage. Tighten as necessary.
Image: A side view of the Jones Stephens D70-100 Commercial Lavatory Grid Drain, showing the tailpiece, Mack washer, and brass locknut components.
Maintenance
Regular maintenance will help keep your Jones Stephens D70-100 Commercial Lavatory Grid Drain functioning correctly and looking new.
- Cleaning: Clean the drain regularly with a soft cloth and mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads, which can damage the chrome finish.
- Debris Removal: Periodically remove any accumulated hair or debris from the grid to maintain optimal drainage.
- Inspection: Routinely inspect the drain and connections for any signs of wear, corrosion, or leaks. Address any issues promptly.
Troubleshooting
If you encounter issues with your lavatory grid drain, consider the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow Drainage | Debris accumulation in the grid or P-trap. | Remove debris from the drain grid. Clean the P-trap if necessary. |
| Leaking at Connections | Loose connections or worn washers. | Tighten connections. Replace washers if they appear worn or damaged. |
| Corrosion on Finish | Exposure to harsh chemicals or abrasive cleaners. | Use only mild, non-abrasive cleaners. Regular cleaning can prevent buildup. |
Specifications
- Model Number: D70-100
- Product Dimensions: 4 x 4 x 10 inches
- Item Weight: 10.4 ounces
- Material: Polished chrome plated brass
- Tailpiece: 1-1/4 inch diameter, 6 inches long, 17 gauge
- Included Components: Grid drain, Mack washer, brass locknut
- Application: Commercial lavatory use
Warranty and Support
The Jones Stephens D70-100 Commercial Lavatory Grid Drain comes with a limited warranty. For specific details regarding warranty coverage, claims, or technical support, please contact Jones Stephens Corporation directly. You can find contact information on the official Jones Stephens website or through your product retailer.
