1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your American Bass DX-124 12-inch Car Audio Subwoofer. Please read this manual thoroughly before attempting installation or operation to ensure optimal performance and safety. Retain this manual for future reference.
2. Safety Information
- Always disconnect the vehicle's battery negative terminal before beginning any electrical work.
- Ensure all wiring is properly insulated and secured to prevent short circuits and damage.
- Avoid installing the subwoofer in locations where it may obstruct vehicle operation or safety devices.
- Use appropriate gauge wiring for power and speaker connections to handle the subwoofer's power requirements.
- Consult a professional car audio installer if you are unsure about any aspect of the installation process.
- Do not expose the subwoofer to excessive moisture or extreme temperatures.
3. Package Contents
Verify that all items are present in your package:
- American Bass DX-124 12-inch Subwoofer
- VFL 1900.1 Amp (if included as part of a bundle)
4. Setup and Installation
Proper installation is crucial for the performance and longevity of your subwoofer. It is recommended to have this unit installed by a qualified car audio technician.
4.1 Mounting the Subwoofer
The DX-124 subwoofer is designed for car mount applications. Select a sturdy, secure location within your vehicle, typically in a sealed or ported enclosure. Ensure adequate clearance for the subwoofer's excursion and proper ventilation for the voice coil cooling system.

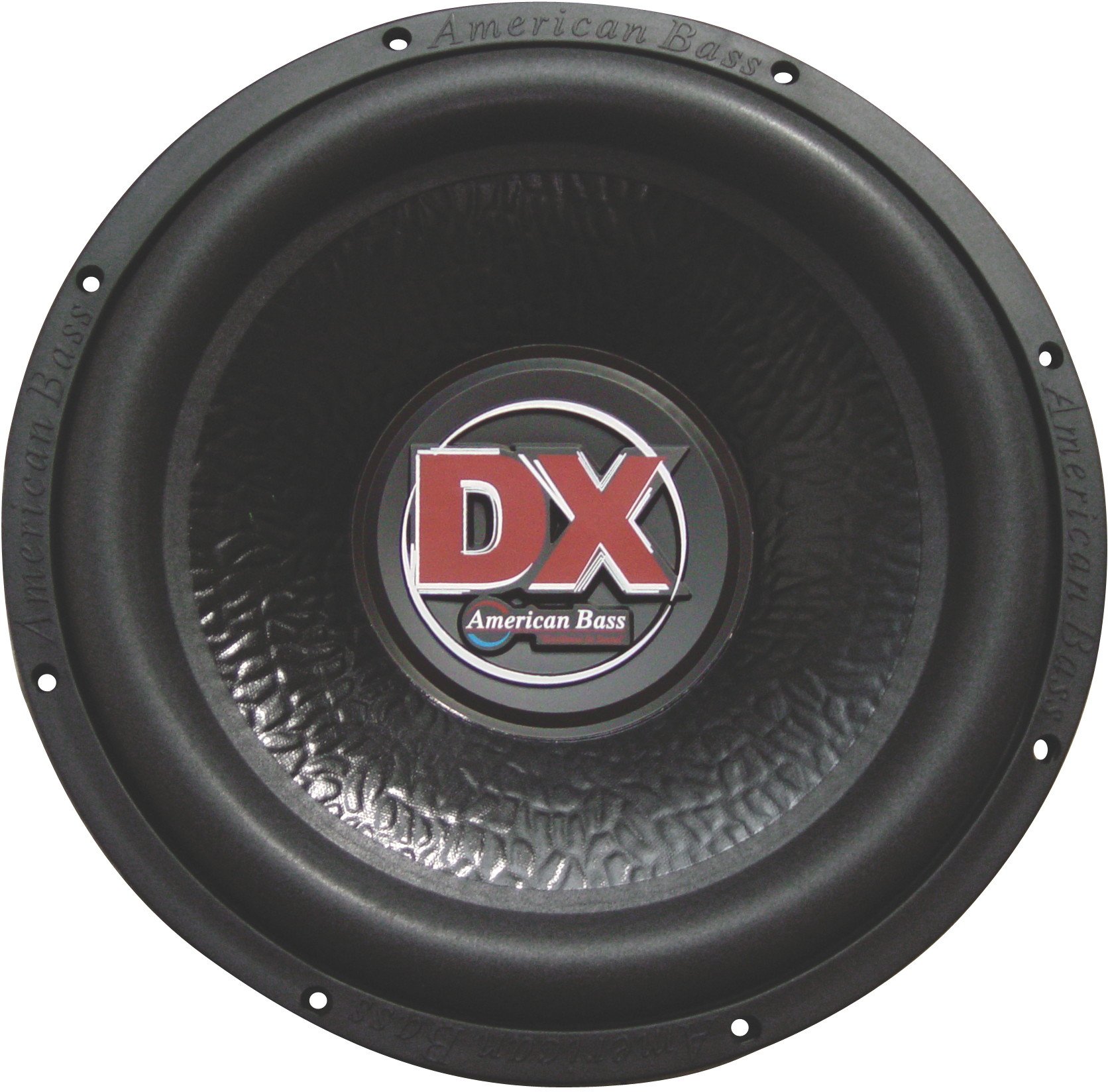

Image 1: Front view of the American Bass DX-124 subwoofer, showcasing the cone and surround.
4.2 Wiring Connections
The DX-124 features chrome push terminals for secure speaker wire connections. This subwoofer has a 4 Ohm impedance and a 2-inch 4-layer high-temperature voice coil. Ensure your amplifier is stable at 4 Ohms and can provide sufficient power (up to 250W RMS, 600W Max) to the subwoofer.
- Connect the positive (+) terminal of the subwoofer to the positive (+) output of your amplifier.
- Connect the negative (-) terminal of the subwoofer to the negative (-) output of your amplifier.
- Use high-quality speaker wire of appropriate gauge to minimize power loss and ensure optimal sound quality.
Image 2: Rear view of the American Bass DX-124 subwoofer, showing the magnet structure and chrome push terminals for wiring.
4.3 Enclosure Design
The performance of your subwoofer is highly dependent on the enclosure it is installed in. Consult with a car audio specialist or refer to recommended enclosure specifications for the DX-124 to achieve the best acoustic results. The thick stamped basket with perimeter vents aids in voice coil cooling, contributing to the subwoofer's durability.
5. Operating Instructions
Once installed, follow these guidelines for operating your subwoofer system:
- Amplifier Gain Setting: Start with the amplifier gain set to minimum. Gradually increase the gain until the desired volume is achieved without distortion.
- Crossover Settings: Use your amplifier's or head unit's low-pass filter (LPF) to send only low frequencies to the subwoofer. A typical LPF setting for subwoofers is between 80Hz and 120Hz.
- Bass Boost: The DX-124 system may feature a bass boost function. Use this feature sparingly and with caution to avoid overdriving the subwoofer and amplifier, which can lead to damage.
- Voice Control: If your car audio system supports voice control for audio settings, you may be able to adjust certain parameters through voice commands. Refer to your head unit's manual for details.
- Break-in Period: Allow a break-in period of several hours of moderate listening before operating the subwoofer at high volumes. This allows the suspension components to loosen up, improving performance and longevity.
6. Maintenance
Regular maintenance helps ensure the longevity and performance of your subwoofer:
- Cleaning: Use a soft, dry cloth to clean the subwoofer cone and surround. Avoid using harsh chemicals or excessive moisture.
- Inspection: Periodically check all wiring connections for tightness and corrosion. Inspect the subwoofer surround and cone for any signs of damage or wear.
- Ventilation: Ensure that the subwoofer's basket perimeter vents are not obstructed to allow for proper voice coil cooling.
7. Troubleshooting
If you experience issues with your DX-124 subwoofer, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound from subwoofer |
|
|
| Distorted or unclear bass |
|
|
| Subwoofer cuts out intermittently |
|
|
8. Specifications
| Model Name | DX-124 |
| Brand | American Bass (AB Soft) |
| Subwoofer Diameter | 12 Inches |
| Speaker Maximum Output Power | 600 Watts (Peak) |
| RMS Power Handling | 250 Watts |
| Impedance | 4 Ohms |
| Magnet Weight | 60 oz |
| Voice Coil | 2-inch 4-layer Hi-Temp |
| Sensitivity | 88.2 dB |
| Cone Material | Coated Light and Rigid Non-Pressed Paper |
| Surround Material | 1.4-inch Wide Multi-Layer Foam |
| Basket Design | Thick Stamped Basket with Perimeter Vents (Black Powder Coated) |
| T-Yoke Design | 1-PC Tech T-Yoke with Bottom Out Free Design |
| Terminals | Chrome Push Terminals |
| Enclosure Material | Metal |
| Connectivity Technology | Wired |
| Additional Features | Bass Boost |
| Item Weight | 12 Pounds |
9. Warranty and Support
9.1 Warranty Information
The American Bass DX-124 Subwoofer comes with a Limited 1 Year Warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, abuse, accident, or unauthorized modifications.
9.2 Customer Support
For technical assistance, warranty inquiries, or further information regarding your American Bass DX-124 subwoofer, please contact your authorized dealer or visit the official American Bass website for support resources.
