American Bass HD-12-D2 12-inch Subwoofer User Manual

Introduction

Thank you for choosing the American Bass HD-12-D2 12-inch subwoofer. This manual provides essential information for the proper installation, operation, and maintenance of your subwoofer to ensure optimal performance and longevity. Please read this manual thoroughly before attempting installation or operation.

Safety Information

• Always disconnect the vehicle's battery before performing any electrical work.
• Ensure all wiring connections are secure and properly insulated to prevent short circuits.
• Avoid exposing the subwoofer to excessive moisture or extreme temperatures.
• Do not operate the subwoofer beyond its rated power handling capabilities to prevent damage.
• Consult a professional installer if you are unsure about any part of the installation process.

Product Features

• Heavy-duty hi-excursion design die cast basket.
• Strong carbon-Kevlar reinforced nonpress paper cone.
• NT multilayer high density foam surround.
• 3-inch high-temperature voice coil with long windings.
• Triple-stacked 300-ounce high-energy magnets.
• Uni-rubber gasket and rubber magnet boot.
• Cooling pump motor design.
• Multi-pieces of new COMEX spiders.
• 1-piece tech T-yoke with high-extended pole piece.
• 10AWG power cable for robust connections.

Setup and Installation

1. Unpacking

Carefully remove the subwoofer from its packaging. Inspect the unit for any signs of damage that may have occurred during shipping. If damage is found, contact your dealer immediately.

Image: The American Bass HD-12-D2 subwoofer packaging box, showing the brand logo and model number.

2. Enclosure Selection

The performance of your subwoofer is highly dependent on the enclosure it is mounted in. For optimal sound quality and power handling, it is recommended to use a properly designed sealed or ported enclosure. Consult with a car audio specialist or refer to American Bass's recommended enclosure specifications for the HD-12-D2 model.

3. Mounting

The HD-12-D2 is designed for flush mounting. Ensure the mounting surface is sturdy and free from obstructions. Cut a circular opening of the appropriate diameter (refer to specifications) and secure the subwoofer using screws through the mounting holes on the basket flange. Use the uni-rubber gasket to ensure a tight seal.

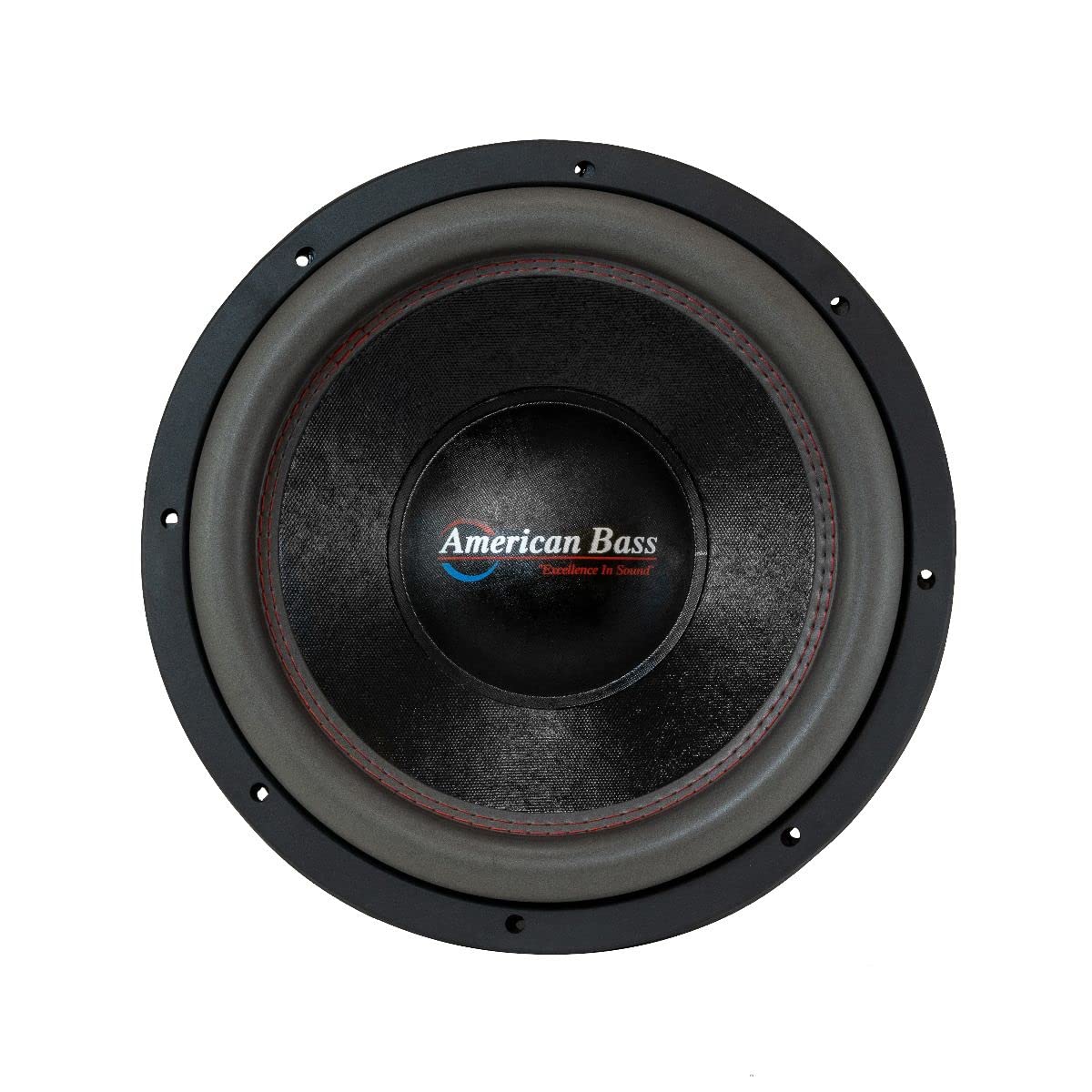

Image: Front view of the American Bass HD-12-D2 subwoofer, showcasing the cone, surround, and basket design.

4. Wiring

The HD-12-D2 features a Dual 2 Ohm voice coil configuration. Proper wiring is crucial for matching the subwoofer's impedance to your amplifier's output for maximum power transfer and stability. Refer to the diagrams below for common wiring configurations. Always use high-quality 10AWG power cable for connections.

Image: Rear view of the American Bass HD-12-D2 subwoofer, showing the magnet structure, voice coil terminals, and cooling vents.

Single Subwoofer Wiring Options:

• Parallel Wiring (1 Ohm Load): Connect the positive terminals of both voice coils together and to the amplifier's positive output. Connect the negative terminals of both voice coils together and to the amplifier's negative output. This configuration presents a 1 Ohm load to the amplifier.
• Series Wiring (4 Ohm Load): Connect the positive terminal of one voice coil to the negative terminal of the other voice coil. Connect the remaining positive terminal to the amplifier's positive output and the remaining negative terminal to the amplifier's negative output. This configuration presents a 4 Ohm load to the amplifier.

Note: Always ensure your amplifier is stable at the chosen impedance load. Incorrect impedance matching can lead to amplifier damage or poor performance.

Operating Instructions

1. Amplifier Gain Setting

Set your amplifier's gain control carefully. Start with the gain at its minimum setting. Gradually increase the gain until you achieve the desired volume without any audible distortion. Overdriving the subwoofer with a distorted signal can cause permanent damage.

2. Crossover Settings

Utilize your amplifier's or head unit's low-pass filter (LPF) to send only low frequencies to the subwoofer. A typical LPF setting for a 12-inch subwoofer ranges from 60Hz to 100Hz. Experiment with settings to find the best blend with your main speakers.

3. Break-in Period

Allow a break-in period of approximately 20-30 hours of normal listening before operating the subwoofer at high volumes. This allows the suspension components (surround and spider) to loosen up and reach their optimal performance characteristics.

4. Power Handling

The American Bass HD-12-D2 is designed to handle significant power. While rated for 4000W peak, continuous RMS power should be carefully managed. Ensure your amplifier's RMS output matches the subwoofer's RMS rating to prevent damage. Listen for signs of distortion or overheating.

Maintenance

• Cleaning: Use a soft, dry cloth to wipe down the subwoofer cone and surround. Avoid using harsh chemicals or excessive moisture.
• Inspection: Periodically check all wiring connections for tightness and corrosion. Inspect the subwoofer's surround and cone for any tears or damage.
• Environment: Ensure the subwoofer is installed in a location that is protected from direct sunlight, extreme temperatures, and moisture.

Troubleshooting

Specifications

• Model: HD-12-D2
• Speaker Size: 12 Inches
• Voice Coil: Dual 2 Ohm
• Peak Power Handling: Up to 4000 Watts
• Magnet Weight: Triple-stacked 300 oz
• Voice Coil Diameter: 3 inches
• Cone Material: Carbon-Kevlar reinforced nonpress paper
• Surround Material: NT multilayer high density foam
• Basket Type: Heavy-duty hi-excursion die cast
• Mounting Type: Flush Mount
• Recommended Power Cable: 10AWG

Warranty and Support

American Bass products are designed and manufactured to the highest quality standards. This product comes with a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official American Bass website.

For technical support or service inquiries, please contact your authorized American Bass dealer or the manufacturer directly. Keep your purchase receipt as proof of purchase for warranty claims.

Manufacturer: American Bass

Model Number: HD12D2
