ABUS 130/180 Granit Hasp Instruction Manual

Product Overview

The ABUS 130/180 Granit Hasp is engineered for high-security applications, providing robust protection for cabinets, chests, doors, and toolboxes. Constructed from malleable iron, it offers maximum resistance against physical attacks and forced entry. This hasp features concealed screws for enhanced security and is compatible with various types of padlocks.

Key features include:

• Malleable iron staples and hinge pins for superior protection.
• Concealed screws to prevent tampering.
• Compatibility with multiple lock types.
• Includes six flat-head bolts (8mm x 90mm) and two backing plates for installation.

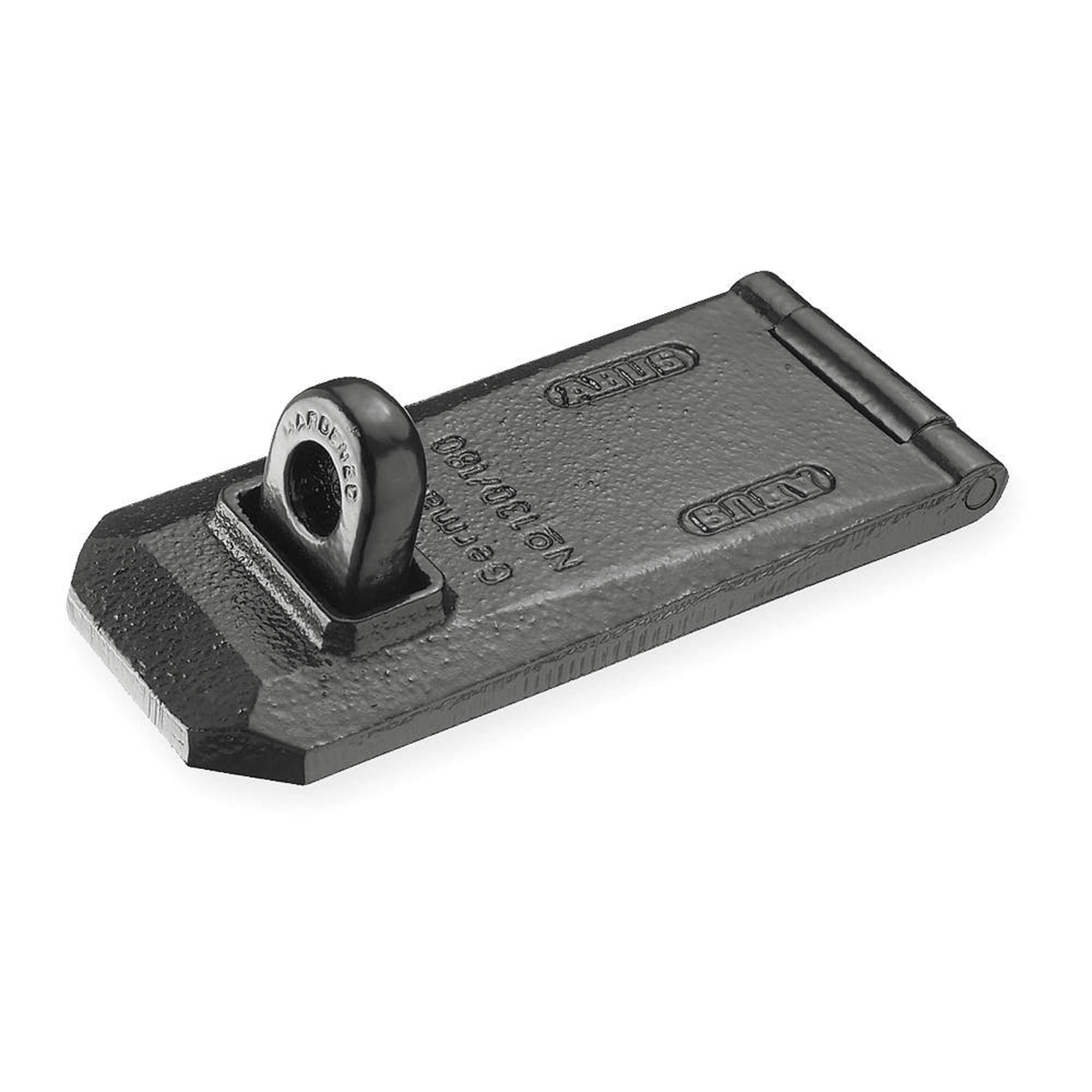

Image: Front view of the ABUS 130/180 Granit Hasp, showcasing its robust design.

Installation Instructions

Before installation, ensure the mounting surface is strong enough to support the hasp and resist forced entry. The hasp is designed for surface mounting on doors, gates, or other secure points.

Included Hardware: The package contains six flat-head bolts (8mm x 90mm) and two backing plates. For certain applications, such as mounting through thick materials like a 2x4, longer bolts may be required and should be sourced separately to ensure adequate penetration and security.

Mounting Steps:

1. Position the Hasp: Determine the optimal placement for the hasp on your door/gate and its corresponding frame. Ensure proper alignment when the door/gate is in the closed position.
2. Mark Drill Points: Use the hasp components as a guide to accurately mark the drilling locations for the bolts. It is recommended to carefully measure and mark rather than relying solely on the hasp as a template, as no official template is provided.
3. Drill Pilot Holes: Drill appropriate pilot holes for the 8mm bolts. Ensure holes are straight and clean to facilitate secure fastening.
4. Secure the Hasp: Attach the hasp components using the provided flat-head bolts and backing plates. Tighten all bolts securely to prevent loosening and ensure maximum resistance against tampering.

Image: Technical drawing illustrating the dimensions and components of the ABUS 130/180 Granit Hasp.

Operating Instructions

The ABUS 130/180 Granit Hasp functions by securing a movable staple through a fixed eye, which is then locked with a padlock. Ensure the padlock shackle fits through the hasp's staple hole for proper operation.

1. Close the Object: Ensure the door, gate, or object to be secured is fully closed and aligned.
2. Align Hasp Components: Position the movable hasp arm so that its staple aligns precisely with the fixed eye on the other surface.
3. Insert Padlock: Insert a compatible padlock through the aligned staple hole and secure it. The hasp is designed to accommodate various padlock types, including high-security ABUS Granit padlocks like the 37/80.

Maintenance

To ensure the longevity and optimal performance of your ABUS 130/180 Granit Hasp, adhere to these maintenance guidelines:

• Regular Cleaning: Periodically clean the hasp with a damp cloth to remove accumulated dirt and debris. Avoid using abrasive cleaners that could damage the finish.
• Lubrication: Apply a light, non-greasy lubricant to the hinge pins annually, or more frequently if the hasp is exposed to harsh environmental conditions, to ensure smooth operation.
• Inspection: Regularly inspect the hasp and all mounting bolts for any signs of wear, damage, or loosening. Tighten any loose bolts immediately to maintain security.
• Rust Prevention: While constructed from durable malleable iron, prolonged exposure to moisture can lead to surface rust. Consider applying a rust-inhibiting coating or paint suitable for metal if the hasp is installed in an exposed outdoor environment.

Troubleshooting

This section addresses common issues you might encounter with your ABUS 130/180 Granit Hasp.

• Hasp difficult to close or align:
  • Check for any physical obstructions between the door/object and the frame.
  • Verify that the hasp components are securely mounted and have not shifted over time.
  • Ensure the door/object itself is properly aligned and not sagging on its hinges.
• Padlock does not fit:
  • Confirm the padlock shackle diameter is compatible with the hasp's staple hole. The hole diameter is approximately 35/64 inch.
• Signs of surface rust:
  • Clean the affected area with a wire brush or a suitable rust remover.
  • Apply a protective coating or paint designed for metal to prevent further corrosion, especially in outdoor settings.

Specifications

Warranty and Support

Manufacturer Warranty: ABUS products are warranted for a specific period from the date of purchase against manufacturing defects. If an ABUS product fails to work properly due to a manufacturing defect, return it to ABUS postage prepaid, and it will be repaired or replaced at their discretion.

To Obtain Warranty Service: Please call 1-800-352-2287 or return the product prepaid along with the original receipt of purchase and all parts and keys (if applicable) to:

Specific warranty periods are detailed on the product packaging.

For additional support or inquiries, please visit the official ABUS website or contact their customer service department.
