1. Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Hampton Bay 837 292 2-Light Brushed Nickel Bath Light. Please read all instructions carefully before beginning installation and retain this manual for future reference.
The Hampton Bay 837 292 is a 2-light brushed nickel bath light designed for bathroom environments, featuring a contemporary style and glass shades.
2. Safety Information
WARNING: RISK OF ELECTRIC SHOCK. Disconnect power at the fuse box or circuit breaker before installation or servicing.
- All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Contact a qualified electrician if you are unfamiliar with proper electrical wiring connections.
- This fixture is intended for indoor use only.
- Ensure the mounting surface is structurally sound and can support the weight of the fixture.
- Do not exceed the maximum wattage specified for the bulbs.
- Handle glass components with care to prevent breakage.
3. Package Contents
Verify that all parts listed below are included in your package. If any part is missing or damaged, do not attempt to assemble or install the product. Contact customer service for assistance.
- Light Fixture Assembly (Model 837 292)
- Glass Shades (2)
- Mounting Hardware Kit (screws, wire nuts, mounting plate)
- Instruction Manual

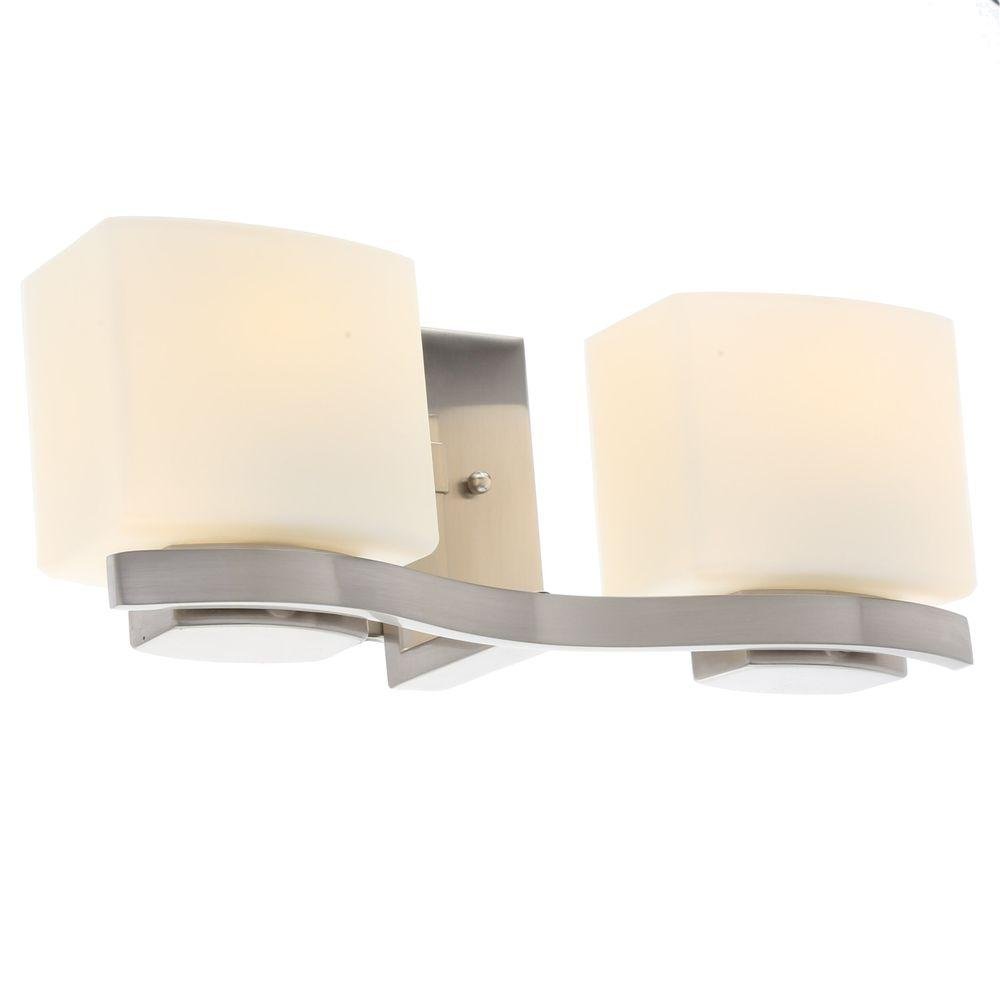

Image 1: Hampton Bay 837 292 2-Light Brushed Nickel Bath Light with two frosted glass shades and a brushed nickel finish.
4. Setup and Installation
Before installation, ensure you have the necessary tools (screwdriver, wire strippers, electrical tape, safety glasses) and that the power supply is turned off at the circuit breaker.
- Turn Off Power: Locate the circuit breaker or fuse box that supplies power to the light fixture location and turn off the power. Verify power is off using a voltage tester.
- Prepare Mounting: Remove the old fixture if applicable. Attach the mounting plate to the junction box using the provided screws. Ensure the mounting plate is securely fastened.
- Make Electrical Connections: Connect the fixture's black wire to the house's black (hot) wire, the fixture's white wire to the house's white (neutral) wire, and the fixture's ground wire to the house's ground wire (or junction box ground screw). Secure connections with wire nuts and electrical tape.
- Mount the Fixture: Carefully align the fixture with the mounting plate and secure it with the decorative nuts or screws provided.
- Install Glass Shades: Gently place the glass shades onto the fixture according to the design.
- Install Bulbs: Insert the recommended type and wattage bulbs (not included) into the sockets. Do not exceed 100 watts per bulb.
- Restore Power: Turn the power back on at the circuit breaker and test the fixture.
5. Operating Instructions
The Hampton Bay 837 292 bath light operates via a standard wall switch (not included). Once installed and powered, simply toggle the wall switch to turn the light fixture on or off.
6. Maintenance
- Cleaning: To clean the fixture, ensure power is off. Wipe with a soft, dry cloth. Do not use abrasive cleaners or solvents as they may damage the finish or glass.
- Bulb Replacement: Turn off power at the circuit breaker before replacing bulbs. Allow bulbs to cool completely. Unscrew old bulbs and replace with new ones of the same type and wattage (max 100W).
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the fixture. | Check circuit breaker or fuse. Ensure wall switch is on. |
| Loose wire connections. | Turn off power and check all wire connections. Tighten if necessary. | |
| Faulty bulb. | Replace bulb with a new one. | |
| Light flickers. | Loose bulb or wiring. | Tighten bulb. Turn off power and check wire connections. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Hampton Bay |
| Model Number | 837 292 |
| UPC | 718212250891 |
| Color | Nickel |
| Material | Glass, Metal (Brushed Nickel Finish) |
| Style | Contemporary |
| Room Type | Bathroom |
| Power Source | Corded Electric |
| Number of Light Sources | 2 |
| Voltage | 120 Volts |
| Max Wattage per Bulb | 100 watts |
| Mounting Type | Wall Mount (inferred from vanity light) |
| Item Weight | 5.5 Pounds |
| Product Dimensions | 10 x 12 x 14 inches (L x W x H) |
| Manufacturer | The Home Depot |
9. Warranty and Support
This product is manufactured by The Home Depot. For warranty information or technical support, please refer to the terms provided at the point of purchase or contact The Home Depot customer service. The provided warranty description states "Na.", indicating specific warranty details should be obtained from the retailer or manufacturer directly.
