1. Product Overview
The Alto-Shaam BU-3105 is a high-quality steatite ceramic bushing designed for various industrial applications. Steatite ceramic is known for its excellent electrical insulation properties, high mechanical strength, and resistance to high temperatures. This bushing serves to insulate electrical conductors, provide mechanical support, and maintain proper spacing within an assembly.
This manual provides essential information for the safe and effective handling, installation, operation, and maintenance of your BU-3105 bushing.

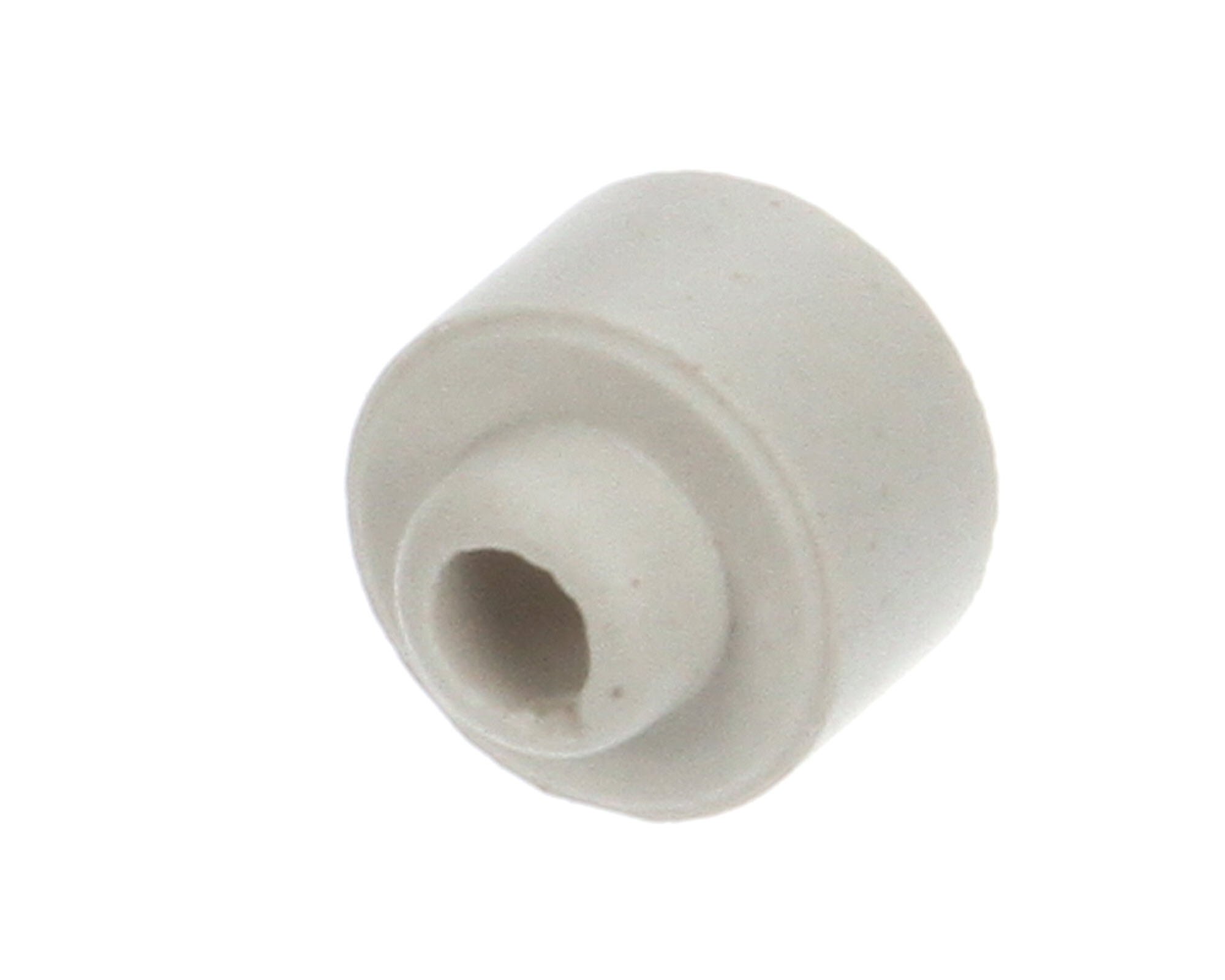

Figure 1: Alto-Shaam BU-3105 Steatite Ceramic Bushing. This image displays the ceramic bushing, typically cylindrical or conical in shape, with a central bore for a conductor.
2. Safety Information
Please read and understand all safety instructions before handling or installing the BU-3105 bushing. Failure to follow these instructions may result in personal injury or damage to equipment.
- Handling: Ceramic materials can be brittle. Handle the bushing with care to prevent chipping or breakage. Avoid dropping or subjecting it to sudden impacts.
- Personal Protective Equipment (PPE): Wear appropriate PPE, such as safety glasses and gloves, when handling ceramic components to protect against sharp edges or dust.
- Electrical Safety: If the bushing is used in an electrical application, ensure all power is disconnected and locked out before installation or maintenance. Follow all relevant electrical safety procedures.
- Installation Environment: Ensure the installation area is clean, dry, and free from obstructions.
3. Specifications
| Attribute | Value |
|---|---|
| Model Number | BU-3105 |
| Material | Steatite Ceramic |
| Manufacturer | Alto-Shaam |
| Item Weight | 1 pound (approximate) |
| National Stock Number (NSN) | 3120-01-282-0403 |
| ASIN | B009EC5KGE |
4. Installation
Proper installation is crucial for the optimal performance and longevity of the BU-3105 bushing. Refer to the specific equipment manufacturer's instructions for detailed assembly procedures.
- Preparation: Ensure the mounting surface or housing is clean, dry, and free from debris. Verify that the dimensions of the bushing match the intended mounting hole.
- Placement: Carefully insert the bushing into its designated position. Avoid using excessive force, which could crack or damage the ceramic.
- Securing: If applicable, secure the bushing using appropriate fasteners or adhesives as specified by the equipment design. Ensure a snug fit without over-tightening.
- Verification: After installation, visually inspect the bushing for any signs of damage, misalignment, or improper seating.
5. Operation
The Alto-Shaam BU-3105 steatite ceramic bushing is a passive component. Its operation is defined by its role within the larger assembly or system it is integrated into. It functions primarily as an electrical insulator, preventing current leakage between conductors and surrounding components, and as a mechanical spacer or support. Once correctly installed, it requires no active 'operation' from the user.
Ensure that the operating conditions (temperature, voltage, mechanical stress) of the system do not exceed the material limits of steatite ceramic to maintain its integrity and performance.
6. Maintenance
The BU-3105 bushing is designed for durability and typically requires minimal maintenance. Regular inspection is recommended to ensure continued performance.
- Inspection: Periodically inspect the bushing for any signs of cracks, chips, discoloration, or wear. Pay close attention to areas exposed to high stress or temperature fluctuations.
- Cleaning: If necessary, clean the surface of the bushing with a soft, dry cloth. For stubborn dirt, a mild, non-abrasive cleaner can be used, followed by thorough drying. Ensure no moisture remains, especially in electrical applications.
- Replacement: If any damage is observed, or if the bushing shows signs of degradation that could compromise its function, replace it immediately with an authentic Alto-Shaam BU-3105 part.
7. Troubleshooting
As a passive component, troubleshooting for the BU-3105 bushing primarily involves identifying physical damage or improper installation.
- Issue: Bushing appears loose or wobbly after installation.
- Solution: Re-check installation. Ensure proper fit and that any securing mechanisms are correctly applied. The mounting hole might be oversized, requiring a different bushing or adapter.
- Issue: Visible cracks or chips on the bushing.
- Solution: Replace the bushing immediately. Damaged ceramic can compromise electrical insulation and mechanical integrity.
- Issue: Electrical arcing or insulation breakdown around the bushing.
- Solution: Disconnect power immediately. Inspect the bushing for damage or contamination. Ensure the bushing's voltage rating is appropriate for the application. Consult a qualified electrician.
8. Storage
Store the BU-3105 bushings in their original packaging or in a protective container to prevent damage. Keep them in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid environments with high humidity or corrosive chemicals.
9. Disposal
Steatite ceramic is an inert material. When disposing of the BU-3105 bushing, follow local regulations for industrial waste. Ceramic materials are generally safe for landfill disposal, but recycling options may be available in some areas.
10. Warranty and Support
Alto-Shaam products are manufactured to high standards. This BU-3105 bushing is covered by a standard manufacturer's warranty against defects in materials and workmanship under normal use and service. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact Alto-Shaam customer support.
For technical assistance, replacement parts, or any inquiries regarding your Alto-Shaam BU-3105 bushing, please contact Alto-Shaam customer service through their official website or authorized distributors.
