1. Introduction
This instruction manual provides essential information for the safe and effective use of the Yato YT-37164 Tile Cutting Pliers. Please read this manual thoroughly before operation and retain it for future reference.
The Yato YT-37164 is a 200 mm tile cutting plier designed for precise cutting of ceramic tiles. It features plastic-coated, rubberized handles for comfortable grip and a carbide tungsten cutting edge (YG-6X hardness) for durability.
2. Safety Instructions
- Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when operating the pliers.
- Ensure the workpiece (tile) is stable and secured before cutting to prevent slippage and injury.
- Keep hands and fingers away from the cutting jaws during operation.
- Do not use the pliers for purposes other than cutting ceramic tiles.
- Store the pliers in a dry, safe place, out of reach of children.
- Inspect the pliers for any damage before each use. Do not use if damaged.
3. Product Overview
The Yato YT-37164 tile cutting pliers are designed for efficient and clean cuts on various ceramic tiles. Key features include:
- Length: 200 mm
- Handle Surface: Plastic-coated, rubberized for enhanced grip and comfort.
- Hardness (Rockwell): YG-6X, indicating high durability of the cutting edge.
- Material: Tungsten Carbide cutting edge.
Figure 1: Yato YT-37164 Tile Cutting Pliers. This image shows the overall design of the pliers, highlighting the ergonomic handles and the cutting head.
Figure 2: Close-up view of the Yato YT-37164 pliers' cutting head, showing the robust construction and spring mechanism.

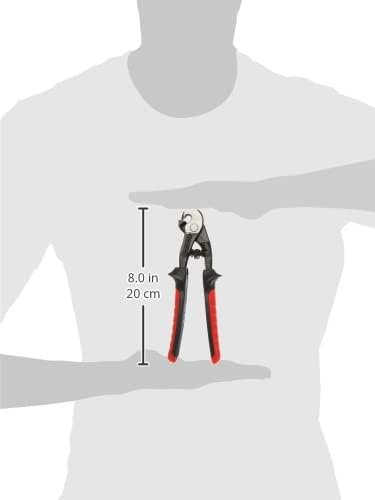

Figure 3: Yato YT-37164 Pliers demonstrating its 200mm (8 inch) length.
4. Setup
The Yato YT-37164 Tile Cutting Pliers are ready for use directly out of the blister pack. No assembly is required.
- Remove the pliers from the packaging.
- Inspect the cutting jaws and handles for any signs of damage or manufacturing defects.
- Ensure the spring mechanism operates smoothly, allowing the jaws to open and close freely.
5. Operating Instructions
Follow these steps for effective tile cutting:
- Prepare the Tile: Mark the desired cutting line on the tile using a pencil or marker. For best results, score the tile along the line with a tile cutter or scoring tool before using the pliers. This helps achieve a cleaner break.
- Position the Pliers: Place the jaws of the pliers over the tile, aligning the cutting edge with the scored line. The flat part of the jaw should be on the top surface of the tile, and the curved part underneath.
- Apply Pressure: Apply steady, even pressure to the handles of the pliers. The carbide tungsten jaws will exert force on the tile, causing it to snap along the scored line.
- Clean the Cut: After cutting, inspect the edges of the tile. Minor rough edges can be smoothed using a tile file or sandpaper.
Video 1: Demonstration of tile cutting using similar pliers. This video illustrates the technique of scoring and snapping tiles, which is applicable to the Yato YT-37164 pliers.
6. Maintenance
- Cleaning: After each use, wipe the pliers clean of any tile dust or debris using a dry cloth.
- Lubrication: Periodically apply a light oil to the pivot points and spring mechanism to ensure smooth operation and prevent rust.
- Storage: Store the pliers in a dry environment to prevent corrosion.
- Inspection: Regularly check the cutting jaws for wear or damage. While the carbide tungsten is durable, excessive force or improper use can cause chipping.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Uneven or jagged cuts | Tile not properly scored; insufficient or uneven pressure; worn cutting jaws. | Ensure tile is deeply and evenly scored. Apply steady, even pressure. If jaws are worn, consider replacement. |
| Pliers feel stiff or difficult to operate | Lack of lubrication; dirt/debris in mechanism. | Clean the pliers and apply a light lubricant to pivot points and spring. |
| Tile shatters instead of snapping cleanly | Incorrect scoring technique; tile type not suitable for manual cutting; excessive force. | Ensure proper scoring. Some very hard or thick tiles may require a wet saw. Apply controlled pressure. |
8. Specifications
- Brand: Yato
- Model Number: YT-37164
- Length: 200 mm
- Material: Tungsten Carbide (cutting edge), Rubber (handle)
- Hardness: YG-6X (Rockwell)
- Weight: 289 grams
- Color: Black, Red
- Intended Use: Tile Cutting
9. Warranty and Support
For warranty information or technical support regarding your Yato YT-37164 Tile Cutting Pliers, please refer to the manufacturer's official website or contact your point of purchase. Keep your proof of purchase for warranty claims.
