Emerson 1542C Motor Instruction Manual

1. Introduction

Thank you for choosing the Emerson 1542C Motor. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your motor. Please read this manual thoroughly before attempting to install or operate the motor. Keep this manual for future reference.

2. Safety Information

WARNING: Failure to follow these safety instructions could result in serious injury, death, or property damage.

• Always disconnect power before installing, servicing, or cleaning the motor.
• Installation and wiring must be performed by a qualified electrician in accordance with all local and national electrical codes.
• Ensure proper grounding to prevent electrical shock.
• Keep hands, hair, and clothing away from moving parts during operation.
• Do not operate the motor in wet or damp conditions unless it is specifically rated for such environments.
• Use appropriate personal protective equipment (PPE) such as safety glasses and gloves.
• Ensure the motor is securely mounted to prevent vibration and movement during operation.

3. Package Contents

Verify that all items are present and undamaged upon unpacking. If any items are missing or damaged, contact your supplier immediately.

• Emerson 1542C Motor
• Instruction Manual (this document)

4. Product Overview

The Emerson 1542C is a robust motor designed for various applications, often found in refrigeration or HVAC systems. It is manufactured by US Motors, a division of Nidec, ensuring quality and reliability.

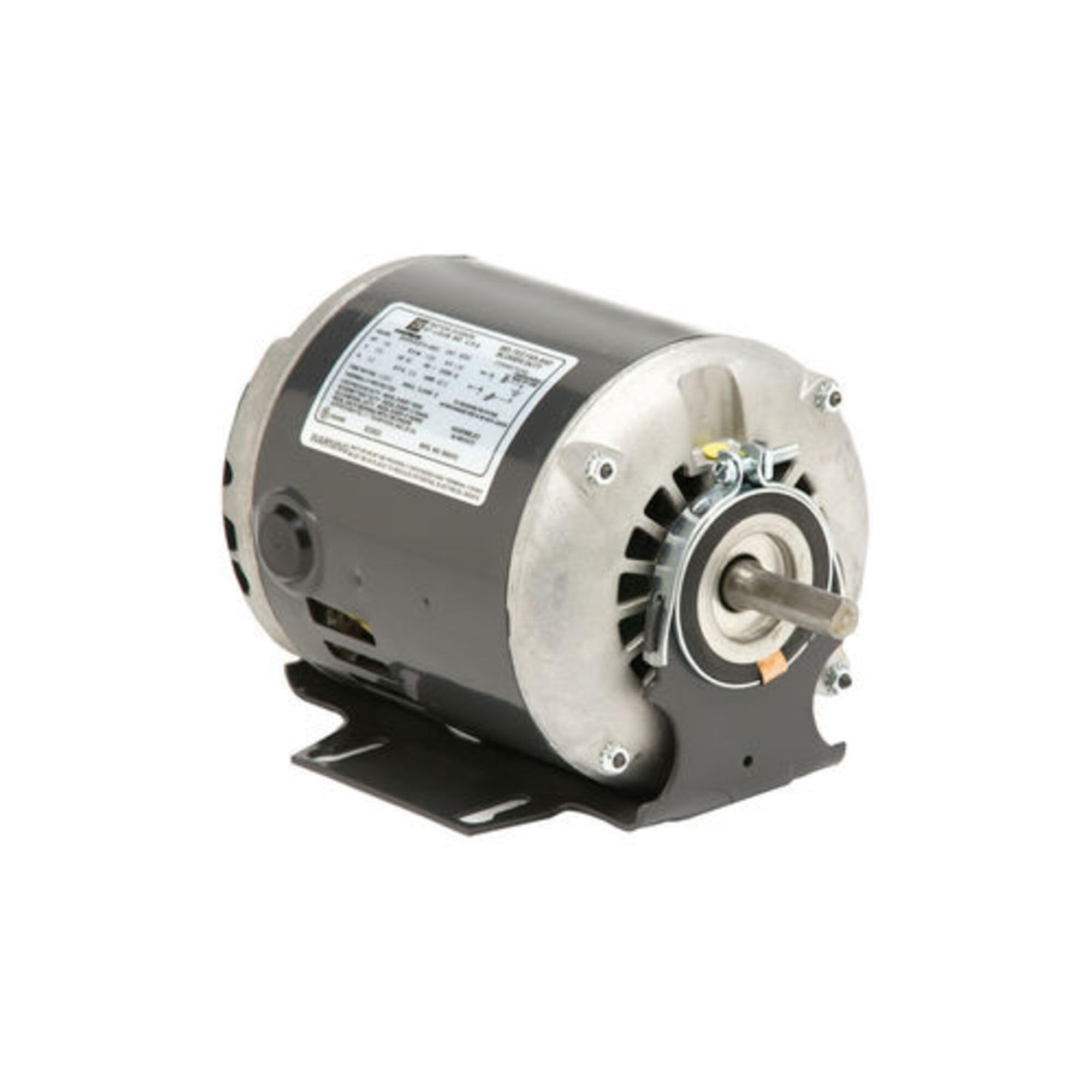

Figure 1: Emerson 1542C Motor. This image displays the general appearance of the motor, featuring its cylindrical housing, mounting points, and electrical connection box.

5. Setup and Installation

5.1 Pre-Installation Checks

• Verify that the motor's specifications (voltage, RPM, horsepower) match the requirements of your application.
• Inspect the motor for any visible damage that may have occurred during shipping.
• Ensure the mounting surface is stable, level, and capable of supporting the motor's weight and operational forces.

5.2 Mounting the Motor

1. Position the motor on the designated mounting surface.
2. Secure the motor using appropriate bolts, washers, and nuts through the provided mounting holes. Ensure all fasteners are tightened to the manufacturer's recommended torque specifications (refer to application-specific documentation if available).
3. Confirm that the motor shaft is properly aligned with the driven equipment to prevent premature wear and vibration.

5.3 Electrical Connections

IMPORTANT: All electrical work must be performed by a licensed electrician and comply with local and national electrical codes.

1. Refer to the wiring diagram located on the motor's nameplate or in the motor's specific documentation for correct connections.
2. Connect the power supply wires to the motor terminals.
3. Ensure proper grounding of the motor frame to a reliable earth ground.
4. Verify all connections are secure and insulated.

6. Operating Instructions

6.1 Initial Start-Up

1. Before applying power, double-check all electrical connections and ensure no tools or foreign objects are near the motor or driven equipment.
2. Apply power to the motor. Observe the motor for any unusual noises, vibrations, or overheating.
3. Confirm the motor is rotating in the correct direction for your application. If not, disconnect power and consult the wiring diagram for reversing instructions (if applicable).

6.2 Normal Operation

During normal operation, the motor should run smoothly with minimal noise and vibration. Periodically check the motor's temperature; it should not be excessively hot to the touch. Any significant changes in sound, vibration, or temperature may indicate a problem.

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Emerson 1542C motor. Always disconnect power before performing any maintenance.

7.1 Cleaning

• Keep the motor's exterior clean and free from dust, dirt, and debris. Accumulation can hinder cooling and lead to overheating.
• Use a soft, dry cloth or compressed air to clean the motor. Avoid using liquids or solvents that could damage electrical components.

7.2 Inspection

• Periodically inspect all electrical connections for tightness and signs of corrosion.
• Check mounting bolts for tightness.
• Examine the motor shaft and bearings for any signs of wear or damage.
• Listen for unusual noises and feel for excessive vibration during operation.

7.3 Lubrication

Many modern motors, including some Emerson models, feature sealed bearings that do not require lubrication. Consult the motor's nameplate or specific documentation to determine if your 1542C motor requires periodic lubrication. If lubrication is required, use the specified type and amount of lubricant.

8. Troubleshooting

Before attempting any troubleshooting, ensure the power supply to the motor is disconnected.

If troubleshooting steps do not resolve the issue, or if you are unsure about any procedure, contact qualified service personnel or Emerson customer support.

9. Specifications

The following are general specifications for the Emerson 1542C Motor. For detailed electrical and performance data, refer to the motor's nameplate or specific technical documentation.

10. Warranty and Support

10.1 Warranty Information

Emerson products are manufactured to high-quality standards. For specific warranty terms and conditions applicable to your 1542C motor, please refer to the warranty card included with your purchase or visit the official Emerson/US Motors website. Keep your proof of purchase for warranty claims.

10.2 Customer Support

If you have any questions, require technical assistance, or need to report a problem with your Emerson 1542C motor, please contact Emerson or US Motors customer support. Contact information can typically be found on their official websites or on your purchase documentation.

Note: Do not attempt to repair the motor yourself unless you are a qualified professional, as this may void your warranty and pose safety risks.
