1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Supco SXT101 Transformer. Please read this manual thoroughly before attempting to install or operate the device. Retain this manual for future reference.
The Supco SXT101 is a genuine OEM replacement transformer designed to provide reliable voltage conversion for various applications, featuring a 40VA rating and multiple input voltage taps (120V, 208V, 240V).
2. Safety Information
WARNING: Electrical shock hazard. Improper installation or use can result in serious injury or death. Always follow these safety precautions:
- Disconnect all power to the circuit before installing or servicing the transformer.
- Installation should only be performed by a qualified electrician or service technician.
- Ensure all wiring complies with local and national electrical codes.
- Do not exceed the specified voltage and current ratings of the transformer.
- Never operate the transformer in wet or damp conditions.
- Verify all connections are secure and properly insulated before restoring power.
3. Product Overview
The Supco SXT101 is a compact and robust control transformer designed for various HVAC, industrial, and general-purpose applications requiring voltage step-down or isolation. It features a 40 Volt-Ampere (VA) rating and offers primary voltage flexibility with 120V, 208V, and 240V taps.

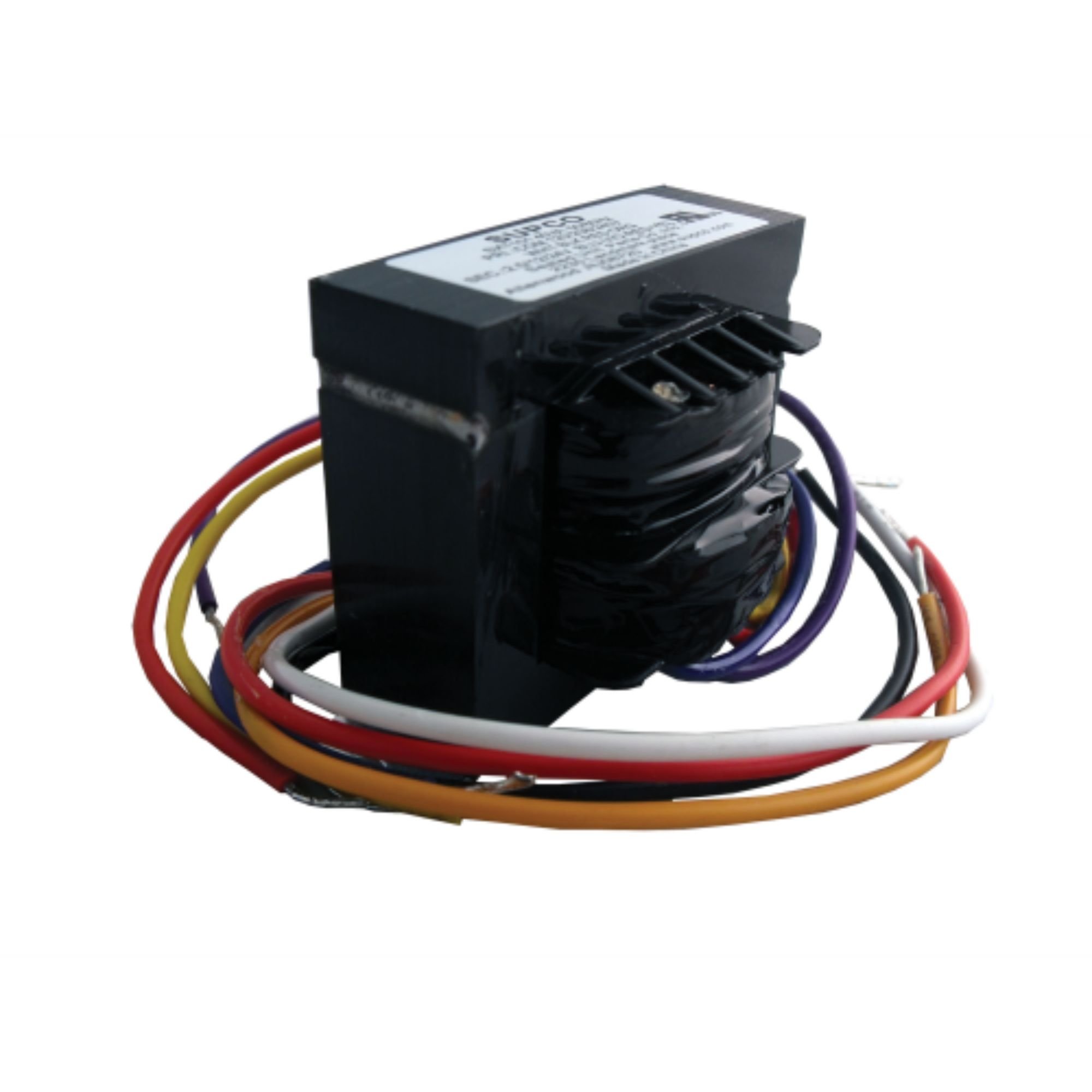

Image: The Supco SXT101 transformer, showing its compact design and terminal connections. This image illustrates the general appearance of the product.
Key features include:
- Model: SXT101
- VA Rating: 40VA
- Primary Voltage Taps: 120V, 208V, 240V
- Secondary Voltage: Typically 24V (standard for control transformers, verify specific model details if available)
- Application: HVAC, control circuits, general electronics
4. Setup and Installation
IMPORTANT: Ensure power is disconnected before proceeding with installation.
- Mounting: Securely mount the transformer in a suitable enclosure or location, ensuring adequate ventilation and protection from environmental factors. Use appropriate fasteners for the mounting holes provided.
- Primary Wiring (Input):
- Identify the incoming line voltage (120V, 208V, or 240V).
- Connect the appropriate primary voltage tap(s) to the incoming power supply. For example, if your supply is 240V, connect to the 240V tap.
- Connect the common primary wire to the neutral or other phase as required by your electrical system.
- Ensure all connections are tight and insulated.
- Secondary Wiring (Output):
- Connect the secondary output terminals to the load requiring the transformed voltage (e.g., 24V control circuit).
- Observe proper polarity if the application requires it.
- Ensure all connections are tight and insulated.
- Grounding: If a grounding terminal is present, connect it to a proper earth ground according to local electrical codes.
- Verification: Double-check all wiring connections against the wiring diagram (if provided with the product) and ensure no loose wires or exposed conductors.
5. Operating Instructions
The Supco SXT101 transformer operates passively once correctly installed and powered. There are no user-adjustable controls.
- After completing the installation and verifying all connections, restore power to the circuit.
- Use a multimeter to confirm the correct output voltage at the secondary terminals.
- Monitor the connected load to ensure it is functioning as expected.
If the transformer does not provide the expected output voltage or if the connected device does not power on, refer to the Troubleshooting section.
6. Maintenance
The Supco SXT101 transformer is designed for long-term, maintenance-free operation. However, periodic checks can help ensure its longevity and reliable performance:
- Visual Inspection: Annually inspect the transformer for any signs of physical damage, overheating (discoloration), or loose connections.
- Cleaning: Ensure the transformer is free from dust, dirt, and debris, which can impede heat dissipation. Use a dry, soft cloth or compressed air for cleaning.
- Connection Checks: Periodically verify that all electrical connections remain tight and secure.
- Environmental Conditions: Ensure the operating environment remains within the specified temperature and humidity ranges.
CAUTION: Always disconnect power before performing any maintenance or cleaning.
7. Troubleshooting
If the transformer is not functioning correctly, perform the following checks:
| Problem | Possible Cause | Solution |
|---|---|---|
| No output voltage | No input power; Incorrect primary wiring; Blown fuse/tripped breaker; Internal fault. | Check power supply; Verify primary tap connections; Check circuit protection; Replace transformer if faulty (after confirming other issues). |
| Incorrect output voltage | Incorrect primary tap selected; Overload on secondary; Faulty transformer. | Ensure correct primary tap for input voltage; Reduce secondary load; Replace transformer. |
| Transformer is hot | Overload; Poor ventilation; Short circuit in secondary. | Reduce load; Improve ventilation; Check secondary circuit for shorts. |
If troubleshooting steps do not resolve the issue, contact a qualified service technician or Supco customer support.
8. Specifications
- Model: SXT101
- Brand: Supco
- VA Rating: 40VA
- Primary Voltage: 120V, 208V, 240V (3-Taps)
- Secondary Voltage: (Typically 24V, please refer to product labeling for exact output)
- Dimensions (Approximate Package): 6 x 6 x 6 inches
- ASIN: B009AX3D9I
9. Warranty and Support
For information regarding product warranty, please refer to the warranty documentation provided with your purchase or visit the official Supco website. For technical support or service inquiries, please contact Supco customer service directly.
Supco Official Website: www.supco.com
