1. Introduction
Thank you for choosing the Weelko Expand LED Magnifying Lamp 1001. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new magnifying lamp. Please read this manual thoroughly before use and retain it for future reference.
Safety Instructions
- Ensure the lamp is connected to a power supply that matches the voltage specified on the product label.
- Do not expose the lamp to water or excessive moisture.
- Avoid looking directly into the LED light source for extended periods.
- Do not place the magnifying lens in direct sunlight, as it can concentrate sunlight and cause a fire hazard.
- Keep the lamp away from children and pets.
- Unplug the lamp from the power outlet before cleaning or performing any maintenance.
- Do not attempt to disassemble or repair the lamp yourself. Contact qualified service personnel for assistance.
2. Product Overview
The Weelko Expand LED Magnifying Lamp 1001 is designed for precision work, offering clear magnification and bright, cold LED illumination. Its modern design integrates seamlessly into various professional environments. The articulated arm allows for flexible positioning, and the stable 5-wheel base ensures easy mobility.
Key Components
- Magnifying Lens: 3 diopters for detailed viewing.
- LED Light Ring: Provides bright, cold illumination around the lens.
- Articulated Arm: Allows for multi-directional adjustment and stable positioning.
- Control Panel/Switch: For turning the lamp on and off.
- Rolling Base: A stable 5-wheel base for easy movement across surfaces.
- Power Cord: For connecting to an electrical outlet.

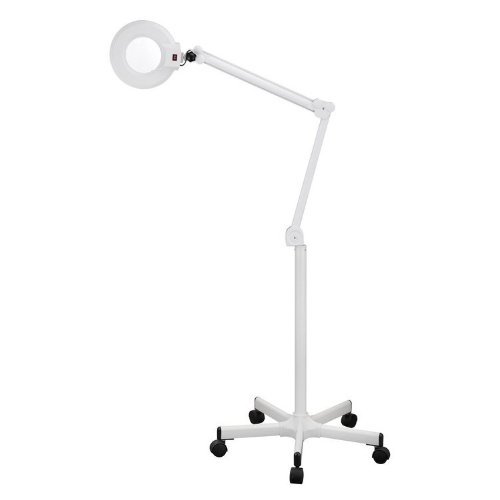

Figure 2.1: The Weelko Expand LED Magnifying Lamp 1001, showcasing its adjustable articulated arm, magnifying lens with LED light, and stable 5-wheel rolling base for easy movement.
3. Setup
The Weelko Expand LED Magnifying Lamp 1001 is designed for quick and easy assembly, allowing it to be ready for use within approximately 5 minutes of unboxing.
Assembly Instructions
- Unpack Components: Carefully remove all components from the packaging. Ensure all parts listed in the packing list are present.
- Assemble the Rolling Base: Insert the five wheels into the designated slots on the base. Ensure they are securely clicked into place.
- Attach the Lamp Arm: Insert the bottom pole of the lamp arm into the central opening of the assembled rolling base. Tighten any securing knobs or screws provided to firmly attach the arm to the base.
- Position the Lamp Head: Adjust the articulated arm to your desired initial height and angle.
- Connect to Power: Plug the power cord into a suitable electrical outlet.
4. Operating Instructions
Follow these steps to operate your Weelko Expand LED Magnifying Lamp 1001:
- Power On: Locate the power switch, typically on the lamp head or arm, and press it to turn on the LED light.
- Adjust Position: Use the articulated arm to position the magnifying lens and light over your work area. The arm is designed for smooth and stable adjustment.
- Focus: Adjust the distance between the lens and the object you are viewing to achieve optimal focus and magnification. The 3 diopter lens provides clear, magnified vision.
- Reposition: If you need to move the entire lamp, gently push the rolling base to relocate it. Avoid pulling the lamp by the arm or head.
- Power Off: When finished, press the power switch to turn off the LED light and unplug the lamp from the outlet if it will not be used for an extended period.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your magnifying lamp.
- Cleaning the Lens: Use a soft, lint-free cloth specifically designed for optical lenses. If necessary, dampen the cloth slightly with a mild, non-abrasive lens cleaning solution. Avoid harsh chemicals or abrasive materials that could scratch the lens.
- Cleaning the Lamp Body: Wipe the lamp arm, head, and base with a soft, damp cloth. Do not use strong detergents or solvents. Ensure the lamp is unplugged before cleaning.
- Storage: When not in use, store the lamp in a clean, dry environment. Position the articulated arm in a compact and stable configuration to prevent accidental damage.
- Cable Inspection: Periodically check the power cord for any signs of damage, fraying, or kinks. If damage is found, discontinue use and contact customer support.
6. Troubleshooting
If you encounter issues with your Weelko Expand LED Magnifying Lamp 1001, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. | No power supply. Power switch is off. | Ensure the power cord is securely plugged into a working electrical outlet. Press the power switch to the 'ON' position. |
| LED light flickers. | Loose power connection. Unstable power supply. | Check all power connections. Try plugging into a different outlet. |
| Magnification is unclear or blurry. | Lens is dirty. Incorrect distance from object. | Clean the magnifying lens as described in the Maintenance section. Adjust the lamp's height and angle to find the optimal focal distance. |
| Articulated arm does not hold position. | Joints are loose. | Check for any tightening knobs or screws on the arm joints and tighten them if necessary. Do not overtighten. |
If the problem persists after attempting these solutions, please contact Weelko customer support for further assistance.
7. Specifications
- Brand: Weelko (Silverfox)
- Model: 1001
- Magnification: 3 Diopters
- Light Source: Cold LED
- Arm Type: Articulated
- Base Type: 5-wheel stable rolling base
- Power: (Specific power details not provided, refer to product label)
- Dimensions: (Specific dimensions not provided)
8. Warranty and Support
For information regarding warranty coverage, technical support, or spare parts, please contact your retailer or the manufacturer directly. Keep your purchase receipt as proof of purchase for any warranty claims.
Manufacturer: Weelko (Silverfox)
