Introduction
The PURELL LTX-7 Touch-Free Hand Sanitizer Dispenser (Model 1328-04) is designed for hygienic hand sanitization. This electronic, touch-free dispenser has a 700 mL capacity and is engineered to reduce the risk of contamination by eliminating shared touch surfaces. It features updated electronic technology to optimize energy usage, minimizing the need for frequent battery changes. The dispenser controls dispensed portions to reduce waste and includes a clear window and skylight for easy monitoring of the fill level. It is ADA-compliant and suitable for various installations due to its compact design.

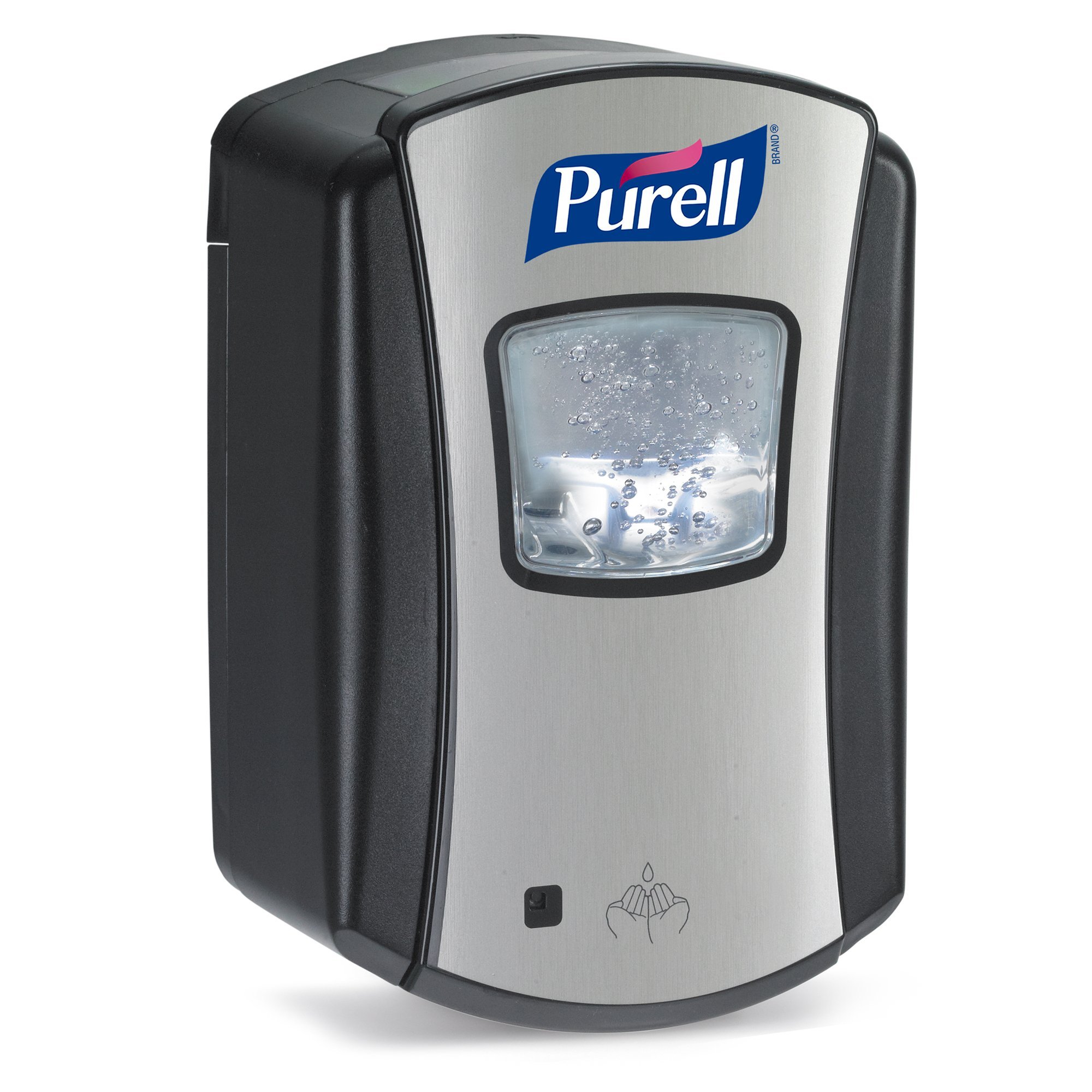

Image: The PURELL LTX-7 Touch-Free Hand Sanitizer Dispenser in Chrome/Black.
Setup and Installation
Follow these steps to set up and install your PURELL LTX-7 dispenser:
- Choose a Location: Select a suitable location for the dispenser. Ensure it is easily accessible and at an appropriate height.
- Mounting:
- For smooth surfaces, use the pre-applied installation tape on the back of the dispenser. Ensure the surface is clean and dry before application.
- For rough surfaces, use the four provided mounting holes. Mounting hardware (screws, anchors) is not included and must be supplied by the user.
- Battery Installation: The dispenser requires four D-cell batteries (not included). Open the dispenser cover, locate the battery compartment, and insert the batteries according to the polarity indicators.
- Refill Insertion:
The dispenser is compatible with PURELL 1303-03 gel, 1304-03, and 1305-03 700mL foam hand sanitizer refills (sold separately). Open the dispenser cover, align the refill bottle with the internal mechanism, and push it firmly into place until it clicks. Close the dispenser cover.
Image: The PURELL LTX-7 Dispenser shown with compatible 700mL refills (1303-03, 1304-03, 1305-03).
Operating Instructions
The PURELL LTX-7 dispenser operates automatically:
- Activate Dispenser: Once batteries and a refill are installed, the dispenser is ready for use.
- Dispensing Sanitizer: Place your hands directly under the dispenser's sensor. The sensor will detect your hands and automatically dispense a pre-measured portion of hand sanitizer.
- Portion Control: The electronic system is designed to dispense an optimal amount of sanitizer to reduce waste.
Video: An official video demonstrating the features and operation of the Purell LTX Dispenser, 700mL Capacity.
Maintenance
Regular maintenance ensures optimal performance and hygiene:
- Monitoring Fill Level: The dispenser features a clear window on the front and a skylight on the top, allowing you to easily monitor the sanitizer fill level. Replace the refill when it is low.
- Cleaning: Wipe the exterior of the dispenser with a soft, damp cloth. Avoid using abrasive cleaners or solvents that could damage the finish. Ensure no liquid enters the internal electronic components.
- Battery Replacement: When the batteries are low, the dispenser's indicator light may signal this. Replace all four D-cell batteries simultaneously to ensure consistent power.
- Security Lock: The dispenser can be locked to prevent tampering. Refer to the internal mechanism for the locking feature, if desired.
Troubleshooting
If you encounter issues with your dispenser, refer to the following common solutions:
- Dispenser Not Activating:
- Ensure hands are placed directly under the sensor.
- Check if the batteries are correctly installed and have sufficient charge. Replace all four D-cell batteries if necessary.
- Verify that a compatible PURELL LTX-7 refill is properly inserted and clicked into place.
- No Sanitizer Dispensed:
- Check the refill level through the clear window or skylight. Replace the refill if empty.
- Ensure the refill is correctly seated in the dispenser.
- Excessive or Insufficient Dispensing: The dispenser is designed for controlled portions. If you experience consistent issues, ensure the sensor area is clean and unobstructed.
Specifications
| Feature | Detail |
|---|---|
| Model Number | 1328-04 |
| Brand | Purell |
| Color | Chrome/Black |
| Material | Plastic |
| Dimensions (H x W x D) | 8.5" x 5.75" x 4" |
| Capacity | 700 mL (for compatible refills) |
| Power Source | 4 D-cell batteries (not included) |
| Compliance | ADA Compliant |
| Included Components | 1 PURELL LTX-7 Touch-Free Hand Sanitizer Dispenser |
Warranty and Support
The PURELL LTX-7 Touch-Free Hand Sanitizer Dispenser comes with a manufacturer's guarantee of reliability. For specific warranty details, claims, or technical support, please refer to the official Purell website or contact GOJO Industries customer service directly. Keep your purchase receipt for warranty validation.
For additional information, visit the Purell Store on Amazon.
