1. Introduction
This manual provides essential information for the safe and efficient operation of your Orbegozo NVE 4500 Mini Refrigerator. Please read these instructions carefully before installation and use, and retain them for future reference. This appliance is designed for cooling beverages and food items within a temperature range of 5°C to 12°C.
2. Safety Instructions
To reduce the risk of fire, electric shock, or injury when using your appliance, follow these basic precautions:
- Ensure the power supply voltage matches the rating label on the appliance.
- Do not operate the appliance with a damaged cord or plug.
- Keep ventilation openings clear of obstructions.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.
- Unplug the appliance before cleaning or performing maintenance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
3. Product Overview
The Orbegozo NVE 4500 is a compact mini refrigerator designed for convenience and efficiency. It features a 38-liter capacity, an adjustable thermostat, and an interior LED light.

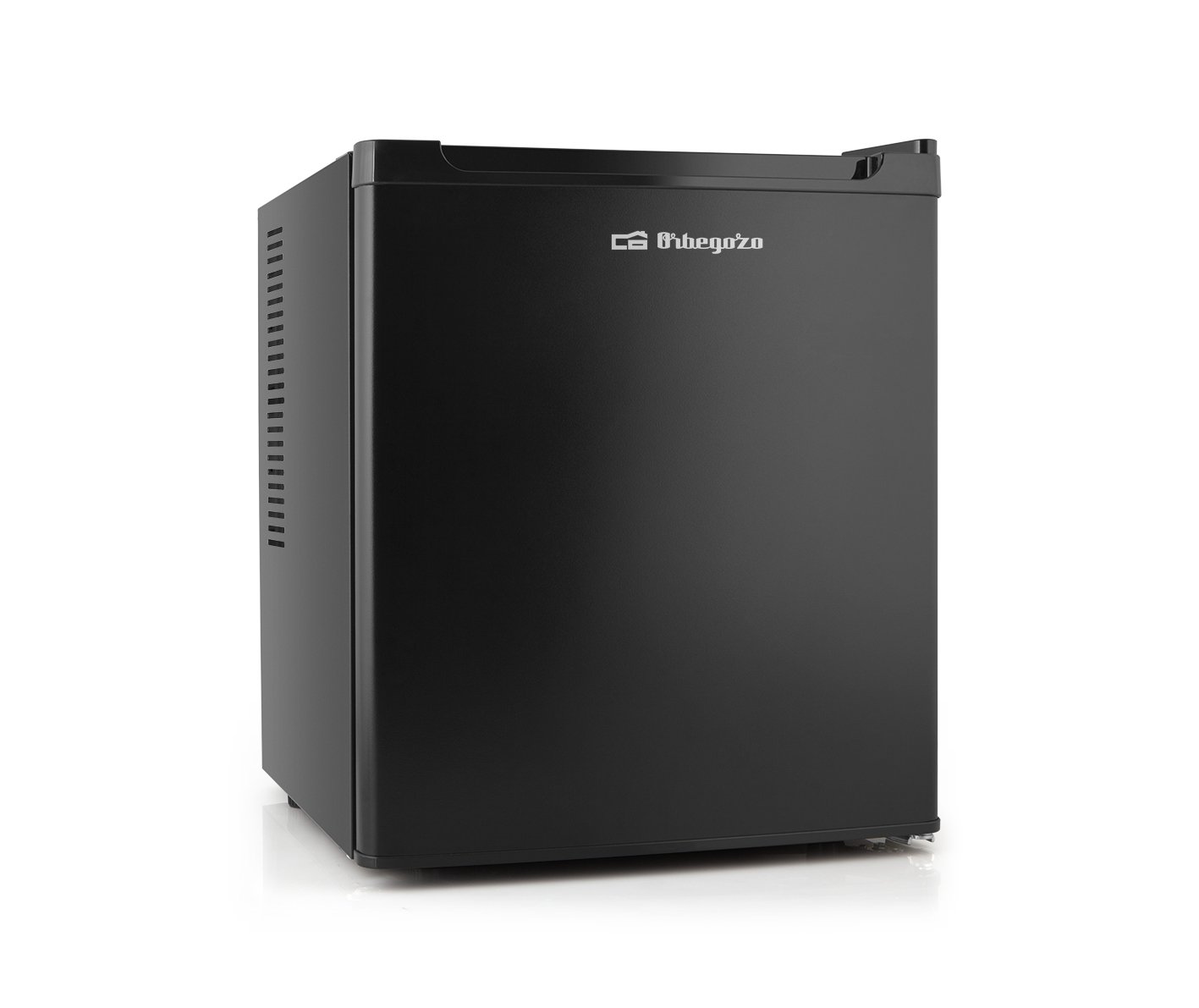

Figure 3.1: Front view of the Orbegozo NVE 4500 Mini Refrigerator. This image shows the sleek black exterior and compact design of the appliance.
Key Features:
- Capacity: 38 liters, suitable for various beverages and small food items.
- Adjustable Temperature Control: Allows setting the internal temperature between 5°C and 12°C.
- LED Interior Light: Energy-efficient lighting for clear visibility inside.
- Reversible Door: The door can be configured to open from either the left or right side.
- Adjustable Height Feet: For stable placement on uneven surfaces.
- Low Noise Operation: Operates quietly at approximately 39 dB.
- No Frost System: Reduces ice buildup, simplifying maintenance.
Figure 3.2: Interior view of the Orbegozo NVE 4500 Mini Refrigerator with the door open. This image displays the internal shelf and door compartments for organized storage.
Figure 3.3: Close-up of the adjustable thermostat control and LED light inside the Orbegozo NVE 4500. The dial allows users to set the desired cooling level.
4. Setup
4.1 Unpacking
Carefully remove the refrigerator from its packaging. Inspect for any damage during transit. Keep packaging materials for potential future transport or return.
4.2 Placement
- Place the appliance on a firm, level surface to ensure stability and proper operation.
- Allow adequate space around the refrigerator for proper ventilation (at least 10 cm on sides and back). Avoid placing it in direct sunlight or near heat sources.
- Adjust the height of the feet to level the appliance if necessary.
4.3 Initial Cleaning
Before first use, clean the interior and exterior of the refrigerator with a soft cloth and mild detergent. Rinse with clean water and dry thoroughly.
4.4 Door Reversal (Optional)
The door of the Orbegozo NVE 4500 is reversible. If you wish to change the door's opening direction, refer to the detailed instructions provided in the full PDF manual available for download. This process typically involves unscrewing hinges and reattaching them on the opposite side.
4.5 Power Connection
After placement and initial cleaning, plug the refrigerator into a grounded electrical outlet (230V, 50Hz). Allow the appliance to stand for at least 2-4 hours before loading it with items to allow refrigerants to settle.
5. Operating Instructions
5.1 Temperature Control
The refrigerator's temperature is controlled by an adjustable thermostat located inside the unit (refer to Figure 3.3). Turn the dial to select your desired cooling level. The temperature range is between 5°C and 12°C, depending on the ambient room temperature. A higher setting on the dial typically results in colder temperatures.
5.2 Interior LED Light
The appliance is equipped with an energy-efficient LED light inside the compartment. This light illuminates automatically when the door is opened, providing visibility of the contents.
5.3 Loading the Refrigerator
Distribute items evenly on the shelf and in the door compartments. Avoid overfilling, as this can obstruct airflow and reduce cooling efficiency. Ensure bottles and containers are sealed to prevent spills.
6. Maintenance and Cleaning
6.1 Regular Cleaning
To maintain hygiene and efficiency, clean your refrigerator regularly:
- Exterior: Wipe the exterior surfaces with a soft cloth dampened with mild detergent. Dry thoroughly.
- Interior: Remove all items and shelves. Wash the interior walls, shelves, and door seals with a solution of mild detergent and warm water. Rinse and dry completely before returning items.
- Do not use abrasive cleaners, solvents, or sharp objects for cleaning, as these can damage the surfaces.
6.2 No Frost System
The Orbegozo NVE 4500 features a No Frost system, which minimizes ice buildup inside the cooling compartment. This reduces the need for manual defrosting. However, if any ice accumulation is observed, unplug the unit and allow it to defrost naturally, then wipe away any melted water.
6.3 Power Disconnection
If the refrigerator will not be used for an extended period, unplug it, clean it thoroughly, and leave the door slightly ajar to prevent odors and mold growth.
7. Troubleshooting
Before contacting customer service, please check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate. | No power supply; plug loose; circuit breaker tripped. | Check power connection; ensure outlet is functional; reset circuit breaker. |
| Temperature is not cold enough. | Thermostat setting too high; door opened too frequently; poor ventilation; too many items inside. | Adjust thermostat to a colder setting; ensure door is closed properly; check for adequate ventilation; reduce load. |
| Unusual noise. | Appliance not level; items inside vibrating; normal operating sounds. | Adjust leveling feet; rearrange items; some operational sounds (e.g., refrigerant flow, fan) are normal. |
| Water on the floor. | Drainage hole blocked; excessive humidity. | Clear the drainage hole; ensure door is not left open for long periods. |
8. Specifications
Figure 8.1: Dimensional diagram of the Orbegozo NVE 4500 Mini Refrigerator, showing height, width, and depth measurements.
| Feature | Detail |
|---|---|
| Model Number | NVE 4500 B |
| Capacity | 38 Liters |
| Power Consumption | 70 W |
| Voltage | 230V, 50Hz |
| Temperature Range | 5°C - 12°C (depending on ambient temperature) |
| Noise Level | 39 dB |
| Dimensions (H x W x D) | 51 cm x 43 cm x 40.5 cm |
| Weight | 9.5 kg |
| Special Features | LED Interior Light, Adjustable Temperature Control, Reversible Door, Adjustable Height Feet, No Frost System |
Figure 8.2: Energy efficiency label for the Orbegozo NVE 4500 Mini Refrigerator, indicating its energy class and other relevant consumption data.
9. Warranty and Support
For detailed warranty information and customer support, please refer to the official Orbegozo website or the documentation included with your purchase. A comprehensive user manual in PDF format is also available for download:
