1. Introduction
This manual provides detailed instructions for the operation and maintenance of your Deli Scientific Calculator, model DELI-91-1710. This calculator is designed for a wide range of mathematical and scientific calculations, offering 240 functions to support various academic and professional needs.
Key features include advanced scientific functions, statistical calculations, fraction operations, and memory capabilities. Please read this manual thoroughly to ensure proper use and to maximize the calculator's potential.

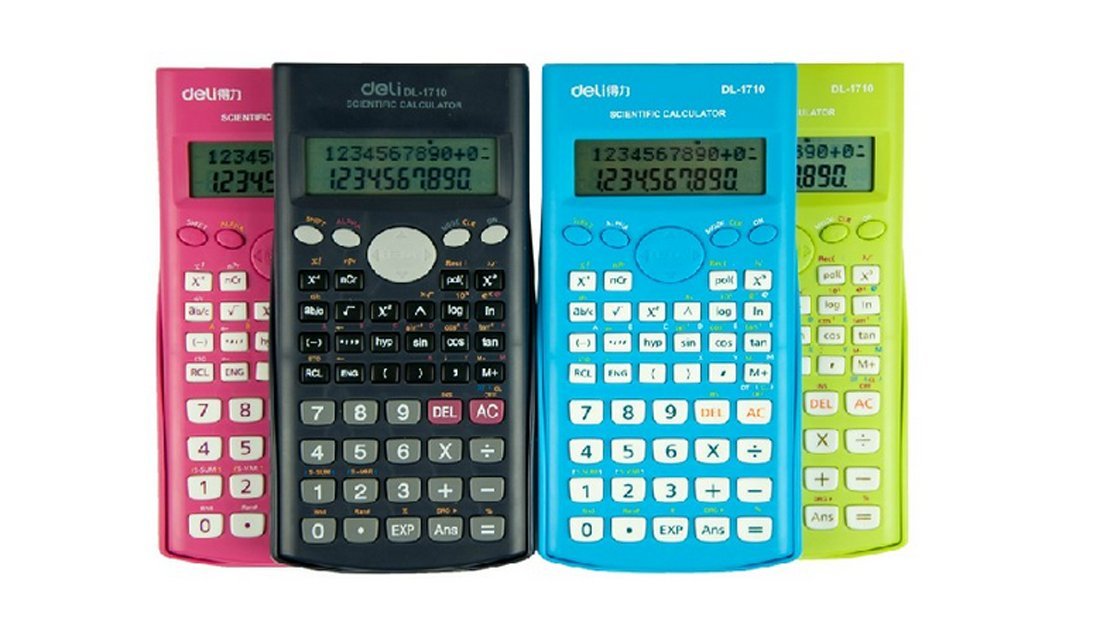

Figure 1: Deli Scientific Calculator DELI-91-1710. This image shows the calculator from an angled perspective, displaying its full keypad and display screen.
2. Setup
2.1 Battery Installation
The Deli Scientific Calculator DELI-91-1710 typically uses standard button cell batteries. To install or replace batteries:
- Ensure the calculator is powered off.
- Locate the battery compartment cover on the back of the calculator.
- Use a small screwdriver (if required) to open the battery compartment.
- Insert new batteries, ensuring correct polarity (+/-) as indicated inside the compartment.
- Securely close the battery compartment cover.

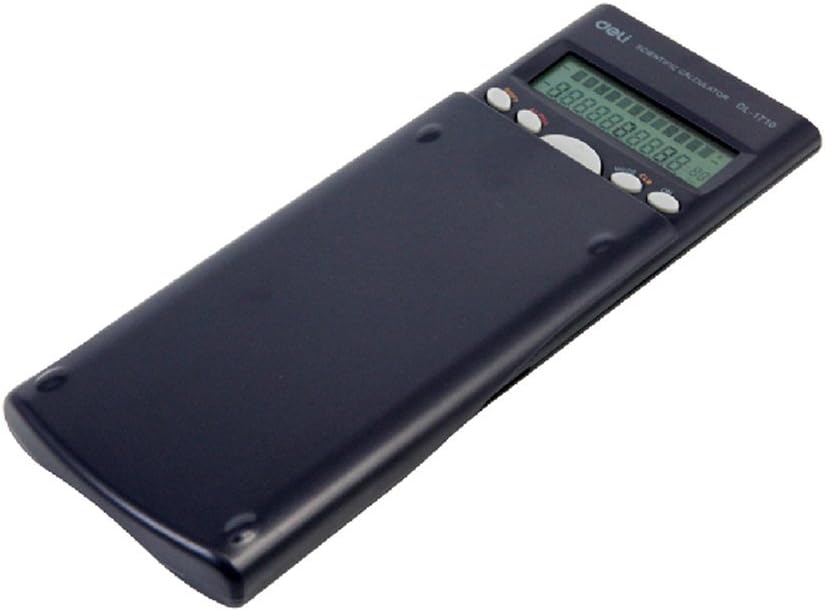

Figure 2: Back view of the Deli Scientific Calculator with its protective slide cover. The battery compartment is typically located on this side.
2.2 Initial Power On
After battery installation, press the [ON] button to power on the calculator. The display should show '0' or a similar initial state. If the display remains blank, recheck battery installation or replace with fresh batteries.
3. Operating Instructions
This section details the various functions and operations of your Deli Scientific Calculator.
3.1 Basic Arithmetic Operations
Perform addition, subtraction, multiplication, and division using the [+], [-], [×], [÷] keys. Press [=] to get the result.
- Example: To calculate 15 + 7, press 1 5 [+] 7 [=].
3.2 Scientific Functions
The calculator supports 240 scientific functions. Access these using dedicated keys or by pressing the [SHIFT] key followed by another function key.
- Trigonometric Functions: Use [sin], [cos], [tan] for sine, cosine, and tangent. Inverse trigonometric functions (sin-1, cos-1, tan-1) are typically accessed via [SHIFT].
- Logarithmic Functions: Use [log] for common logarithm (base 10) and [ln] for natural logarithm (base e).
- Powers and Roots: Use [x2] for squaring, [√] for square root, and [xy] for general powers.
- Factorial: The factorial function (x!) is usually accessed via [SHIFT].
3.3 Angle Modes
The calculator can operate in Degree (DEG), Radian (RAD), or Grad (GRA) modes. Press the [MODE] key repeatedly or use a dedicated [DRG] key (often [SHIFT] + [DRG]) to cycle through these modes. The current mode is indicated on the display.
3.4 Fraction Calculations
To perform calculations with fractions, use the fraction key (often denoted as [a b/c] or [d/c]). This allows input of mixed numbers and improper fractions.
- Example: To input 1 2/3, press 1 [a b/c] 2 [a b/c] 3.
3.5 Memory Functions
The calculator includes independent memory functions.
- [M+]: Adds the displayed value to the memory.
- [M-]: Subtracts the displayed value from the memory.
- [RCL]: Recalls the value stored in memory to the display.
- [STO]: Stores the displayed value into a specific memory variable (if available).
- [MC]: Clears the memory (often [SHIFT] + [M+] or a dedicated key).
3.6 Statistical Calculations
The calculator supports statistical calculations, including standard deviation and data editing.
- Enter STAT mode (usually via [MODE]).
- Input data points using the data entry key (e.g., [DATA] or [M+] in STAT mode).
- Use specific keys (often [SHIFT] + statistical function keys) to calculate mean, standard deviation, sum of squares, etc.
3.7 Other Advanced Functions
- ANS Function: The [ANS] key recalls the result of the previous calculation.
- Multi-step Functional Importance: The calculator automatically applies the correct order of operations (PEMDAS/BODMAS).
- Continuous Calculation: Allows you to use the result of a previous calculation directly in the next operation without re-entering it.
- Permutations and Combinations: Use the [nPr] and [nCr] functions (often accessed via [SHIFT]).
- Coordinate Conversion: Convert between rectangular and polar coordinates (e.g., [Pol] and [Rec] functions).
4. Maintenance
4.1 Cleaning
To clean your calculator, gently wipe the surface with a soft, dry cloth. For stubborn dirt, slightly dampen the cloth with water or a mild, non-abrasive cleaner. Avoid using strong solvents, alcohol, or abrasive materials, as these can damage the casing and display.
4.2 Storage
When not in use, store the calculator in a cool, dry place away from direct sunlight and extreme temperatures. Always use the protective slide cover to prevent damage to the keys and display.
4.3 Battery Replacement
Refer to section 2.1 for detailed instructions on battery replacement. Replace batteries promptly when the display becomes dim or erratic to ensure optimal performance and prevent data loss.
5. Troubleshooting
If you encounter issues with your Deli Scientific Calculator, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Display is blank or dim. | Low or dead batteries; incorrect battery installation. | Replace batteries, ensuring correct polarity. |
| Incorrect calculation results. | Incorrect mode setting (e.g., angle mode); syntax error; previous calculation error. | Check angle mode (DEG/RAD/GRA). Clear all calculations ([AC]) and re-enter. Perform a full reset if necessary. |
| Calculator does not respond to key presses. | Calculator frozen; low batteries. | Try pressing [ON] or [AC]. If unresponsive, remove and reinsert batteries to perform a hard reset. |
| Error message on display. | Mathematical error (e.g., division by zero, invalid input for function). | Review your input and the operation performed. Clear the error with [AC] or [CE]. |
5.1 Resetting the Calculator
If the calculator behaves erratically, a full reset may resolve the issue. This typically clears all memory and returns settings to default. Consult the specific instructions for your model, but often involves pressing [SHIFT] then [CLR] (Clear) or [RESET], and confirming the reset.
6. Specifications
- Brand: deli
- Model: DELI-91-1710
- Part Number: DELI-91-1710
- ASIN: B008WXTE40
- UPC: 702168016298
- Functions: 240 scientific functions, including trigonometric, logarithmic, power, root, fraction, statistical (standard deviation, data editing), permutations, combinations, coordinate conversion, ANS function, multi-step functional importance, continuous calculation, independent memory.
- Angle Modes: Degrees, Radians, Grads
- Power Source: Battery (type not specified, typically button cell)
- Display: Single-line LCD (typical for this model type)
7. Warranty and Support
For warranty information, technical support, or service inquiries regarding your Deli Scientific Calculator DELI-91-1710, please refer to the documentation provided at the time of purchase or visit the official Deli website. Contact details for customer service are typically available on the manufacturer's website or through your retailer.
