1. Introduction
Thank you for choosing Baby Lock Plastic Bobbins. This manual provides essential information for the proper use, installation, and maintenance of your new bobbins. Please read these instructions carefully before use to ensure optimal performance and longevity of your sewing machine and bobbins.
2. Product Overview
The Baby Lock Plastic Bobbins are designed for use with compatible Baby Lock sewing machines. This package includes five clear plastic bobbins, essential for holding the lower thread in your sewing projects.

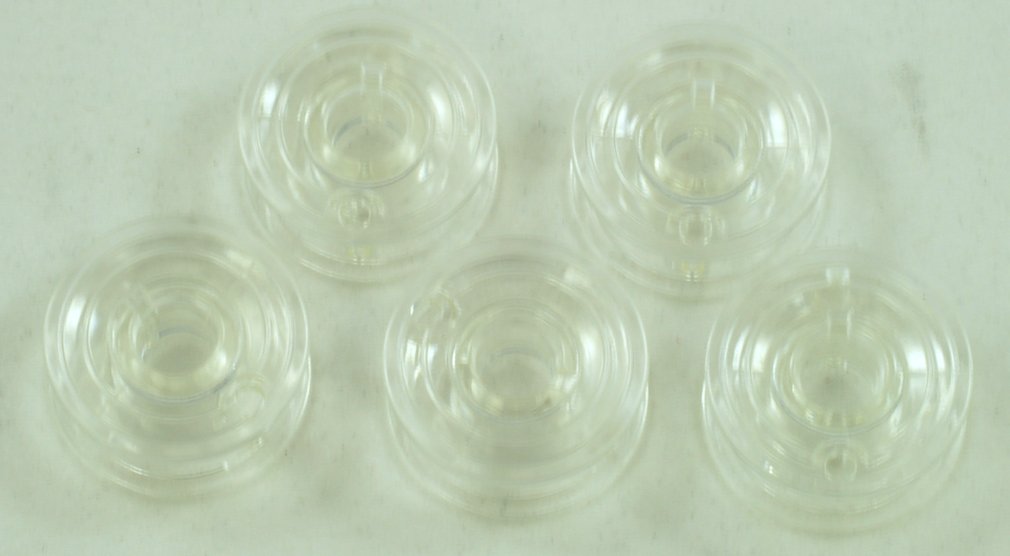

Figure 1: Baby Lock Plastic Bobbins (5-Pack). These clear bobbins allow for easy monitoring of thread levels.
3. Compatibility
These plastic bobbins are compatible with the following Baby Lock sewing machine models:
- Baby Lock Quest
- Baby Lock BLQ2
Always refer to your sewing machine's specific manual to confirm bobbin type and size requirements.
4. Installation and Setup
Follow these steps to wind and install a bobbin into your sewing machine:
- Winding the Bobbin:
- Place a spool of thread on the spool pin of your sewing machine.
- Guide the thread through the machine's tension disc for bobbin winding.
- Insert an empty plastic bobbin onto the bobbin winder spindle.
- Wrap the thread around the bobbin a few times clockwise.
- Push the bobbin winder spindle to the right (or as indicated by your machine) to engage the winding mechanism.
- Press the foot pedal or start button to begin winding. Stop when the bobbin is full but not overfilled.
- Cut the thread and remove the wound bobbin from the spindle.
- Inserting the Bobbin:
- Open the bobbin case or bobbin cover on your sewing machine (location varies by model, typically under the needle plate or in a front-loading compartment).
- Insert the wound bobbin into the bobbin case, ensuring the thread unwinds in the correct direction (usually counter-clockwise for drop-in bobbins, or as specified by your machine).
- Guide the bobbin thread through the tension spring or slot in the bobbin case.
- Close the bobbin case or cover securely.
Refer to your specific sewing machine manual for detailed bobbin winding and insertion instructions, as procedures may vary.
5. Operating Instructions
Once the bobbin is correctly installed and the machine is threaded, you can begin sewing. The bobbin thread will automatically interlock with the upper thread to form stitches.
- Monitoring Thread: The clear plastic design of these bobbins allows you to easily see the remaining thread, helping you avoid running out of bobbin thread in the middle of a seam.
- Thread Type: Use these bobbins with standard sewing threads. Avoid using specialty threads that may be too thick or abrasive, as this could damage the bobbin or machine.
6. Maintenance
Proper care of your bobbins ensures smooth sewing and extends their lifespan:
- Cleaning: Periodically remove any lint or thread residue from the bobbins and the bobbin case area of your sewing machine. A small brush or lint roller can be used.
- Storage: Store bobbins in a clean, dry place, preferably in a bobbin box or organizer to prevent tangling and damage.
- Inspection: Before each use, inspect bobbins for any cracks, chips, or deformities. Damaged bobbins can cause thread tension issues or damage your sewing machine. Replace any damaged bobbins immediately.
7. Troubleshooting
Most bobbin-related issues stem from incorrect winding or insertion. If you encounter problems, consider the following:
- Uneven Stitches or Thread Breakage:
- Ensure the bobbin is wound evenly and not too tightly or loosely.
- Check that the bobbin thread is correctly seated in the bobbin case tension spring.
- Verify that the bobbin is inserted with the thread unwinding in the correct direction.
- Bobbin Jamming:
- Remove the bobbin and check for any stray threads or lint in the bobbin area.
- Ensure the bobbin is not overfilled.
- Confirm you are using the correct size and type of bobbin for your machine.
For persistent issues, consult your sewing machine's instruction manual or contact Baby Lock customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Product Type | Plastic Bobbins |
| Quantity | 5 per pack |
| Material | Clear Plastic |
| Model Number | 006085009 |
| Compatible Models | Baby Lock Quest, Baby Lock BLQ2 |
| Item Weight (approx.) | 1 pound (for the package) |
9. Warranty and Support
For information regarding warranty coverage or technical support for your Baby Lock products, please refer to the official Baby Lock website or contact their customer service directly. Keep your purchase receipt as proof of purchase.
Baby Lock Official Website: babylock.com
