1. Introduction
Thank you for choosing the Daiwa Lexa 100 HSL fishing reel. This manual provides essential information for the proper setup, operation, and maintenance of your new reel. Designed for durability and performance, the Lexa 100 HSL features a robust aluminum body, advanced UTD drag system, and CRBB corrosion-resistant ball bearings, making it suitable for various fishing conditions, including saltwater environments. Please read these instructions carefully before using your reel to ensure optimal performance and longevity.

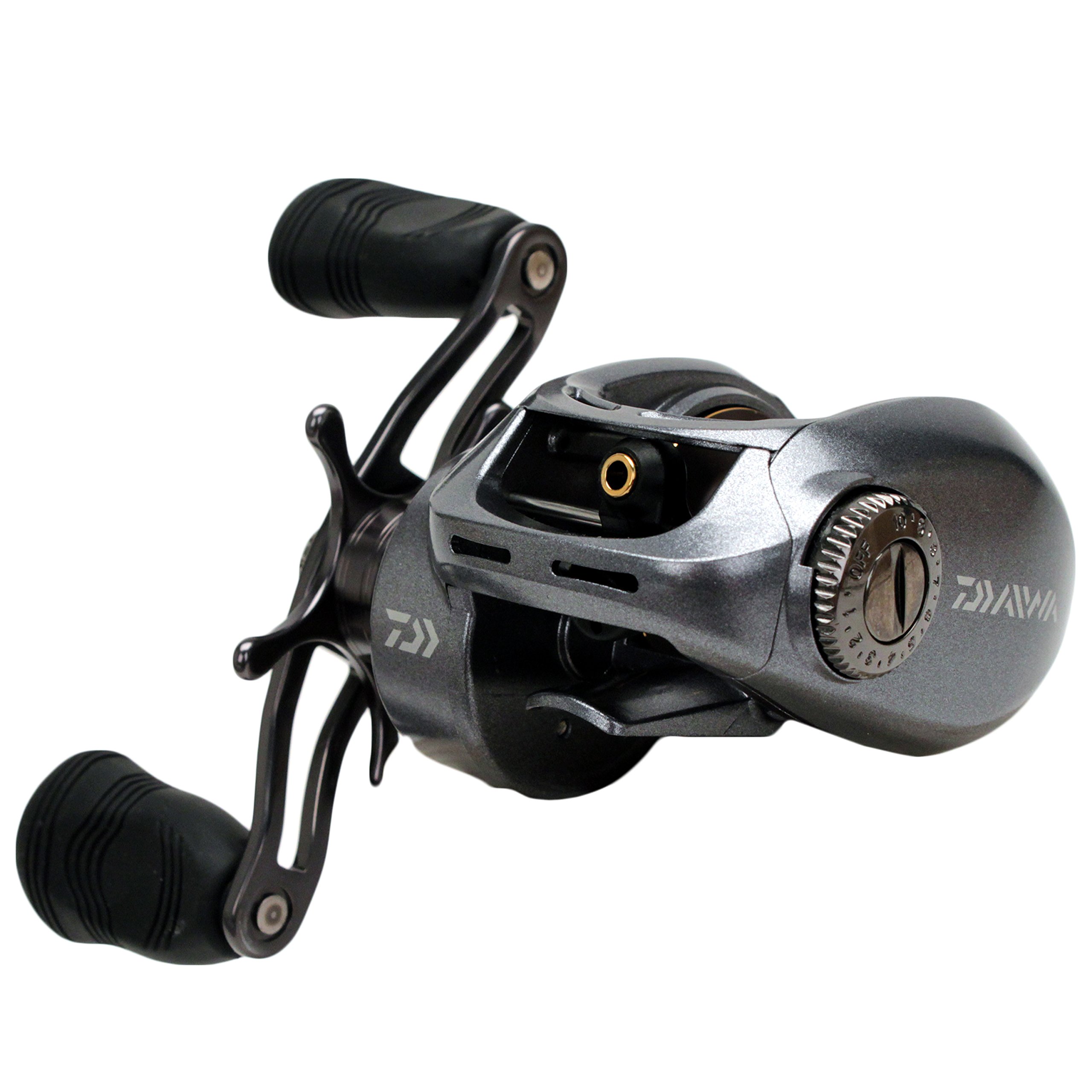

Figure 1: Daiwa Lexa 100 HSL Fishing Reel. This image shows the complete reel assembly, highlighting its compact design and left-hand retrieve configuration.
2. Setup
2.1 Unpacking and Inspection
Carefully remove the reel from its packaging. Inspect the reel for any visible damage that may have occurred during shipping. Ensure all components, including the handle and drag system, operate smoothly.
2.2 Spooling Fishing Line
- Attach the reel securely to a rod.
- Thread the fishing line through the rod guides and tie it to the reel spool using an appropriate knot (e.g., arbor knot).
- Begin winding the line onto the spool, maintaining light tension to ensure even and tight winding. Avoid overfilling the spool; leave a small gap from the spool lip. The reel has a line capacity of 135 meters of 0.285mm line.
2.3 Attaching to a Fishing Rod
Place the reel foot into the reel seat of your fishing rod. Tighten the reel seat nut firmly to secure the reel in place. Ensure the reel is oriented correctly for left-hand retrieve.
2.4 Drag Adjustment (UTD Drag System)
The Lexa 100 HSL features a powerful and progressive Ultimate Tournament Drag (UTD) system.
- To increase drag tension, turn the star drag knob clockwise.
- To decrease drag tension, turn the star drag knob counter-clockwise.
- Set the drag to approximately one-third of your line's breaking strength. Test the drag by pulling line directly from the spool.
3. Operation
3.1 Casting (MAGFORCE 3D)
The reel is equipped with the MAGFORCE 3D magnetic cast control system, which helps to minimize backlash and optimize casting distance.
- Adjusting Cast Control: Locate the MAGFORCE 3D dial on the side plate. Start with a higher setting for beginners or windy conditions to prevent backlash. Reduce the setting for longer casts as you gain experience.
- Engaging Spool: Press the thumb bar to disengage the spool.
- Casting Motion: Perform a smooth casting motion. As the lure approaches the water, feather the spool with your thumb to control the cast and prevent overruns.
- Engaging Retrieve: Once the lure hits the water, turn the handle slightly to re-engage the spool.
3.2 Retrieving
The Lexa 100 HSL features a high gear ratio of 7.1:1, providing a retrieve rate of 80 cm per turn, ideal for fast lure presentations and quick line pick-up.
- Turn the Swept Handle with Soft Touch anti-slip grips to retrieve your line.
- Maintain a steady retrieve speed appropriate for your lure and fishing technique.
- The left-hand retrieve configuration is designed for right-handed casters.
4. Maintenance
Regular maintenance will extend the life and performance of your Daiwa Lexa 100 HSL reel.
4.1 Cleaning After Use
- After each use, especially in saltwater, rinse the reel thoroughly with fresh water. Do not submerge the reel.
- Wipe the reel dry with a soft cloth.
- The CRBB (Corrosion Resistant Ball Bearings) provide enhanced protection against rust, but proper rinsing is still crucial.
4.2 Lubrication
- Apply a small amount of high-quality reel oil to moving parts such as the handle knobs, spool shaft, and level wind mechanism.
- Apply a thin layer of reel grease to the main gears periodically. Refer to a detailed service manual or consult a professional for internal lubrication.
4.3 Storage
Store your reel in a dry, cool place away from direct sunlight and extreme temperatures. Loosen the drag completely before storing to prevent compression of the drag washers.
5. Troubleshooting
This section addresses common issues you might encounter with your Lexa 100 HSL reel.
| Problem | Possible Cause | Solution |
|---|---|---|
| Frequent Backlash | Cast control too low, thumbing technique, line overfill. | Increase MAGFORCE 3D setting. Improve thumb control during cast. Ensure spool is not overfilled. |
| Stiff Retrieve | Lack of lubrication, dirt/debris, damaged gears. | Clean and lubricate moving parts. Inspect for debris. If gears are damaged, seek professional service. |
| Drag Slipping or Inconsistent | Drag washers wet/dirty, worn washers, improper adjustment. | Clean drag washers. Ensure drag is properly adjusted. If worn, replace drag washers (professional service recommended). |
| Clicking Noise During Retrieve | Debris in gears, loose parts, worn bearings. | Inspect for debris. Check for loose screws. If bearings are worn, professional service is required. |
6. Specifications
Key technical specifications for the Daiwa Lexa 100 HSL fishing reel:
- Model Number: LEXA100HSL
- Weight: 224 grams (approximately 7.9 ounces)
- Line Capacity (m/mm): 135m / 0.285mm
- Retrieve Rate (cm/turn): 80 cm
- Ball Bearings: 6 + 1 (including 2 CRBB - Corrosion Resistant Ball Bearings)
- Gear Ratio: 7.1:1
- Max Drag Power: 6 kg
- Handle Orientation: Left-hand retrieve
- Body Material: Aluminum
- Handle Material: Aluminum with Soft Touch anti-slip grips
- Dimensions (L x W x H): 12.95 x 11.43 x 6.6 cm (approx. 5.1 x 4.5 x 2.6 inches)
- UPC: 043178940457
7. Warranty & Support
7.1 Warranty Information
Daiwa products are manufactured to high standards and are backed by a limited warranty against defects in materials and workmanship. Specific warranty terms and duration may vary by region and purchase date. Please retain your proof of purchase for warranty claims. For detailed warranty information, refer to the documentation included with your product or visit the official Daiwa website.
7.2 Customer Support
If you encounter any issues not covered in this manual or require further assistance, please contact Daiwa customer support. Contact information can typically be found on the official Daiwa website or on your product packaging. When contacting support, please have your model number (LEXA100HSL) and purchase details ready.
