1. Introduction
The Zen Living ZL3 Air Purifier is designed to enhance your indoor air quality through a comprehensive 5-stage filtration and purification process. This device effectively removes airborne particles, odors, and microorganisms, contributing to a healthier living environment. It is particularly beneficial for individuals with allergies or asthma, pet owners, and those seeking to eliminate common household odors. The ZL3's purification stages include:
- Pre-filter: Captures larger airborne objects such as pet hair and dander.
- HEPA filtration: Scrubs 99.99% of micro particulate (dust particles, pollen etc.) as small as 0.5 microns from the air.
- UV-C sterilization: Ultraviolet light photons irradiate and kill micro-organisms including bacteria, mold spores and viruses.
- Negative Ion Generation: Helps to further purify the air by attracting and neutralizing airborne pollutants.
These stages work in conjunction to provide thorough air purification.
Figure 1: Zen Living ZL3 Air Purifier (Front View with Remote)
This image displays the front of the Zen Living ZL3 Air Purifier, showcasing its control panel, air outlet grille, and the included remote control. The unit features a dark finish with wood-grain side panels.
2. Safety Instructions
Please read all safety instructions carefully before operating the Zen Living ZL3 Air Purifier to prevent injury or damage to the unit.
- Always unplug the unit before cleaning, performing maintenance, or replacing filters.
- Do not operate the unit with a damaged cord or plug. If the cord or plug is damaged, contact customer support.
- Keep the air purifier away from water or moist environments. Do not immerse the unit in water or other liquids.
- Ensure proper ventilation around the unit. Do not block air inlets or outlets.
- Do not insert objects into any openings.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Use only genuine Zen Living replacement filters and UV-C lamps.
3. Package Contents
Verify that all items are present in the package:
- Zen Living ZL3 Air Purifier Unit
- Remote Control
- Pre-filter (pre-installed)
- HEPA Filter (pre-installed)
- UV-C Lamp (pre-installed)
- Power Cord
- Instruction Manual (this document)
4. Setup
4.1 Unpacking and Placement
- Carefully remove the air purifier from its packaging.
- Place the unit on a firm, level surface. Ensure there is at least 6 inches (15 cm) of clear space around all sides of the unit for optimal airflow.
- Avoid placing the unit near heat sources, direct sunlight, or in areas with excessive moisture.
4.2 Filter Preparation
The filters are typically pre-installed but may be sealed in plastic for freshness. Before first use, ensure all plastic packaging is removed from the filters.
- Locate the filter access panel, usually on the rear or side of the unit.
- Open the panel. You may need to press a latch or slide it open.
- Remove the pre-filter and HEPA filter. Check if they are wrapped in plastic. If so, remove all plastic packaging.
- Reinsert the filters in the correct order (pre-filter first, then HEPA filter). Ensure they are seated properly.
- Close the filter access panel securely.

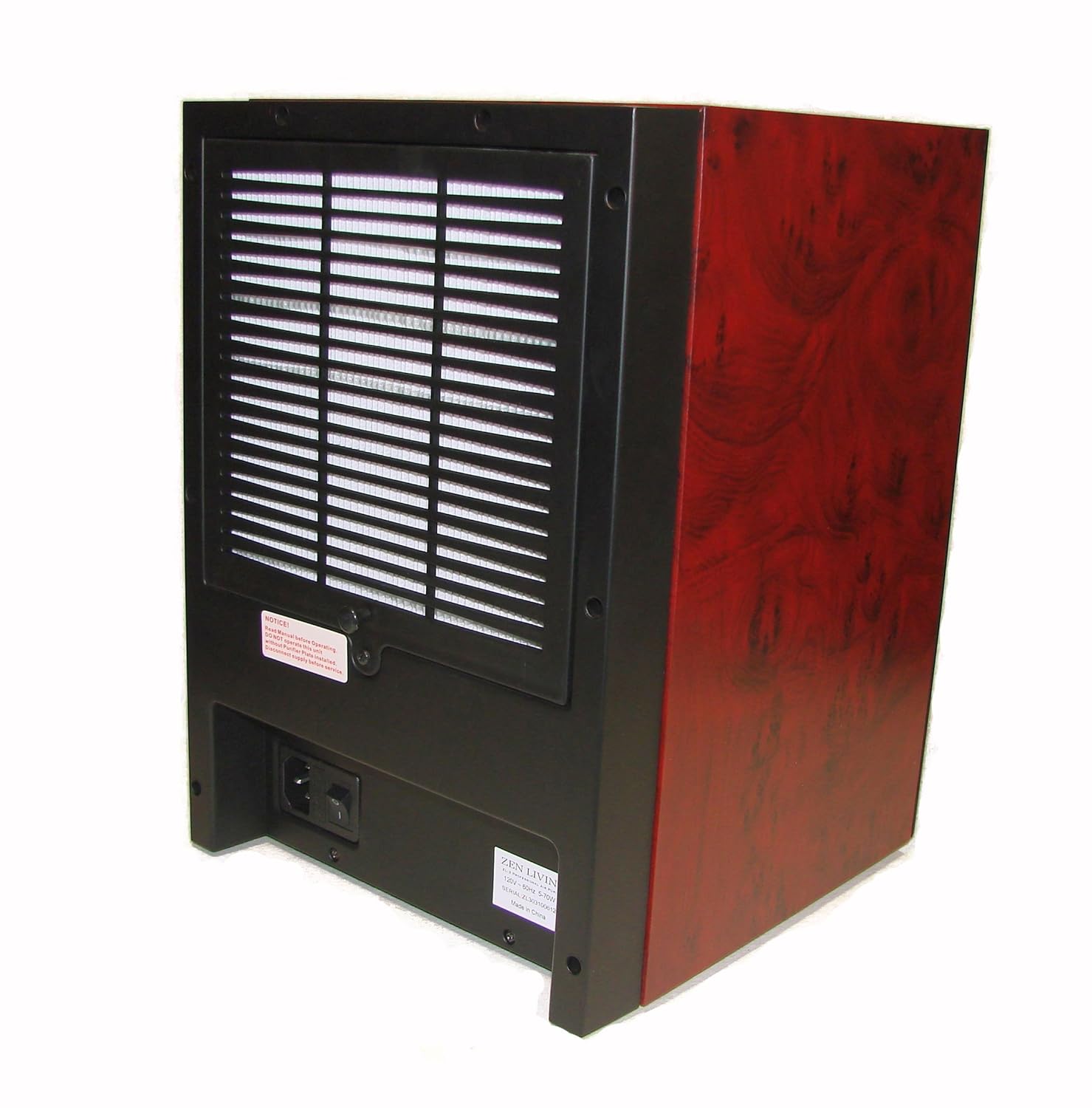

Figure 2: Zen Living ZL3 Air Purifier (Rear View)
This image shows the rear of the Zen Living ZL3 Air Purifier, highlighting the air intake grille and the filter access panel. The power cord inlet is also visible at the bottom.
4.3 Power Connection
Plug the power cord into a standard electrical outlet. The unit is now ready for operation.
5. Operating Instructions
The Zen Living ZL3 can be operated using the control panel on the unit or the included remote control.
5.1 Control Panel Overview
The control panel typically includes buttons for Power, Fan Speed, Purify Mode, UV-C, and Reset.
5.2 Basic Operation
- Power On/Off: Press the POWER button to turn the unit on or off.
- Fan Speed: Press the FAN button repeatedly to cycle through available fan speeds (e.g., Low, Medium, High).
- Purify Mode: The ZL3 utilizes 5 stages of purification. Press the PURIFY button to activate or deactivate specific purification stages like Negative Ion generation.
- UV-C Sterilization: Press the UV-C button to turn the ultraviolet sterilization lamp on or off. This stage helps kill bacteria, mold spores and viruses.
- Reset: After replacing filters or the UV-C lamp, press and hold the RESET button to clear the indicator light.
5.3 Remote Control
The remote control provides convenient access to all functions of the air purifier from a distance. Ensure the remote has working batteries and is pointed towards the unit's sensor.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your air purifier. Always unplug the unit before performing any maintenance.
6.1 Cleaning the Pre-filter
The pre-filter captures larger particles and should be cleaned regularly (e.g., every 2-4 weeks, depending on usage).
- Unplug the air purifier.
- Open the filter access panel.
- Remove the pre-filter.
- Use a vacuum cleaner with a brush attachment to remove dust and debris from the pre-filter. You may also gently rinse it with water if heavily soiled, ensuring it is completely dry before reinstallation.
- Reinstall the clean pre-filter and close the access panel.
6.2 HEPA Filter Replacement
The HEPA filter should be replaced approximately every 6-12 months, depending on usage and air quality. A filter indicator light on the control panel may illuminate when replacement is due.
- Unplug the air purifier.
- Open the filter access panel and remove the old HEPA filter.
- Dispose of the old filter responsibly.
- Insert a new, genuine Zen Living HEPA filter, ensuring it is correctly oriented.
- Close the access panel.
- Plug in the unit and press and hold the RESET button for 3-5 seconds to reset the filter indicator.
6.3 UV-C Lamp Replacement
The UV-C lamp typically lasts for several thousand hours of operation. Replace it when its effectiveness diminishes or if the UV-C indicator light suggests replacement.
- Unplug the air purifier.
- Access the UV-C lamp compartment (refer to specific diagrams in a full manual if available, usually near the filters).
- Carefully remove the old UV-C lamp. Do not touch the glass part of the new lamp with bare hands.
- Insert the new UV-C lamp.
- Close the compartment.
- Plug in the unit and reset the UV-C indicator if applicable.
6.4 Exterior Cleaning
Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on. | No power supply. Power cord not securely plugged in. | Check if the power outlet is working. Ensure the power cord is firmly connected to both the unit and the outlet. |
| Reduced airflow or poor purification. | Clogged pre-filter. Clogged or old HEPA filter. | Clean the pre-filter. Replace the HEPA filter. |
| Unusual noise from the unit. | Filters not installed correctly. Obstruction in the fan. | Ensure filters are properly seated. Unplug the unit and check for any foreign objects. |
| Odor persists. | Filters need replacement. UV-C lamp not active or needs replacement. | Replace HEPA/Activated Carbon filter. Ensure UV-C function is on; replace lamp if necessary. |
8. Specifications
- Brand: ZEN LIVING
- Model Number: ZL3
- Filter Type: HEPA
- Specification Met: Certified HEPA
- Particle Retention Size: 0.5 Micrometer
- Control Method: Touch, Remote Control
- Power Source: Corded Electric
- UPC: 765573629613
- ASIN: B008K26SEM
9. Warranty and Support
For detailed warranty information, please refer to the warranty card included with your purchase or visit the official ZEN LIVING website. For technical support or inquiries regarding replacement parts, please contact ZEN LIVING customer service.
Contact information is typically provided on the product packaging or manufacturer's website.
