Introduction
The Pentair GW7900 Automatic Pool Cleaner for Kreepy Krauly SandShark Inground Swimming Pool is designed to provide efficient and thorough cleaning of your inground swimming pool. This manual provides essential information for the proper setup, operation, and maintenance of your pool cleaner.
Key Features
- Automatic pool cleaner for inground swimming pools.
- Exclusive SmartTrac programmed steering system maneuvers around tight corners, ladders, and obstacles to assure fast, thorough cleaning performance.
- Cleans faster than random-style cleaners, reducing the possibility of missed spots.
- Vac port door fitting has a spring-loaded cover for added safety and must be opened with a tool.
- Measures 13-inch length by 13-inch width by 13-inch height.
Setup
Follow these steps to set up your Pentair Kreepy Krauly SandShark pool cleaner:
- Remove the pool cleaner from its packaging.
- Clean all removable parts with warm, soapy water.
- Connect the hose to the cleaner and the other end to the skimmer or vacuum line.
- Ensure the vac port door fitting has a spring-loaded cover for added safety.
- Open the vac port door fitting with a tool.
- Place the cleaner in the pool and turn on the pump.

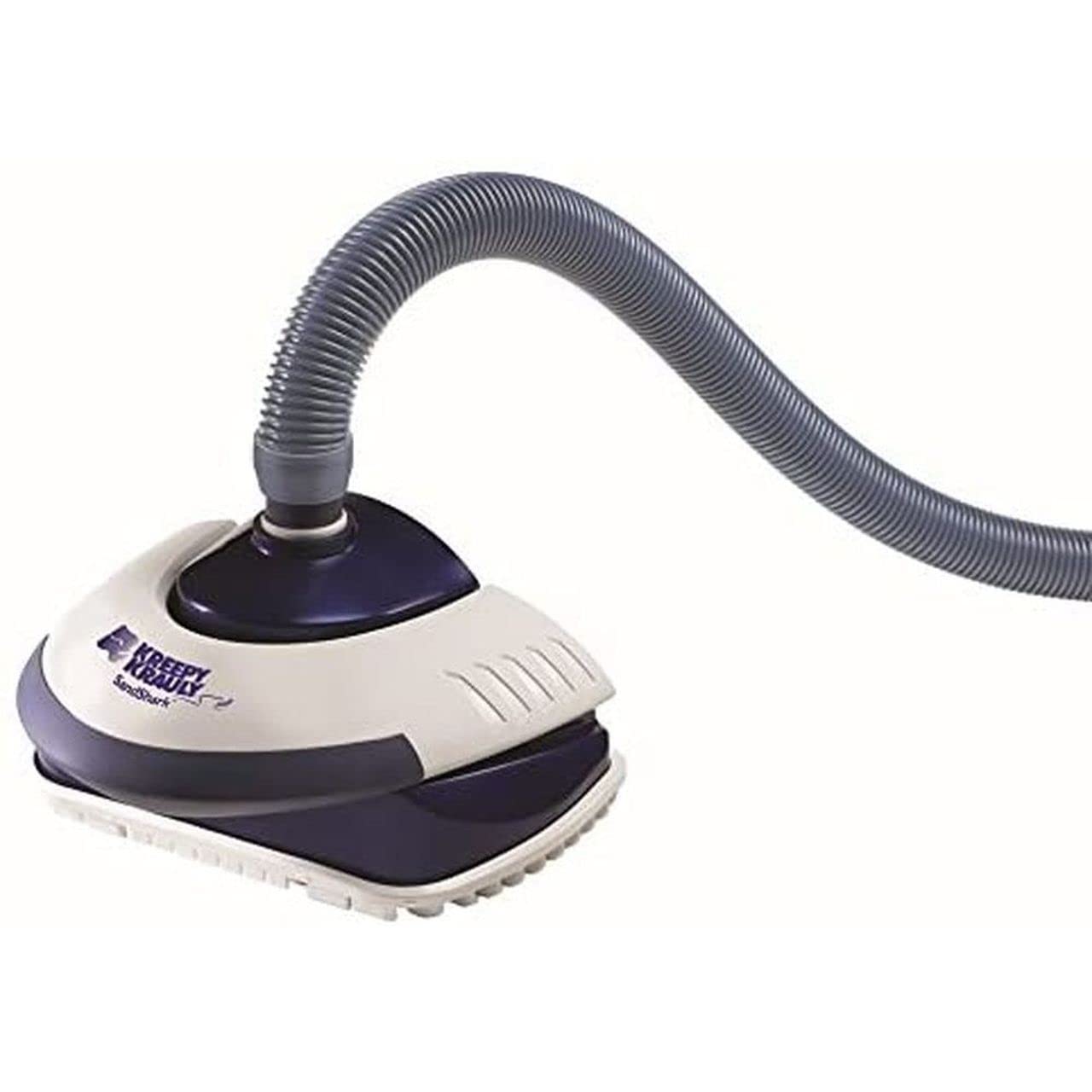

Figure 1: Pentair Kreepy Krauly SandShark cleaner head with the hose connected, ready for deployment.
The installation process is straightforward, primarily involving connecting the hose sections to the cleaner head and then to your pool's suction point (skimmer or dedicated vacuum port).
Operating
The SandShark utilizes an exclusive SmartTrac programmed steering system to navigate your pool. This system allows the cleaner to maneuver effectively around tight corners, ladders, and other obstacles, ensuring fast and thorough cleaning performance. It is designed to clean faster than random-style cleaners, minimizing the chance of missing spots on your pool's surfaces.
The cleaner operates by moving across the pool floor and walls. For optimal performance, it is crucial to adjust the suction power correctly. The product includes a suction gauge with a yellow indicator to assist with this adjustment. If the suction is too high, the SandShark may lift or 'jump' out of the water. Adjust the suction until the indicator is within the recommended range for consistent operation.
Maintenance
Proper maintenance ensures the longevity and efficiency of your SandShark pool cleaner. The hoses should be stored flat and straight when not in use to prevent bending or kinking, which can affect the cleaner's movement and performance. It is also recommended to remove the cleaner from the water when shocking your pool to protect its components from harsh chemicals.
Troubleshooting
If your SandShark cleaner is not performing optimally, consider the following:
- Poor Cleaning Performance or Getting Stuck: Ensure the suction power is correctly adjusted using the provided suction gauge. Incorrect suction can cause the cleaner to move erratically, miss spots, or get stuck.
- Hose Kinking: Check the hoses for any bends or kinks. Hoses should be stored flat and straight when not in use to maintain their shape and allow for smooth operation.
- Inability to Climb Walls: Verify that the pool pump is running at an adequate speed and that the suction is properly adjusted. Some pool designs with very steep steps or walls may not allow the cleaner to climb completely.
Specifications
- Power Source: Corded Electric
- Item Weight: 14 Pounds
- Assembly Required: No
- Control Method: Touch
- Warranty Type: Limited
- Efficiency: Fast cleaning performance
- Installation Type: Physical installation
- UPC: 788379789503
- Product Dimensions: 13 x 13 x 13 inches (13"L x 13"W x 13"H)
- Manufacturer: Pentair
- Item model number: GW7900
- Brand: Pentair
- Model Name: GW7900
- Material: Metal, Plastic
- Color: Blue
Warranty & Support
For detailed warranty information and customer support, please refer to the official Pentair website or contact their customer service directly. Keep your purchase receipt for warranty claims.
