Supco RCO420 RCO Series Start Relay Instruction Manual

Introduction

This manual provides essential information for the safe and effective installation, operation, and maintenance of the Supco RCO420 RCO Series Start Relay. Please read these instructions thoroughly before proceeding with any installation or service.

Safety Information

WARNING: Electrical components can cause serious injury or death. Always disconnect power to the appliance before installing, servicing, or removing this device. Installation should only be performed by a qualified technician. Failure to follow these instructions can result in electric shock, fire, or other hazards.

• Ensure the power supply is completely disconnected before handling the relay.
• Verify that the replacement relay specifications match the original component.
• Wear appropriate personal protective equipment (PPE), including insulated gloves and safety glasses.
• Do not operate the appliance with damaged wiring or components.

Product Overview

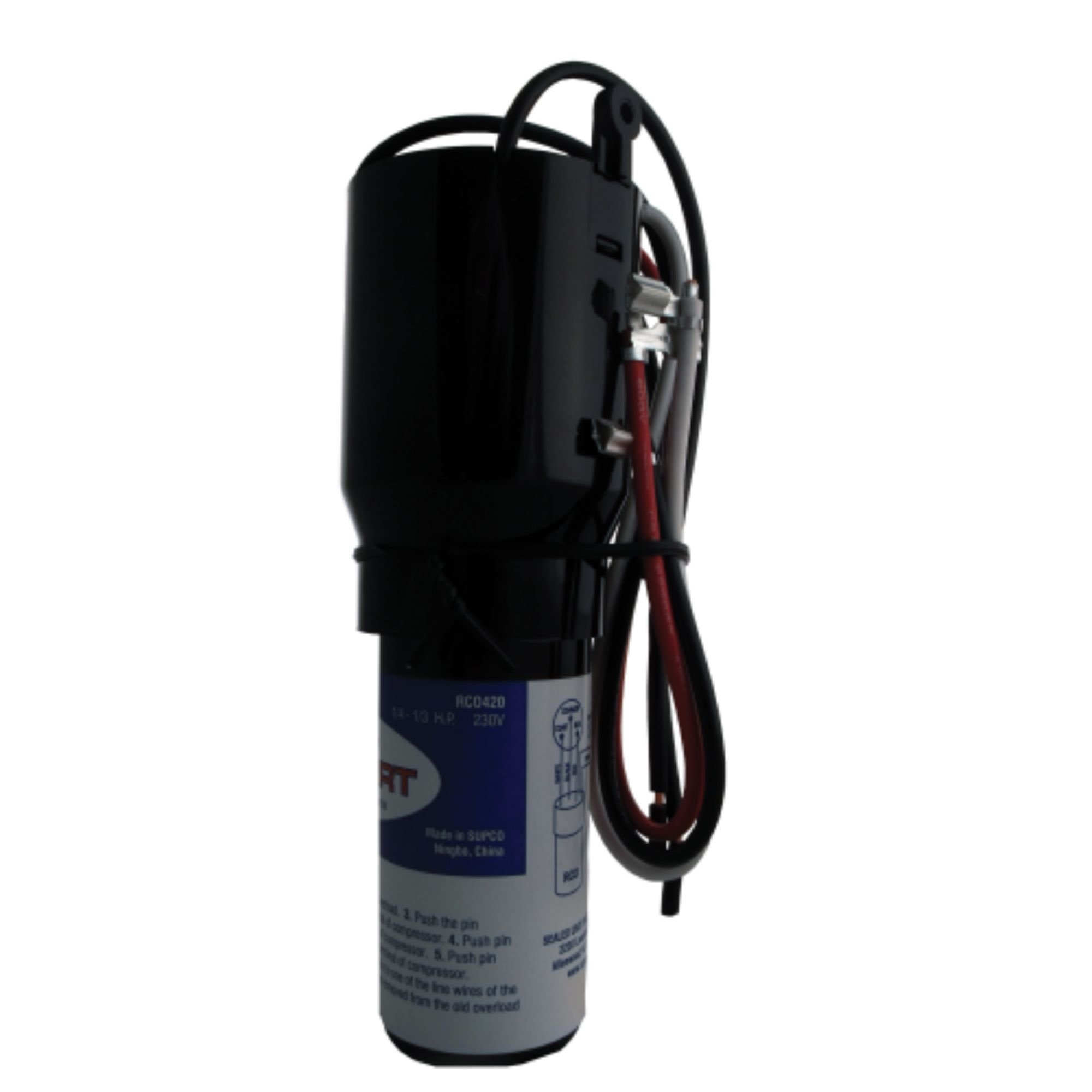

The Supco RCO420 RCO Series Start Relay is designed to provide a starting boost for refrigeration and air conditioning compressors. It is a critical component that assists the compressor motor in overcoming initial inertia during startup. This particular model is rated for 1/4 to 1/3 HP compressors and operates on a 230V electrical supply.

Setup and Installation

Follow these steps carefully to install the Supco RCO420 Start Relay:

1. Disconnect Power: Ensure the main power supply to the appliance is completely disconnected at the circuit breaker or fuse box. Verify with a voltage tester.
2. Access Compressor: Locate and access the compressor compartment of your appliance.
3. Remove Old Relay: Carefully disconnect the wiring from the old start relay. Note the position and connection of each wire. Remove the old relay from its mounting.
4. Connect New Relay: Connect the wires from the appliance to the corresponding terminals on the new Supco RCO420 relay. Ensure secure connections. The relay typically has terminals for the run winding, start winding, and common (line) connections. Refer to the wiring diagram of your appliance if available.
5. Mount Relay: Securely mount the new RCO420 relay in the same position as the old one.
6. Restore Power: Once all connections are secure and the relay is properly mounted, restore power to the appliance.
7. Test Operation: Observe the appliance's operation to ensure the compressor starts correctly.

Note: The label on the relay indicates connection points, often involving pushing pins into specific terminals. Ensure these connections are firm and correct.

Operating Instructions

The Supco RCO420 Start Relay operates automatically. When the appliance calls for cooling, the relay engages to provide the necessary starting torque to the compressor motor. Once the motor reaches a certain speed, the relay disengages, allowing the compressor to run on its main winding. No manual intervention is required for its operation.

Maintenance

The RCO420 Start Relay is a sealed unit and generally requires no routine maintenance. However, periodic inspection of the relay and its connections is recommended during appliance servicing:

• Visual Inspection: Check for any signs of physical damage, discoloration, or burning on the relay housing or wires.
• Connection Integrity: Ensure all electrical connections are tight and free from corrosion. Loose connections can lead to overheating and premature failure.
• Cleanliness: Keep the area around the relay free from dust and debris to prevent overheating.

Troubleshooting

If your appliance's compressor is not starting or is exhibiting unusual behavior, the start relay may be a contributing factor. Here are some common issues and troubleshooting steps:

• Compressor Not Starting: If the compressor hums but does not start, or if there is no sound at all, the start relay might be faulty.
• Clicking Sound: A repeated clicking sound from the relay area without the compressor starting often indicates a failed relay or an issue with the compressor itself.
• Overheating: A relay that is hot to the touch (beyond normal operating temperature) may be failing.

Troubleshooting Steps:

1. Disconnect Power: Always disconnect power before inspecting.
2. Inspect Relay: Look for visible signs of damage, such as cracks, burns, or melted plastic.
3. Test Continuity: A qualified technician can use a multimeter to test the continuity of the relay's internal components.
4. Check Compressor: Ensure the compressor motor itself is not seized or shorted, as a faulty compressor can also cause relay failure.

If the relay is determined to be faulty, it should be replaced with a new Supco RCO420 or an equivalent compatible part.

Specifications

Warranty and Support

For warranty information or technical support regarding your Supco RCO420 RCO Series Start Relay, please refer to the documentation provided with your appliance or contact Supco directly through their official website or customer service channels. Keep your purchase receipt for warranty claims.
