Important Safety Instructions
Please read and understand all instructions before beginning installation. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- WARNING: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installation, servicing, or changing bulbs.
- Consult a qualified electrician if you are unsure about wiring procedures.
- Ensure all electrical connections are secure and correct according to local electrical codes.
- This fixture is designed for Indoor Use Only.
- Do not exceed the maximum wattage specified for the bulb.
- Handle glass components with care to prevent breakage.
Package Contents
Verify that all components are present before discarding packaging materials.
- Pendant Light Fixture (1)
- Mounting Hardware Kit (1)
- Instruction Manual (1)
Setup and Installation
Tools Required: Phillips head screwdriver, flathead screwdriver, wire strippers, electrical tape, safety glasses.
1. Preparation
- Turn off power at the main circuit breaker or fuse box.
- Carefully unpack all components and inspect for any damage.
- Identify all parts against the package contents list.
2. Mounting the Fixture
This fixture supports both pendant and semi-flush mount installation. Follow the steps below for your desired mounting type.
- Attach the mounting bracket to the junction box in the ceiling using the provided screws. Ensure the bracket is securely fastened.
- Adjust the length of the pendant cord if necessary. For semi-flush mounting, minimize the cord length.
3. Wiring Connections
Connect the fixture wires to the household electrical wires as follows:
- Connect the black (Live) wire from the fixture to the black (Live) wire from the junction box.
- Connect the white (Neutral) wire from the fixture to the white (Neutral) wire from the junction box.
- Connect the green or bare copper (Ground) wire from the fixture to the green or bare copper (Ground) wire from the junction box.
- Secure all connections with wire nuts and wrap with electrical tape for added safety.
4. Securing the Fixture
- Carefully tuck all wires into the junction box.
- Align the fixture canopy with the mounting bracket and secure it using the provided screws or decorative nuts.
- Install one E27 base incandescent bulb (maximum 60 watts) into the socket. Do not overtighten.

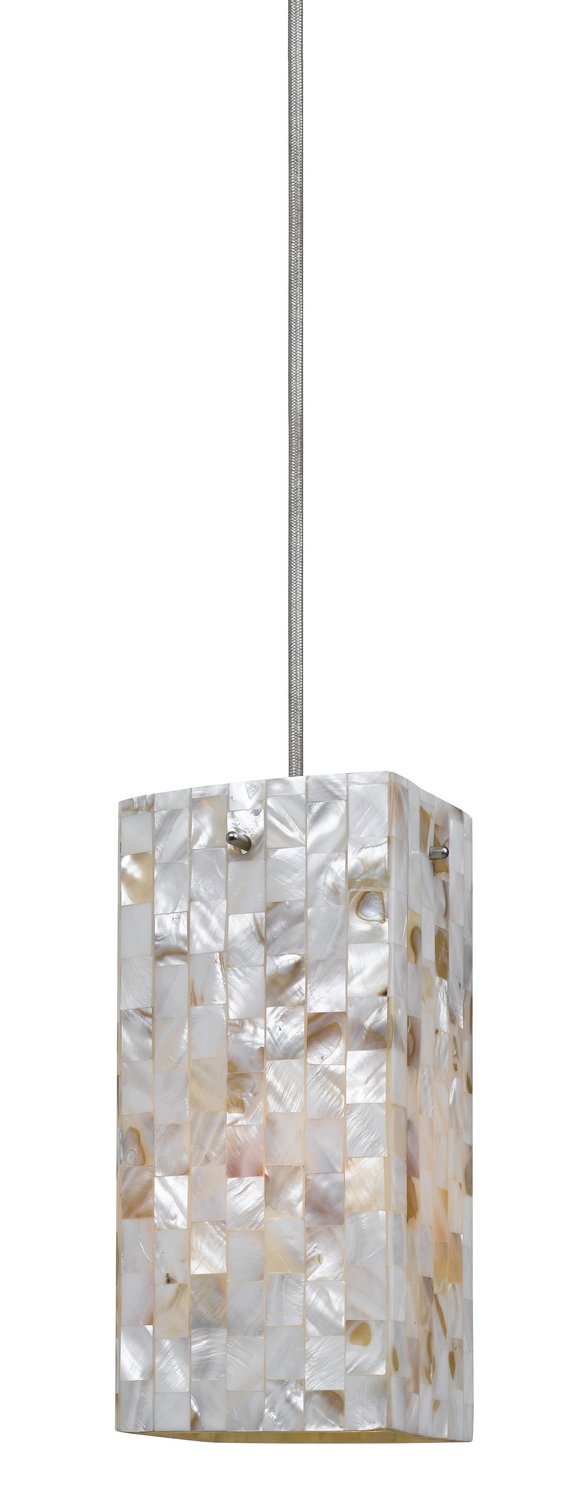

Image: The Cal Lighting UP-1029/6-BS Contemporary Modern One Light Pendant. This image shows the overall design of the pendant light, featuring its metal finish and glass shade, providing a visual reference for the product.
Operating Instructions
Once installation is complete and power is restored, the pendant light can be operated.
- Power On/Off: This fixture is designed to be controlled by a standard wall switch (not included) or a compatible touch/push button controller connected to your electrical system.
- Bulb Type: Use one E27 base incandescent bulb, not exceeding 60 watts.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your pendant light.
- Cleaning: To clean the fixture, ensure power is off. Wipe with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or glass.
- Bulb Replacement: Turn off power at the circuit breaker. Allow the bulb to cool completely before attempting to remove it. Unscrew the old E27 bulb and screw in a new one (max 60W incandescent). Restore power.
Troubleshooting
If you experience issues with your pendant light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not illuminate | No power to the fixture; Loose wiring connection; Faulty bulb; Faulty switch. | Check circuit breaker; Verify all wire connections are secure; Replace bulb; Test switch. |
| Light flickers | Loose bulb; Loose wiring connection; Incorrect bulb type/wattage. | Tighten bulb; Check wiring connections; Ensure correct E27 60W incandescent bulb is used. |
| Fixture hums | Loose wiring; Incompatible dimmer switch (if applicable). | Check all wiring connections; Ensure dimmer switch is compatible with incandescent fixtures. |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
- Model: UP-1029/6-BS (CALUP-1029/6-BS)
- Brand: Cal Lighting
- Dimensions (L x W x H): 4.38" x 3.88" x 9.9"
- Item Weight: 9.4 pounds
- Material: Metal, Glass
- Finish: Pewter, Nickel, Silver (Steel Lighting)
- Light Fixture Form: Pendant
- Indoor/Outdoor Usage: Indoor
- Power Source: Corded Electric
- Installation Type: Semi Flush Mount / Pendant
- Control Method: Touch / Push Button (via external switch)
- Light Source Type: Incandescent
- Number of Light Sources: 1
- Voltage: 120 Volts
- Wattage: Max 60 watts
- Bulb Base: E27
- Assembly Required: Yes
- Certification: UL Listed
Warranty and Support
This Cal Lighting product comes with a 1-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
The warranty does not cover damage caused by improper installation, accident, misuse, abuse, or unauthorized modifications.
For technical assistance, warranty claims, or to inquire about replacement parts, please contact Cal Lighting customer service. Please have your model number (UP-1029/6-BS) and proof of purchase available when contacting support.
