Lincoln Electric K2651-4 Magnum PRO 250 Semiautomatic Welding Gun User Manual

1. Product Overview

The Lincoln Electric K2651-4 Magnum PRO 250 Semiautomatic Welding Gun is designed for MIG, pulsed MIG, and flux-cored welding processes. This industrial-grade gun is rated for 250 Amperes at a 100% duty cycle, ensuring reliable performance for demanding applications. It features a 25-foot cable, a Comfort Grip handle for improved ergonomics, and Copper Plus contact tips engineered for extended life through enhanced heat dissipation.

This manual provides essential information for the safe and effective operation, setup, and maintenance of your welding gun.

2. Key Features

• 100% Duty Cycle Rating: Ensures continuous operation under specified load conditions.
• Industrial Grade Construction: Built for durability and longevity in demanding welding environments.
• Lincoln Electric Copper Plus Contact Tips: Features a larger tip diameter and mass for improved heat dissipation, extending tip life.
• Comfort Grip Handle: Barrel-style design allows for multiple hand positions and a comfortable, secure grip during operation.
• Lincoln PRO Select Gun Selection System: Designed to help users choose the appropriate gun based on actual welding amperage and application requirements.

3. Setup and Installation

Proper setup is crucial for safe and efficient welding. Follow these steps to prepare your Magnum PRO 250 welding gun for use.

3.1 Unpacking and Inspection

Carefully remove the welding gun from its packaging. Inspect all components for any signs of shipping damage. Ensure the following items are present:

• Magnum PRO 250 Semiautomatic Welding Gun (K2651-4)
• 0.625 in. (15.9 mm) Thread-On Gas Nozzle with 1/8 in. (3.2 mm) recess (KP2742-1-62R)
• Contact Tip (Qty. 1) (KP2744-045)
• Thread-On Diffuser (KP2746-1)

3.2 Attaching Components

1. Install the Diffuser: Thread the diffuser (KP2746-1) onto the gun neck until it is snug.
2. Install the Contact Tip: Thread the contact tip (KP2744-045) into the diffuser. Ensure it is tightened securely but do not overtighten.
3. Install the Gas Nozzle: Thread the gas nozzle (KP2742-1-62R) onto the gun neck over the diffuser and contact tip. Ensure it is firmly seated.

Figure 1: Close-up of the welding gun head showing the assembled nozzle, contact tip, and diffuser.

3.3 Connecting to the Welder

Connect the welding gun's cable assembly to the appropriate receptacle on your compatible Lincoln Electric welding machine. Ensure the connection is secure and properly seated to prevent electrical arcing or gas leaks. Refer to your welding machine's manual for specific connection instructions.

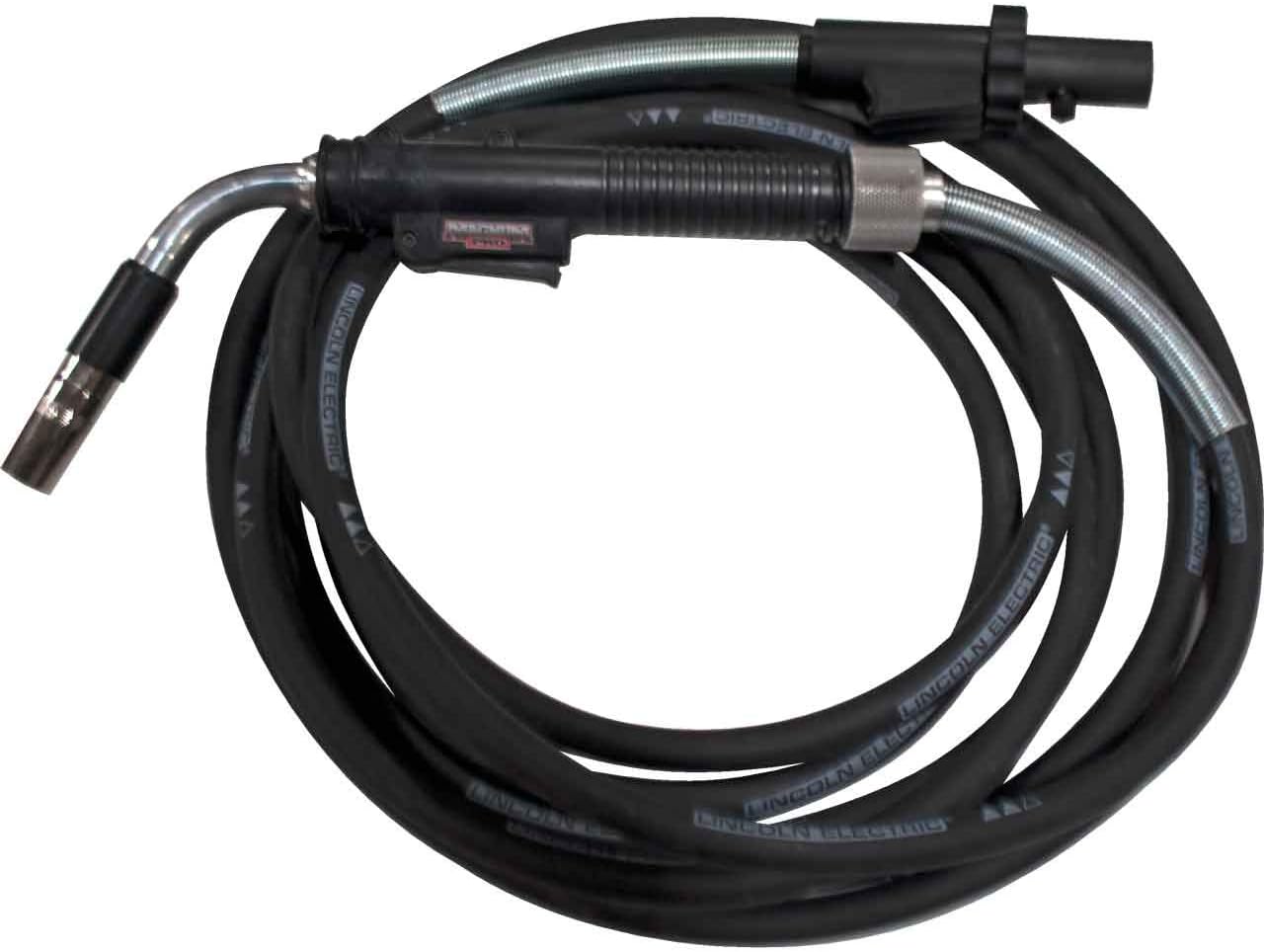

Figure 2: The Lincoln Electric K2651-4 Magnum PRO 250 Semiautomatic Welding Gun.

4. Operating Instructions

Before operating, ensure all safety precautions outlined in your welding machine's manual and general welding safety guidelines are followed. Always wear appropriate Personal Protective Equipment (PPE), including a welding helmet, gloves, and protective clothing.

4.1 Wire Feed and Gas Supply

1. Load Welding Wire: Follow your welding machine's instructions to properly load the welding wire through the gun's liner. Ensure the wire diameter matches the contact tip and drive rolls.
2. Connect Gas Supply: If using MIG welding, connect the shielding gas cylinder to your welding machine and ensure the gas flow rate is set correctly for your application.

4.2 Welding Process

The Magnum PRO 250 gun is designed for semiautomatic welding. When the trigger is pressed, the welding wire feeds automatically, and shielding gas (if applicable) flows. Maintain a consistent travel speed, arc length, and gun angle for optimal weld quality.

• Trigger Operation: Press the trigger to initiate wire feed and arc. Release to stop.
• Gun Angle: Typically, a push angle (gun angled slightly forward in the direction of travel) is used for MIG welding.
• Workpiece Connection: Ensure a good electrical connection between the welding machine's work clamp and the workpiece.

5. Maintenance

Regular maintenance extends the life of your welding gun and ensures consistent performance.

5.1 Daily Checks

• Inspect Contact Tip: Check for wear, spatter buildup, or an enlarged bore. Replace if necessary.
• Inspect Gas Nozzle: Clean any spatter from the nozzle. Ensure gas orifices are clear.
• Check Liner: Ensure the wire liner is free from kinks or blockages that could impede wire feed.
• Cable Condition: Inspect the entire cable assembly for cuts, abrasions, or damage.

5.2 Periodic Maintenance

• Liner Replacement: Replace the wire liner periodically, especially if wire feeding issues persist after cleaning.
• Diffuser Cleaning/Replacement: Clean or replace the gas diffuser if it becomes clogged or damaged.
• Connection Points: Ensure all electrical and gas connections remain tight and free of corrosion.

6. Troubleshooting

This section addresses common issues you might encounter during operation.

For further assistance, consult your welding machine's manual or contact Lincoln Electric customer support.

7. Specifications

8. Warranty and Support

For specific warranty information regarding your Lincoln Electric K2651-4 Magnum PRO 250 Semiautomatic Welding Gun, please refer to the documentation provided with your original purchase or visit the official Lincoln Electric website. Lincoln Electric offers comprehensive customer support for their products.

For technical assistance, parts, or service, please contact Lincoln Electric directly through their official channels. Always provide your product model number (K2651-4) and serial number when seeking support.

Lincoln Electric Official Website: www.lincolnelectric.com
