Introduction
This manual provides essential information and instructions for the proper installation and maintenance of the DEWALT 397616-00 Replacement Wheel Flange. This component is designed to ensure the correct and safe operation of compatible DEWALT angle grinders. Please read this manual thoroughly before attempting any installation or use.
Product Overview
The DEWALT 397616-00 is an inner wheel flange designed for specific DEWALT 5-inch angle grinders. It plays a critical role in securing the grinding wheel to the tool's spindle, ensuring stability and safety during operation.

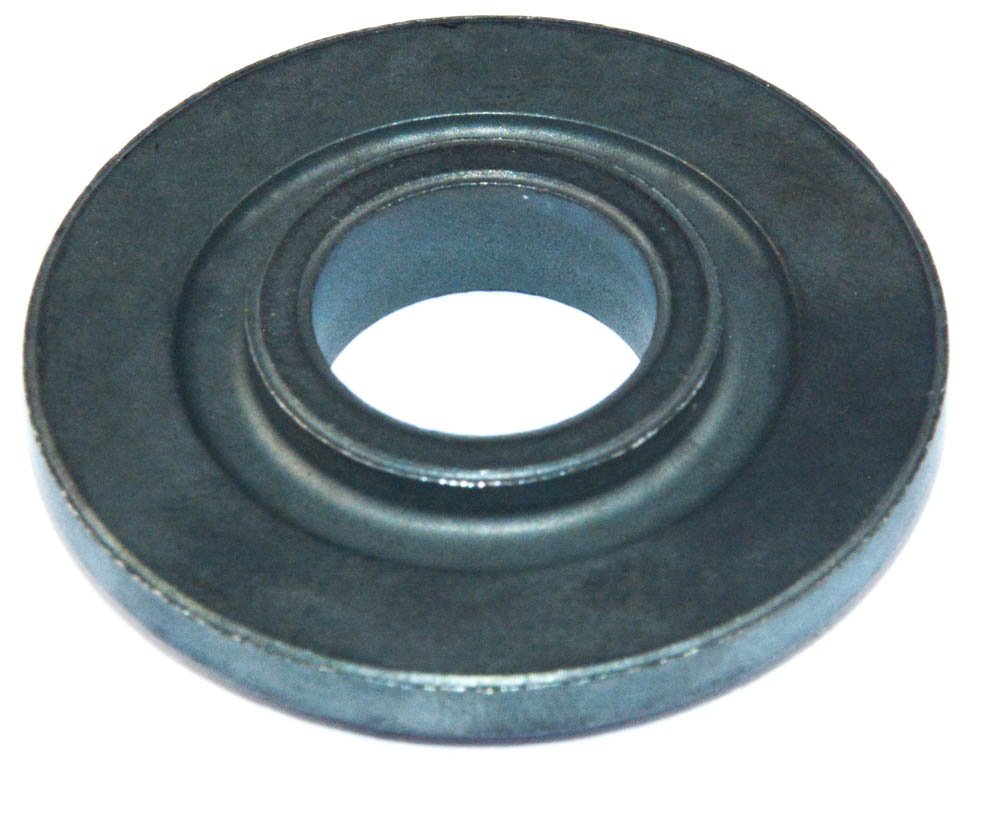

Image of the DEWALT 397616-00 Replacement Wheel Flange, showing its circular shape and central bore, designed to fit the angle grinder spindle.
Key Features:
- Inner flange design.
- Specifically designed for 5-inch angle grinders.
- Constructed from durable metal for secure wheel retention.
Compatibility
This replacement wheel flange is compatible with the following DEWALT angle grinder models:
- DC410KA Type 1
- DW402 Type 4, Type 5, Type 6
- DW402G Type 4, Type 6
- DW402K Type 4, Type 5, Type 6
- DW802 Type 1
- DW802G Type 1
- DW818 Type 4, Type 5
- DW821 Type 4, Type 5
- DW824 Type 4, Type 5
- DW827 Type 1, Type 2
- DW831 Type 3, Type 4
Always verify your specific tool model and type before installing any replacement parts.
Installation
Safety First: Always disconnect the angle grinder from its power source before performing any maintenance or part replacement.
- Prepare the Grinder: Ensure the angle grinder is clean and free of debris around the spindle area.
- Remove Old Flange (if present): If replacing an existing flange, use the appropriate wrench to loosen and remove the outer flange and grinding wheel. Then, remove the old inner flange from the spindle.
- Install New Flange: Slide the new DEWALT 397616-00 Replacement Wheel Flange onto the grinder's spindle. Ensure it seats fully and correctly against the gear housing.
- Mount Grinding Wheel: Place the grinding wheel onto the spindle, ensuring it sits flush against the inner flange.
- Secure Outer Flange: Install the outer flange and tighten it securely with the appropriate wrench. Do not overtighten.
- Verify Installation: Gently spin the grinding wheel by hand to ensure it is properly seated and rotates freely without wobble.
Refer to your angle grinder's specific instruction manual for detailed safety precautions and assembly procedures.
Operation
Once the DEWALT 397616-00 Replacement Wheel Flange is correctly installed and the grinding wheel is securely attached, the angle grinder can be operated according to its original manufacturer's instructions. The flange ensures the grinding wheel is held firmly in place, which is crucial for safe and effective material removal.
Maintenance
Regular inspection of the wheel flange is recommended to ensure continued safe operation:
- Visual Inspection: Before each use, visually inspect the flange for any signs of wear, cracks, deformation, or corrosion.
- Cleanliness: Keep the flange and spindle area clean from dust, grinding debris, and other foreign materials that could interfere with proper seating.
- Replacement: If the flange shows any signs of damage or excessive wear, replace it immediately with a genuine DEWALT replacement part to prevent potential hazards.
Troubleshooting
If you encounter issues related to the wheel flange, consider the following:
- Grinding Wheel Wobbles: Ensure the inner flange is fully seated on the spindle and the outer flange is tightened correctly. Verify that the grinding wheel is compatible and not damaged.
- Grinding Wheel Not Seating: Check for any debris on the spindle or flange surfaces. Confirm that the flange is the correct model for your angle grinder.
- Difficulty Tightening/Loosening: Ensure the spindle lock is engaged when tightening or loosening the outer flange. Do not use excessive force.
If problems persist, discontinue use and consult a qualified service technician or DEWALT customer support.
Specifications
| Model Number | 39761600 |
| Brand | DEWALT |
| Compatible Devices | Angle Grinder |
| Material | Metal |
| Item Dimensions (L x W x H) | 1 x 1 x 1 inches |
| Item Weight | 0.05 Pounds |
| UPC | 704660030451 |
Warranty Information
This DEWALT replacement part is covered by the standard DEWALT warranty policy. For detailed information regarding warranty terms, conditions, and registration, please refer to the official DEWALT website or contact DEWALT customer service directly. Keep your proof of purchase for warranty claims.
Customer Support
For technical assistance, questions regarding installation, or any other product-related inquiries, please contact DEWALT customer support. You can find contact information, including phone numbers and online support resources, on the official DEWALT website: www.dewalt.com.
