1. Introduction
This manual provides essential instructions for the safe and effective use of your Medline Lightweight Foldable Transport Wheelchair. Please read all instructions carefully before initial use and retain this manual for future reference.
The Medline Lightweight Transport Wheelchair is designed for easy and safe travel. It features a durable, lightweight aluminum frame, handbrakes, and 12-inch rear wheels for enhanced maneuverability. The compact, easy-fold design allows for convenient storage and transport.
Image 1.1: The Medline Lightweight Foldable Transport Wheelchair, featuring a blue frame and black upholstery.
2. Setup and Initial Preparation
Your Medline Transport Wheelchair requires no assembly. It arrives ready for use. Follow these steps for initial preparation:
- Unboxing and Inspection: Carefully remove the wheelchair from its packaging. Inspect all components to ensure they are present and undamaged.
- Unfolding the Wheelchair: Gently pull the sides of the wheelchair apart until the seat is fully extended and locked into place. Ensure all locking mechanisms are engaged.
- Footrest Adjustment: The swing-away, detachable footrests can be adjusted to a comfortable position or removed if necessary. To attach, align the footrest pins with the receiving tubes on the frame and push down until they lock. To remove, lift the release lever and pull the footrest upwards.
Image 2.1: Demonstrates the adjustment and detachment of the swing-away footrests.
3. Operating Instructions
3.1. Safe Transfers
- Before transferring a user into or out of the wheelchair, always engage both the hand brakes and the rear-wheel manual locking brakes to prevent movement.
- Ensure the user is positioned securely in the seat.
- Fasten the seatbelt for added safety during transit.
3.2. Using the Handbrakes
The wheelchair is equipped with easy-to-use handbrakes for the attendant. These brakes provide control and security during operation.
- To Engage (Slow Down/Stop): Squeeze the handbrake levers gently to slow down or firmly to stop the wheelchair.
- To Lock (Parking Brake): Push the handbrake levers downwards until they click into the locked position. This prevents the wheelchair from moving when stationary.
- To Release: Pull the handbrake levers upwards to disengage the lock and allow the wheelchair to move freely.
Image 3.1: Illustration of the handbrake mechanism, showing how to engage and release the lock.
3.3. Maneuvering the Wheelchair
The large 12-inch rear wheels and swivel front wheels are designed for smooth navigation.
- Push the handrims to propel the wheelchair.
- Utilize the swivel front wheels to navigate around tight corners, doorways, or ramps with ease.
- Be mindful of uneven surfaces. For optimal stability on rough terrain, it is recommended to approach obstacles with the larger rear wheels first.

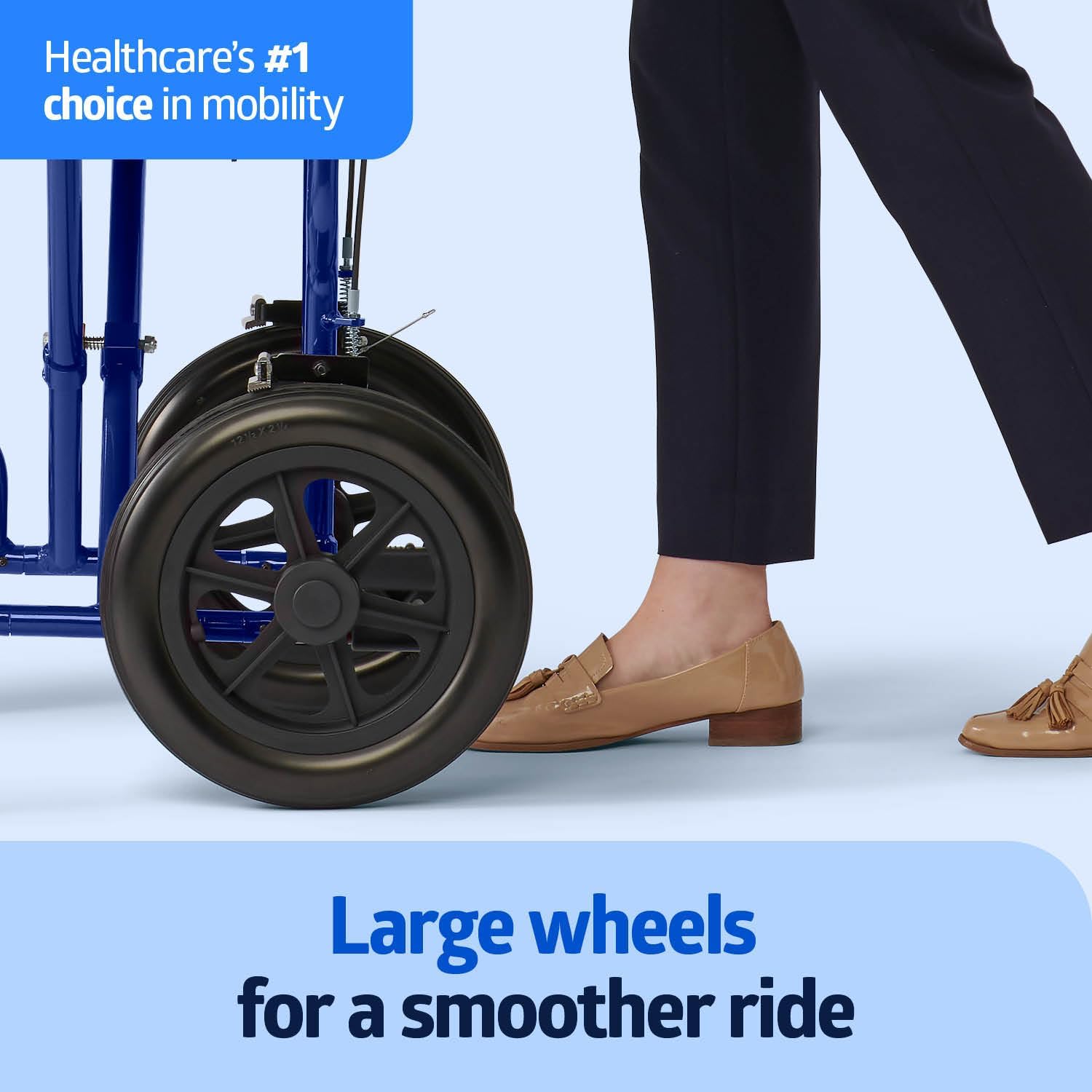

Image 3.2: The large rear wheels provide a smoother ride and improved maneuverability.
4. Folding and Transport
The Medline Transport Wheelchair features a compact, easy-fold design for convenient storage and transport.
- Prepare for Folding: Ensure the user has been safely transferred out of the wheelchair. Remove the detachable footrests.
- Fold the Frame: Grasp the seat fabric or frame and pull upwards, allowing the sides of the wheelchair to collapse inward.
- Secure for Transport: The swing-away footrests can be reattached in a folded position or stored separately. The compact size allows the wheelchair to fit easily into most car trunks or back seats.
Image 4.1: The wheelchair folds compactly for easy transport and storage in a vehicle.
5. Maintenance and Care
Regular maintenance ensures the longevity and safe operation of your wheelchair.
- Cleaning: The black nylon upholstery is easy to clean. Wipe down the frame and upholstery with a damp cloth and mild soap. Avoid abrasive cleaners.
- Inspection: Periodically check all nuts, bolts, and fasteners to ensure they are tight. Inspect the wheels and tires for wear and tear. Ensure the brakes are functioning correctly.
- Storage: Store the wheelchair in a dry, clean environment when not in use.
6. Troubleshooting
If you encounter any issues with your Medline Transport Wheelchair, please consider the following:
- Brakes Not Engaging: Check the brake cables for proper tension and ensure no debris is obstructing the brake mechanism. If issues persist, contact Medline customer support.
- Difficulty Folding/Unfolding: Ensure all previous locking mechanisms are disengaged and that the seat is not obstructed. Do not force the frame.
- Unstable Ride: Verify that all wheels are securely attached and that the frame is fully extended and locked.
For persistent problems or concerns not addressed here, please contact Medline customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | MDS808210ABE |
| Product Dimensions (Assembled) | 24.5"D x 23.5"W x 37.5"H |
| Product Dimensions (Folded) | 30.25"L x 12"W x 37.5"H (approximate) |
| Item Weight | 26.5 Pounds |
| Weight Capacity | 300 lbs. |
| Seat Dimensions | 19" wide x 16" deep |
| Rear Wheel Size | 12-inch |
| Frame Material | Aluminum |
| Upholstery Material | Nylon |
| Color | Blue Frame, Black Upholstery |
8. Warranty and Support
For information regarding product warranty, please refer to the documentation included with your purchase or visit the official Medline website. For technical support, replacement parts, or any other inquiries, please contact Medline customer service directly.
You can also refer to the official User Manual (PDF) for additional details.
