1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Alpine VIE-X08VS 7-inch WVGA HDD Navigation and AV Integrated System. Please read this manual thoroughly before using the product to ensure safe and optimal performance. Keep this manual for future reference.
2. Safety Information
WARNING: Failure to follow these safety instructions could result in fire, electric shock, or other injury or damage.
- Do not attempt to install or service this product yourself. Installation and service should be performed by qualified professionals.
- Do not operate the system in a way that distracts you from driving. Always prioritize road safety.
- Ensure all wiring is correctly connected to prevent short circuits or damage.
- Keep the unit free from moisture and extreme temperatures.
- Do not disassemble or modify the unit. This may cause malfunction or injury.
3. Package Contents
Verify that all items are present in the package:
- Alpine VIE-X08VS Main Unit
- Film TV Antenna (4 front pieces)
- Hands-free Call Microphone (4m cable)
- User Manual (this document)
- Installation Guide
4. Setup and Installation
Professional installation is highly recommended for this integrated system. Incorrect installation can lead to damage to the unit or your vehicle's electrical system.
4.1. Pre-Installation Checks
- Ensure the vehicle's battery is disconnected before starting installation.
- Confirm compatibility with your vehicle's dashboard and wiring harness.
4.2. Antenna Installation
Install the included film TV antennas on the front windshield according to the separate installation guide. Ensure proper placement for optimal digital TV reception.
4.3. Microphone Placement
Mount the hands-free microphone in a location that allows clear voice pickup, typically near the driver's sun visor or rearview mirror. Route the cable discreetly to the main unit.
4.4. Initial Power-On and Settings
After installation, reconnect the battery. Upon first power-on, the system may guide you through initial setup steps, including language selection, time zone, and basic navigation preferences. Follow the on-screen prompts.
5. Operating Instructions
The Alpine VIE-X08VS offers a comprehensive range of features. This section outlines the basic operation of key functions.
5.1. Navigation System
The 7-inch WVGA LCD provides clear map displays. The system supports both 2D and 3D map views for enhanced situational awareness. Utilize the Eco-Guide display function to support fuel-efficient driving.

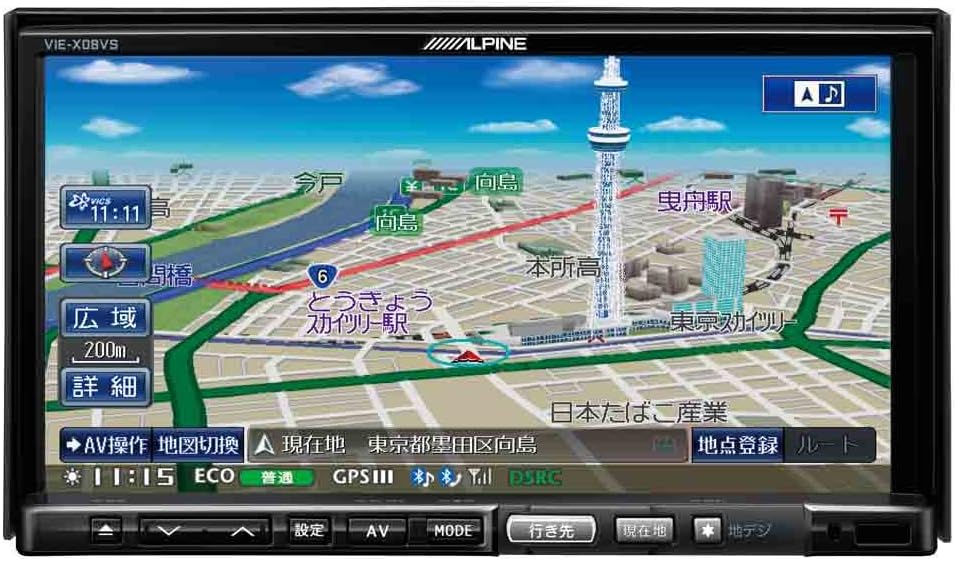

Figure 1: Front view of the Alpine VIE-X08VS unit displaying a detailed navigation map with Tokyo Skytree visible.
Figure 2: Angled view of the Alpine VIE-X08VS unit, showing the navigation map and side profile.
5.1.1. Map Updates
The system includes free map updates until the 2015 edition. For information on subsequent map updates, please refer to the Alpine support website or contact your dealer.
5.2. Audio/Video (AV) Features
The VIE-X08VS integrates various AV sources for your entertainment.
- HDD Music Storage: The built-in 60GB HDD is designed for audio, capable of automatically recording approximately 5,500 songs.
- Digital TV: Access digital terrestrial TV broadcasts using the easy-to-use one-touch key.
- DVD-V/CD Playback: Insert DVDs or CDs into the disc slot for video and audio playback.
- Bluetooth Connectivity: Pair your Bluetooth-enabled devices for audio streaming and hands-free calling.
- USB/SD Media: Connect USB devices or insert SD cards to play compatible audio and video files.
- 5.1ch Decoder: Enjoy enhanced audio quality with the built-in 5.1ch decoder.
- Rear Vision Link: Transmit high-quality video to rear monitors. This function also allows for navigation screen display and operation from the rear, enhancing the overall driving experience for passengers.
- Sony Walkman Compatibility: Connect compatible Sony Walkman devices for music playback.
5.3. Dual-Screen Display
The system supports a dual-screen display, allowing you to view both navigation and AV content simultaneously. This feature can be accessed via the on-screen menu or dedicated buttons.
6. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your Alpine VIE-X08VS unit.
6.1. Cleaning the Display
Use a soft, dry cloth to gently wipe the display screen. For stubborn smudges, slightly dampen the cloth with water or a screen-cleaning solution specifically designed for electronic displays. Avoid harsh chemicals or abrasive materials.
6.2. General Cleaning
Wipe the exterior of the unit with a soft, dry cloth. Do not allow liquids to enter the unit.
6.3. Disc Slot Care
Keep the disc slot free of dust and debris. Avoid inserting bent, scratched, or dirty discs, as this can damage the disc drive.
7. Troubleshooting
If you encounter issues with your Alpine VIE-X08VS, refer to the following common problems and solutions before contacting support.
| Problem | Possible Cause / Solution |
|---|---|
| No power | Check vehicle's fuse box. Ensure all power cables are securely connected. |
| No sound | Verify volume level. Check speaker connections. Ensure audio source is selected correctly. |
| GPS signal loss | Ensure the GPS antenna has a clear view of the sky. Move to an open area away from tall buildings or tunnels. |
| Bluetooth device won't pair | Ensure Bluetooth is enabled on both the unit and your device. Place devices close together. Delete previous pairings and try again. |
| Disc playback issues | Ensure the disc is clean and free of scratches. Verify the disc format is supported. |
8. Specifications
Detailed technical specifications for the Alpine VIE-X08VS unit:
| Feature | Specification |
|---|---|
| Manufacturer | Alpine |
| Model Name | VIE X08VS |
| Product Model Number | VIE-X08VS |
| Product Dimensions (LxWxH) | 18.73 x 17.8 x 10 cm |
| Item Weight | 3.2 Kilograms |
| Screen Size | 7 Inches |
| Display Type | WVGA LCD |
| Memory Storage Capacity | 60 GB (HDD) |
| Connectivity Technology | Bluetooth, USB |
| Supported Media | DVD-V, CD, USB, SD |
| Map Type | Street |
| Mounting Type | Panel Mount |
| Special Features | Hands-free calling, Digital TV, 5.1ch Decoder, Eco-Guide, Rear Vision Link |
| Compatible Vehicle Type | Passenger Car |
9. Warranty and Support
For warranty information, please refer to the warranty card included with your product or visit the official Alpine website. Keep your proof of purchase for warranty claims.
9.1. Customer Support
If you require technical assistance, have questions about your product, or need to arrange service, please contact Alpine customer support through their official website or the contact information provided in your product documentation.
