Field Controls 16LAMP 16-inch UVC Replacement Lamp Instruction Manual

Introduction

This manual provides essential information for the safe and effective use of the Field Controls 16LAMP 16-inch UVC Replacement Lamp. This lamp is specifically designed for use with Field Controls UV-Aire Purification Systems that require a 16-inch UVC lamp. It serves as a direct replacement to maintain the air purification capabilities of your system.

Important Safety Information

WARNING: UVC radiation is harmful to skin and eyes. Never operate the lamp outside of its intended enclosure or look directly at an illuminated UVC lamp. Always disconnect power before servicing or replacing the lamp.

• Ensure the UV-Aire system is completely powered off and disconnected from the electrical supply before attempting any lamp replacement.
• Do not touch the glass part of the lamp with bare hands. Oils from skin can create hot spots and reduce lamp life. Use gloves or a clean, lint-free cloth when handling.
• Dispose of old lamps according to local regulations for fluorescent lamps, as they contain mercury.

Setup and Installation

The Field Controls 16LAMP is designed for easy replacement using a simple twist and lock mechanism. Follow these steps to safely replace your UVC lamp:

1. Power Disconnection: Locate the power switch for your Field Controls UV-Aire Purification System and turn it off. Unplug the system from the electrical outlet to ensure no power is supplied.
2. Access Lamp Compartment: Refer to your specific UV-Aire system's manual for instructions on how to safely open the lamp compartment.
3. Remove Old Lamp: Carefully grasp the old lamp. It typically features a 4-pin base with one longer pin. Gently twist and pull to unlock and remove the lamp from its socket.
4. Insert New Lamp: Align the 4-pin base of the new 16LAMP replacement bulb with the socket in the UV-Aire system. Ensure the longer pin aligns correctly with its corresponding slot. Gently push the lamp into the socket and twist to lock it into place. Avoid forcing the lamp.
5. Secure Compartment: Close and secure the lamp compartment according to your system's instructions.
6. Restore Power: Plug the UV-Aire system back into the electrical outlet and turn on the power switch. The new lamp should illuminate.

Note: This lamp is specifically designed for 16-inch UV-Aire units that utilize a 4-pin bulb end with one longer prong. Verify compatibility with your system before installation.

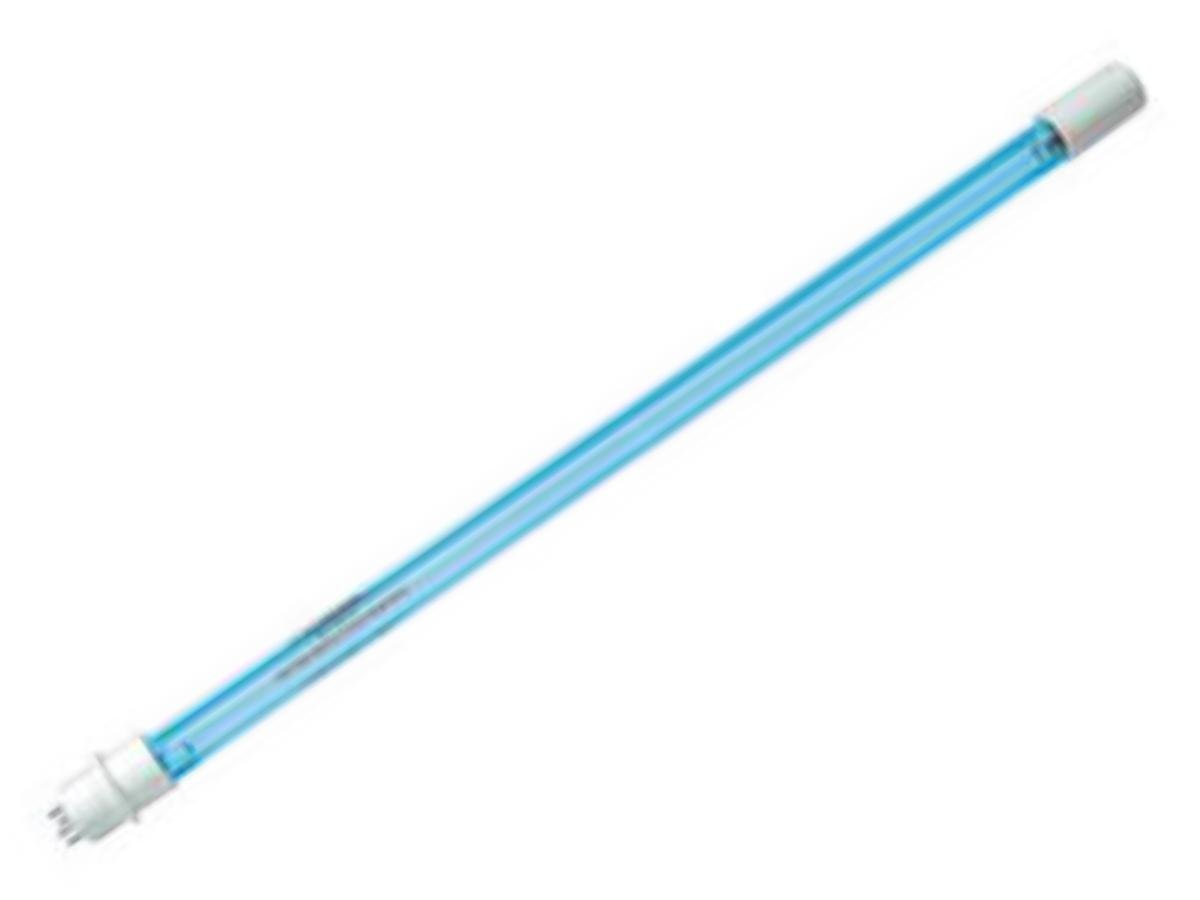

Image: The Field Controls 16LAMP 16-inch UVC Replacement Lamp, showing its tubular shape and 4-pin base. This lamp is a direct replacement for compatible UV-Aire purification systems.

Operation

Once correctly installed and power is restored, the Field Controls 16LAMP operates automatically as part of your UV-Aire Purification System. The lamp emits UVC light to purify air within the system's enclosure. There are no user-adjustable settings for the lamp itself; its operation is controlled by the UV-Aire system.

Maintenance

• Lamp Replacement Schedule: For optimal performance and air purification effectiveness, it is recommended to replace the UVC lamp annually, or as specified by your UV-Aire Purification System's manual. Over time, UVC lamps lose their intensity, even if they still appear to be lit.
• Cleaning: If the lamp surface appears dusty or dirty, carefully wipe it with a clean, lint-free cloth moistened with isopropyl alcohol. Ensure the system is powered off and unplugged before cleaning.
• Disposal: UVC lamps contain small amounts of mercury. Do not dispose of them in regular household trash. Contact your local waste management authority for proper recycling or disposal procedures for fluorescent and UVC lamps.

Troubleshooting

If the replacement lamp does not illuminate after installation, consider the following:

• No Power: Ensure the UV-Aire system is properly plugged into a working electrical outlet and the power switch is in the "ON" position.
• Improper Installation: Verify that the lamp is fully seated and locked into its socket. Gently remove and re-insert the lamp, ensuring the 4-pin base is correctly aligned.
• Defective Lamp: Although rare, a new lamp can sometimes be defective. If all other troubleshooting steps fail, and you have confirmed power to the unit, the lamp itself may be faulty.
• System Malfunction: If the lamp is correctly installed and confirmed to be functional, but still does not light, there may be an issue with the UV-Aire Purification System's ballast or wiring. Consult your system's manual or contact Field Controls customer support.

Specifications

Note: Specifications are subject to change without notice. For the most current information, please refer to the manufacturer's official documentation.

Warranty and Support

For warranty information, technical support, or to inquire about other Field Controls products, please contact Field Controls directly or visit their official website. Keep your purchase receipt as proof of purchase for warranty claims.

Manufacturer: Field Controls

Website: www.fieldcontrols.com

Customer Service: Refer to the Field Controls website for current contact details.
