Morel Primo 104 10-inch Car Audio Subwoofer Instruction Manual

1. Introduction

Thank you for choosing the Morel Primo 104 10-inch Car Audio Subwoofer. This product is engineered to deliver superb sound quality and high output, designed to perform optimally in both small sealed and vented enclosures. This manual provides essential information for the proper installation, operation, and maintenance of your subwoofer to ensure optimal performance and longevity.

2. Safety Information

Please read all safety instructions before installing or operating your subwoofer. Failure to follow these guidelines may result in injury or damage to the product or vehicle.

• Professional Installation Recommended: Car audio installation can be complex. If you are unsure about any part of the installation process, consult a qualified professional installer.
• Disconnect Battery: Always disconnect the vehicle's negative battery terminal before beginning any electrical work to prevent short circuits and electrical hazards.
• Wiring: Ensure all wiring is correctly routed and secured to prevent damage from sharp edges, heat, or moving parts. Use appropriate gauge wiring for power and speaker connections.
• Hearing Protection: Prolonged exposure to high sound pressure levels can cause permanent hearing damage. Use caution when adjusting volume levels.
• Ventilation: Ensure adequate ventilation around the subwoofer and amplifier to prevent overheating.
• Secure Mounting: Securely mount the subwoofer to prevent it from becoming a projectile in the event of a sudden stop or collision.

3. Package Contents

Verify that all items are present in the package:

• 1 x Morel Primo 104 10-inch Subwoofer

4. Setup and Installation

Proper installation is crucial for the performance and longevity of your subwoofer. This section outlines general guidelines. Specific enclosure designs and wiring configurations may vary.

4.1 Enclosure Selection

The Morel Primo 104 is designed to perform well in both sealed and vented (ported) enclosures. The choice of enclosure type will affect the subwoofer's sound characteristics:

• Sealed Enclosures: Typically provide tighter, more accurate bass response, suitable for sound quality-focused systems.
• Vented Enclosures: Generally offer higher output and deeper bass extension, often preferred for SPL (Sound Pressure Level) or bass-heavy music.

Consult the subwoofer's technical specifications (Section 7) for recommended enclosure volumes and port dimensions.

4.2 Mounting the Subwoofer

Ensure the enclosure has a cutout diameter appropriate for a 10-inch subwoofer. Secure the subwoofer to the enclosure using appropriate screws, ensuring an airtight seal around the mounting flange.

Image: Side view of the Morel Primo 104 subwoofer, illustrating its depth and the terminal connections for wiring.

4.3 Wiring Connections

The Morel Primo 104 has a 4 Ohm impedance. Connect the subwoofer to a suitable amplifier capable of delivering the required power (up to 500 Watts maximum output). Observe correct polarity when making connections:

• Connect the amplifier's positive (+) output to the subwoofer's positive (+) terminal.
• Connect the amplifier's negative (-) output to the subwoofer's negative (-) terminal.

Incorrect polarity will result in reduced bass output and poor sound quality.

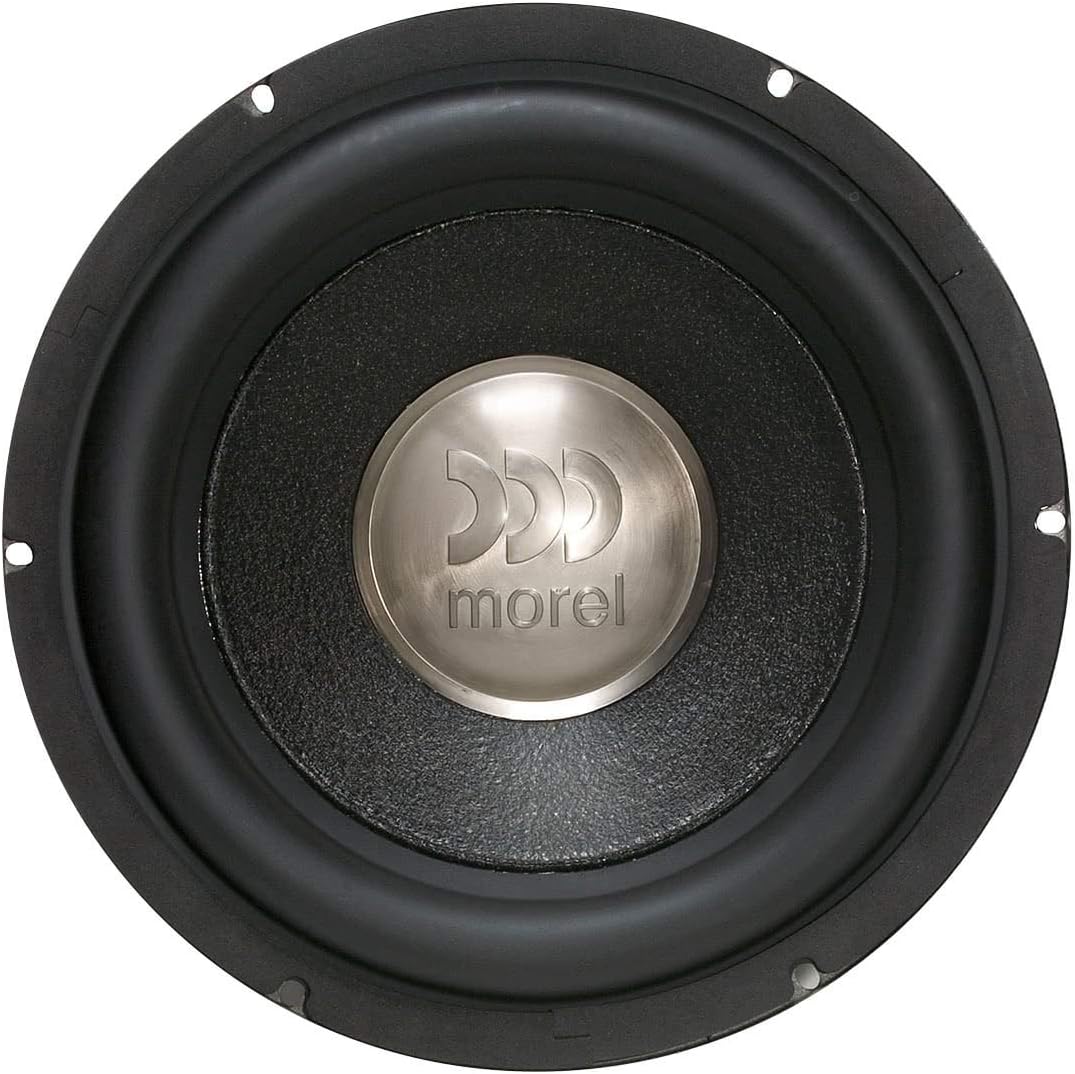

Image: Front view of the Morel Primo 104 subwoofer, showcasing the cone, surround, and central dust cap with the Morel logo.

5. Operating Instructions

Once installed, follow these steps for initial operation:

1. Initial Power-Up: After all connections are made and verified, reconnect the vehicle's battery. Turn on your car audio system.
2. Amplifier Settings: Adjust the amplifier's gain (input sensitivity) according to the amplifier manufacturer's instructions. Start with the gain at its minimum setting and slowly increase it until the desired volume is achieved without distortion.
3. Crossover Settings: Set the low-pass filter (LPF) on your amplifier or head unit to an appropriate frequency, typically between 60 Hz and 100 Hz, to ensure the subwoofer only reproduces low frequencies.
4. Break-in Period: Allow a break-in period of approximately 10-20 hours of normal listening before operating the subwoofer at maximum output. This allows the suspension components to loosen and achieve optimal performance.
5. Avoid Overdriving: Do not operate the subwoofer at levels that produce audible distortion. Overdriving can cause permanent damage to the voice coil and void your warranty.

6. Maintenance

The Morel Primo 104 subwoofer requires minimal maintenance. Follow these guidelines to ensure its longevity:

• Cleaning: Use a soft, dry cloth to clean the subwoofer cone and surround. Avoid using harsh chemicals or excessive moisture.
• Inspection: Periodically inspect all wiring connections to ensure they are secure and free from corrosion. Check the subwoofer's mounting for any looseness.
• Environmental Factors: Protect the subwoofer from extreme temperatures, direct sunlight, and excessive moisture.

7. Troubleshooting

If you experience issues with your subwoofer, refer to the following troubleshooting guide:

8. Specifications

The following table details the technical specifications for the Morel Primo 104 10-inch Car Audio Subwoofer:

9. Warranty and Support

The Morel Primo 104 subwoofer comes with a Limited Warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Morel website.

For technical support, service, or warranty claims, please contact your authorized Morel dealer or visit the official Morel website for further assistance.
