1. Introduction
The 3M Cubitron II A0177 Retaining Ring is a genuine 3M replacement part designed to maintain the optimal performance of your 3M Abrasive Power Tools. This manual provides essential information regarding the product, its intended use, safety guidelines, and specifications to ensure proper handling and application.
2. Product Overview and Identification
The A0177 Retaining Ring is a critical component for specific 3M Abrasive Power Tools. It is designed to secure other parts within the tool assembly, ensuring stable and safe operation. Identifying the correct part is crucial for proper tool function and safety.
Figure 1: Front view of the 3M Cubitron II A0177 Retaining Ring. This image shows the circular metal ring with a gap, characteristic of an external retaining ring.

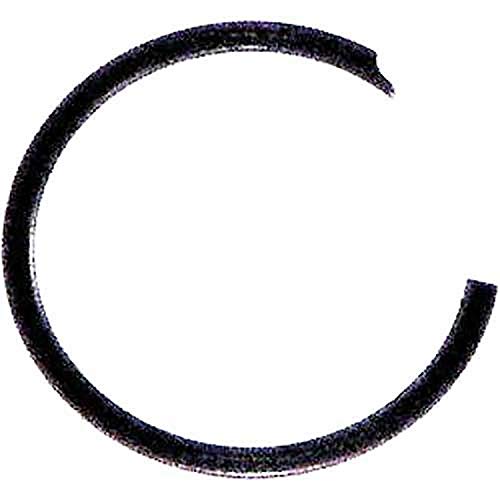

Figure 2: Close-up view of the 3M Cubitron II A0177 Retaining Ring. This image provides a detailed look at the texture and finish of the metal ring.
3. Compatibility and Intended Use
This retaining ring is specifically designed as a replacement part for certain 3M Abrasive Power Tools. It is imperative to verify compatibility with your specific tool model using the tool's instruction manual and parts list before installation.
Important: For industrial/occupational use only. Not for consumer sale or use.
4. Safety Information
Always prioritize safety when handling and installing replacement parts for power tools. Refer to the comprehensive Safety Information (PDF) provided by 3M for detailed safety guidelines.
- Ensure the product is selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI).
- Always follow all product literature, user instructions, warnings, and other limitations.
- Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage.
- Consult your on-site safety professional, industrial hygienist, or other subject matter expert for help with product selection and use.
5. Installation (Replacement Procedure)
The 3M Cubitron II A0177 Retaining Ring is a replacement component. Its installation involves replacing an existing, worn, or damaged retaining ring within a 3M Abrasive Power Tool. Detailed replacement procedures are specific to each tool model.
- Refer to the Tool's Instruction Manual: Always consult the specific 3M Abrasive Power Tool's instruction manual for detailed, step-by-step replacement procedures, including any required tools or safety precautions.
- Identify Correct Part: Use the schematic and parts list found in your tool's instruction manual to confirm that A0177 is the correct retaining ring for the intended application.
- Ensure Proper Fit: The retaining ring should fit securely and precisely as designed. Do not force the part if it does not align correctly.
6. Maintenance
As a replacement part, the A0177 Retaining Ring itself requires minimal maintenance beyond proper handling and storage. Its primary function is to maintain the integrity of the power tool.
- Storage: Store the retaining ring in a clean, dry environment, away from corrosive materials or extreme temperatures, to prevent damage before installation.
- Inspection: Before installation, visually inspect the retaining ring for any signs of damage, deformation, or corrosion. Do not use a damaged part.
- Replacement: Replace the retaining ring if it becomes worn, damaged, or loses its retaining capability during tool operation.
7. Troubleshooting
If you encounter issues with the 3M Cubitron II A0177 Retaining Ring, consider the following:
- Incorrect Fit: If the retaining ring does not fit properly, double-check the part number (A0177) against your tool's parts list to ensure you have the correct replacement part.
- Tool Malfunction After Replacement: If the power tool does not function correctly after replacing the retaining ring, refer to the comprehensive troubleshooting section of your specific 3M Abrasive Power Tool's instruction manual. Ensure all components are correctly assembled and secured.
- Damaged Part: If the retaining ring appears damaged upon receipt or during handling, do not attempt to install it. Contact your supplier for a replacement.
8. Specifications
| Attribute | Value |
|---|---|
| Item Model Number | A0177 |
| Product Dimensions (L x W x H) | 0.02 x 3.25 x 5.5 inches |
| Item Weight | 16 ounces (1 Pound) |
| Compatible Material | Metal |
| Manufacturer | 3M |
| UPC | 051115281396 |
| Country of Origin | USA |
9. Warranty and Support
Genuine 3M replacement parts are manufactured to high standards to ensure compatibility and performance with 3M Abrasive Power Tools. Specific warranty details for individual replacement parts may vary or be covered under the warranty of the tool itself. For detailed warranty information or technical support, please refer to the documentation provided with your 3M Abrasive Power Tool or visit the official 3M website.
For additional product information, visit www.3M.com.
10. Legal Disclaimer
3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert. For additional product information, visit www.3M.com.
