1. Introduction
The iBall Dhwani 5.1 Multimedia Speaker system is designed to provide a rich and immersive audio experience. Featuring a 5.1 channel configuration with a powerful subwoofer and four satellite speakers, this system delivers surround sound quality for various multimedia applications. Its wooden cabinet construction enhances sound depth and clarity. The system offers versatile connectivity options including USB, SD/MMC card slots, AUX (2.1CH Stereo), and 5.1 channel input, along with a built-in FM radio.

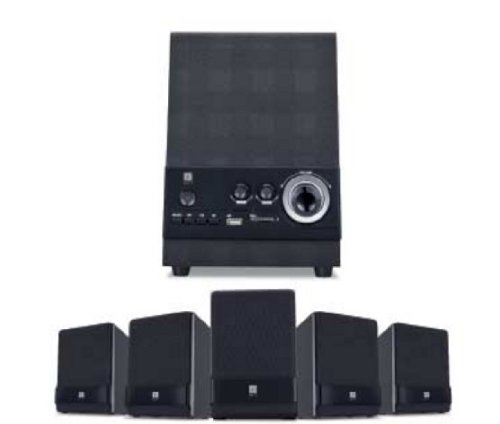

Figure 1: iBall Dhwani 5.1 Multimedia Speaker System
2. Setup Instructions
Follow these steps to set up your iBall Dhwani 5.1 Multimedia Speaker system:
- Unpacking: Carefully remove all components from the packaging. Ensure you have one subwoofer and four satellite speakers.
- Speaker Placement:
- Place the subwoofer on the floor, preferably near a wall or corner for optimal bass response.
- Position the four satellite speakers around your listening area. For a true surround sound experience, place two satellites at the front (left and right of your display) and two at the rear (left and right behind your listening position). Ensure wires are not stretched or obstructed.
- Connecting Satellite Speakers: Connect each satellite speaker to the corresponding output ports on the rear of the subwoofer unit. Ensure a secure connection for each speaker.
- Connecting Audio Source:
- For 5.1 Channel Input: Use the provided 5.1 audio cables to connect the subwoofer to your 5.1 channel sound card or DVD player. Match the color-coded plugs to the corresponding jacks (e.g., Front L/R, Rear L/R, Center/Sub).
- For AUX (2.1CH Stereo) Input: Use a 3.5mm stereo audio cable to connect the subwoofer's AUX input to the audio output of your PC, laptop, smartphone, or other audio device.
- Power Connection: Plug the power cord from the subwoofer into a standard AC power outlet.
- Initial Power On: Turn on the power switch located on the subwoofer unit. The system should power on, indicated by an LED light.
3. Operating Instructions
This section details how to operate your iBall Dhwani 5.1 speaker system.
3.1 Power On/Off
Locate the power switch on the subwoofer unit. Flip the switch to the 'ON' position to power on the speakers. Flip it to 'OFF' to power down.
3.2 Input Source Selection
Use the 'MODE' button on the front panel of the subwoofer or the remote control to cycle through available input sources:
- 5.1 CH: For true 5.1 surround sound from compatible devices.
- AUX (2.1 CH Stereo): For stereo audio input from PCs, laptops, mobile phones, etc.
- USB: For playing audio files from a USB pen drive.
- SD/MMC: For playing audio files from an SD or MMC memory card.
- FM: For listening to the built-in FM radio.
3.3 Volume Control
Adjust the master volume using the main volume knob on the subwoofer's front panel or the volume buttons on the remote control. Individual channel volume adjustments (e.g., bass, center, surround) may also be available via the remote control.
3.4 USB/SD/MMC Playback
Insert a USB pen drive or an SD/MMC card into the respective slot on the subwoofer. The system will automatically switch to USB/SD mode and begin playing compatible audio files. Use the playback controls (Play/Pause, Next, Previous) on the subwoofer or remote control.
3.5 FM Radio Operation
- Switch the input mode to 'FM'.
- Press the 'SCAN' button (if available) to automatically scan and save available FM stations.
- Use the 'NEXT' and 'PREVIOUS' buttons to navigate through the saved stations.
- Extend the FM antenna (if applicable) for better reception.
4. Maintenance
Proper care and maintenance will ensure the longevity and optimal performance of your speaker system.
- Cleaning: Use a soft, dry cloth to wipe the surfaces of the speakers and subwoofer. Do not use liquid cleaners, aerosols, or abrasive materials, as these can damage the wooden finish and electronic components.
- Dust Removal: Regularly dust the speaker grilles and vents to prevent accumulation, which can affect sound quality and internal cooling.
- Placement: Avoid placing the speakers in direct sunlight, near heat sources, or in areas with high humidity. Ensure adequate ventilation around the subwoofer.
- Cable Management: Ensure all cables are securely connected and not pinched or tangled. Avoid placing heavy objects on cables.
- Power Off When Not in Use: For extended periods of inactivity, it is recommended to power off the speaker system and unplug it from the power outlet.
5. Troubleshooting
If you encounter issues with your iBall Dhwani 5.1 speaker system, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound from speakers. |
|
|
| Distorted or unclear sound. |
|
|
| USB/SD card not playing. |
|
|
| FM radio reception is poor. |
|
|
6. Specifications
| Model Name | Dhwani 5.1 |
| Type | Multimedia Speaker System |
| Channel Configuration | 5.1 |
| Total Power Output (RMS) | 23 W |
| Frequency Response (Satellite) | 40 to 20000 Hz |
| Signal-to-Noise Ratio | 75 dB |
| Satellite Driver | 3-inch full-range |
| Connectivity | 5.1 Channel Input, AUX (2.1CH Stereo), USB, SD/MMC |
| Additional Features | Built-in FM Radio, Full Volume Controls, Magnetically Shielded Satellites |
| Package Dimensions | 40.6 x 39.4 x 21 cm |
| Item Weight | 4.46 kg |
7. Warranty and Support
For warranty information and customer support, please refer to the warranty card included with your product or visit the official iBall website. Keep your purchase receipt as proof of purchase for warranty claims.
For technical assistance or service inquiries, please contact iBall customer support through their official channels.
