Orbegozo FH 5033 Heater User Manual

Model: FH 5033 | Brand: Orbegozo

Important Safety Instructions

Please read this manual carefully before operating the appliance and keep it for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

  • Always ensure the heater is placed on a firm, level surface to prevent tipping.
  • Do not cover the heater or block the air inlets/outlets, as this can cause overheating.
  • Keep flammable materials (curtains, furniture, bedding) at least 3 feet (0.9 meters) away from the heater.
  • Do not use the heater in bathrooms, laundry areas, or similar damp indoor locations.
  • Unplug the heater when not in use or before cleaning.
  • This appliance is equipped with an automatic safety shutoff and overheating protection system. If the heater overheats, it will automatically turn off. Unplug the unit, allow it to cool for 30 minutes, and then plug it back in. If it continues to shut off, contact customer support.
  • Do not insert any objects into the ventilation or exhaust openings as this may cause an electric shock or damage the heater.

Product Overview

The Orbegozo FH 5033 heater is a compact and efficient heating solution designed for indoor use. It features two power levels, a cold-air fan function, and an adjustable thermostat for precise temperature control.

Orbegozo FH 5033 Heater, angled view, showing the red casing, front grille, and two control knobs on top.

Figure 1: Angled view of the Orbegozo FH 5033 Heater, highlighting its compact design, front air outlet, and top-mounted control knobs.

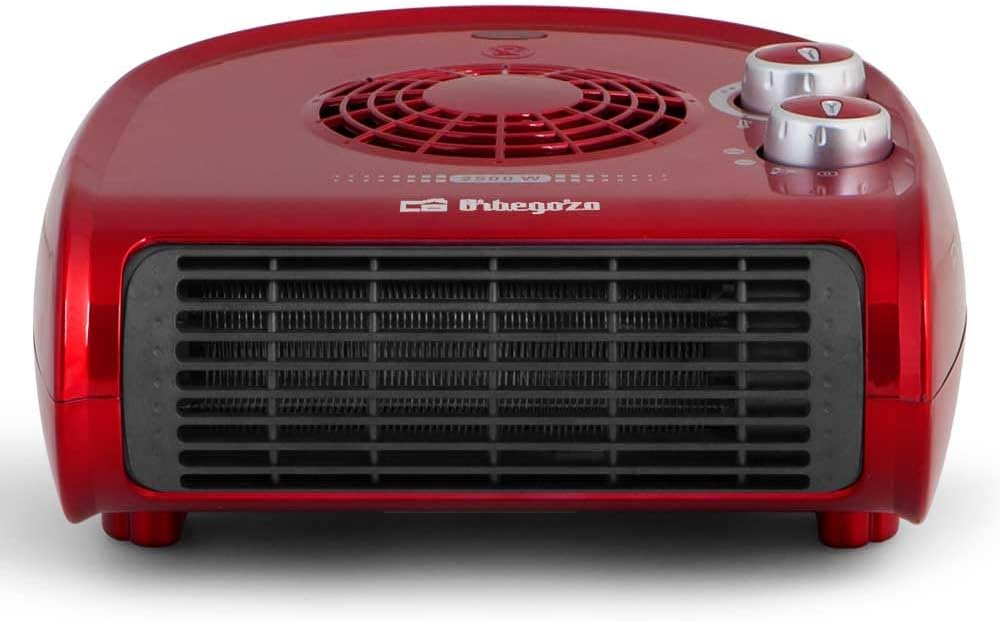

Orbegozo FH 5033 Heater, front view, showing the air outlet grille.

Figure 2: Front view of the Orbegozo FH 5033 Heater, clearly showing the air outlet grille.

Components:

  • Power/Function Selector Knob: Controls power (OFF, Fan, 1250W, 2500W).
  • Thermostat Control Knob: Adjusts desired room temperature.
  • Power Indicator Light: Illuminates when the heater is operating.
  • Air Outlet Grille: Front opening for warm or cold air discharge.
  • Air Inlet: Rear opening for air intake (do not block).
  • Carry Handle: Integrated handle on the back for easy transport.

Setup

  1. Unpacking: Carefully remove the heater from its packaging. Retain packaging for storage if needed.
  2. Placement: Place the heater on a stable, flat, and heat-resistant surface. Ensure there is at least 3 feet (0.9 meters) of clear space around the heater from walls, furniture, and other objects to allow for proper air circulation. Do not place it directly under a power outlet.
  3. Power Connection: Ensure the power/function selector knob is in the "OFF" position. Plug the power cord into a suitable 230V AC electrical outlet. Do not use extension cords or power strips with this appliance.

Operating Instructions

  1. Turning On: Rotate the Power/Function Selector Knob clockwise from "OFF" to select the desired mode:
    • Fan Only: For cold air circulation without heat.
    • 1250W Heat Setting: For moderate heating.
    • 2500W Heat Setting: For maximum heating power.
    The power indicator light will illuminate when the heater is on.
  2. Adjusting Thermostat: Rotate the Thermostat Control Knob to set the desired room temperature.
    • Turn the knob clockwise towards the "+" symbol for a higher temperature setting.
    • Turn the knob counter-clockwise towards the "-" symbol for a lower temperature setting.
    The heater will cycle on and off to maintain the set temperature.
  3. Turning Off: Rotate the Power/Function Selector Knob counter-clockwise to the "OFF" position. Unplug the heater from the power outlet when not in use.

Maintenance

Cleaning:

  • Always unplug the heater and allow it to cool completely before cleaning.
  • Use a soft, damp cloth to wipe the exterior surfaces of the heater. Do not use abrasive cleaners or solvents.
  • Use a vacuum cleaner with a brush attachment to remove dust from the air inlet and outlet grilles.
  • Never immerse the heater in water or any other liquid.

Storage:

When storing the heater, ensure it is cool and dry. Store it in its original packaging or a suitable container in a cool, dry place.

Troubleshooting

ProblemPossible CauseSolution
Heater does not turn on.Not plugged in; Power switch is OFF; Overheat protection activated; No power at outlet.Ensure plug is firmly in outlet; Turn power switch to desired setting; Unplug, wait 30 mins, then replug; Check circuit breaker or try another outlet.
Heater turns off unexpectedly.Overheat protection activated; Heater is covered or air inlets/outlets are blocked.Unplug, wait 30 mins, then replug. Ensure heater is not covered and air circulation is unobstructed.
Heater produces cold air only.Set to "Fan Only" mode; Thermostat set too low.Rotate Power/Function Selector Knob to a heat setting (1250W or 2500W); Increase Thermostat Control Knob setting.

Specifications

  • Brand: Orbegozo
  • Model Number: FH 5033
  • Color: Red
  • Power Settings: 1250 W, 2500 W
  • Function: 2 Heat Levels, Cold-Air Fan
  • Special Features: Adjustable Thermostat, Overheat Protection, Power Indicator Light, Carry Handle
  • Voltage: 230 Volts
  • Form Factor: Pedestal
  • Indoor/Outdoor Usage: Indoor
  • Mounting Type: Tabletop Mount
  • Product Dimensions: 10.43 x 10.24 x 4.92 inches (26.5 x 26 x 12.5 cm)
  • Item Weight: 2.99 pounds (1.36 kg)

Warranty and Support

Specific warranty details and customer support contact information are not provided within this manual. For warranty claims, technical support, or service inquiries, please refer to the warranty card included with your purchase or visit the official Orbegozo website for the most up-to-date information.

Manufacturer: Orbegozo

© 2024 Orbegozo. All rights reserved.
