Four Seasons 58632 A/C Compressor Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Four Seasons 58632 A/C Compressor. This unit is a new Sanden/Sankyo SD709 compressor with clutch, designed for automotive air conditioning systems. Please read these instructions thoroughly before proceeding with installation or use to ensure safety and optimal performance.

2. Safety Information

Warning: Automotive air conditioning systems contain refrigerants under high pressure. Improper handling can cause severe injury or system damage. It is strongly recommended that installation and service be performed by a certified automotive technician.

• Always wear appropriate personal protective equipment, including safety glasses and gloves, when working on an A/C system.
• Never vent refrigerant into the atmosphere. Use proper recovery and recycling equipment.
• Ensure the vehicle's battery is disconnected before beginning any electrical work.
• Refer to the vehicle manufacturer's service manual for specific procedures and torque specifications.

3. Package Contents

Verify that all components are present and undamaged upon opening the package.

• One (1) Four Seasons 58632 A/C Compressor with Clutch

Figure 1: The Four Seasons 58632 A/C Compressor, showing the main body, pulley, and electrical connector.

4. Setup and Installation

Proper installation is critical for the longevity and performance of the A/C compressor. This is a general guide; always consult your vehicle's specific service manual.

1. System Evacuation: Before removing the old compressor, the A/C system must be properly evacuated of all refrigerant using a certified recovery machine.
2. System Flushing: It is highly recommended to flush the entire A/C system (condenser, evaporator, lines) to remove any contaminants, debris, or old oil. This step is crucial to prevent premature failure of the new compressor. Do not flush the new compressor.
3. Oil Management: Drain and measure the oil from the old compressor. Add the appropriate amount and type of PAG oil (as specified by the vehicle manufacturer) to the new compressor. The Four Seasons 58632 is pre-charged with a specific amount of oil, but adjustments may be necessary based on system capacity and component replacement.
4. Installation:
   • Mount the new compressor securely using the appropriate bolts and torque specifications.
   • Connect the refrigerant lines to the compressor ports. Ensure new O-rings are used and properly lubricated.
   • Connect the electrical clutch connector.
5. Vacuum and Leak Test: After installation, evacuate the system to a deep vacuum (at least 29.92 inHg or 500 microns) for a minimum of 30-45 minutes to remove moisture and non-condensable gases. Perform a vacuum decay test to check for leaks.
6. Refrigerant Recharge: Recharge the system with the correct type and amount of refrigerant (e.g., R-134a) as specified by the vehicle manufacturer. Do not overcharge or undercharge the system.

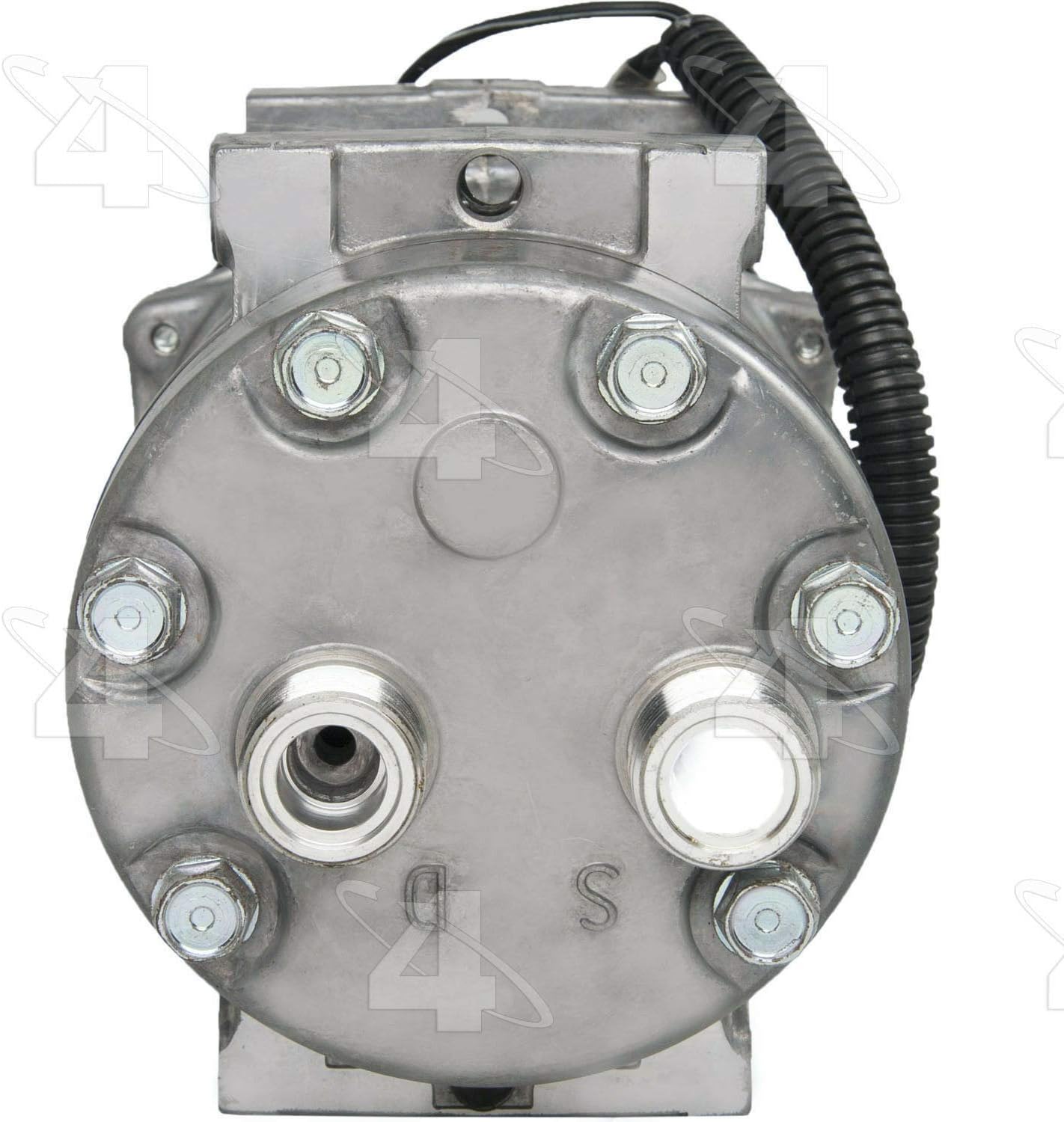

Figure 2: Front view of the compressor, showing mounting points and refrigerant ports.

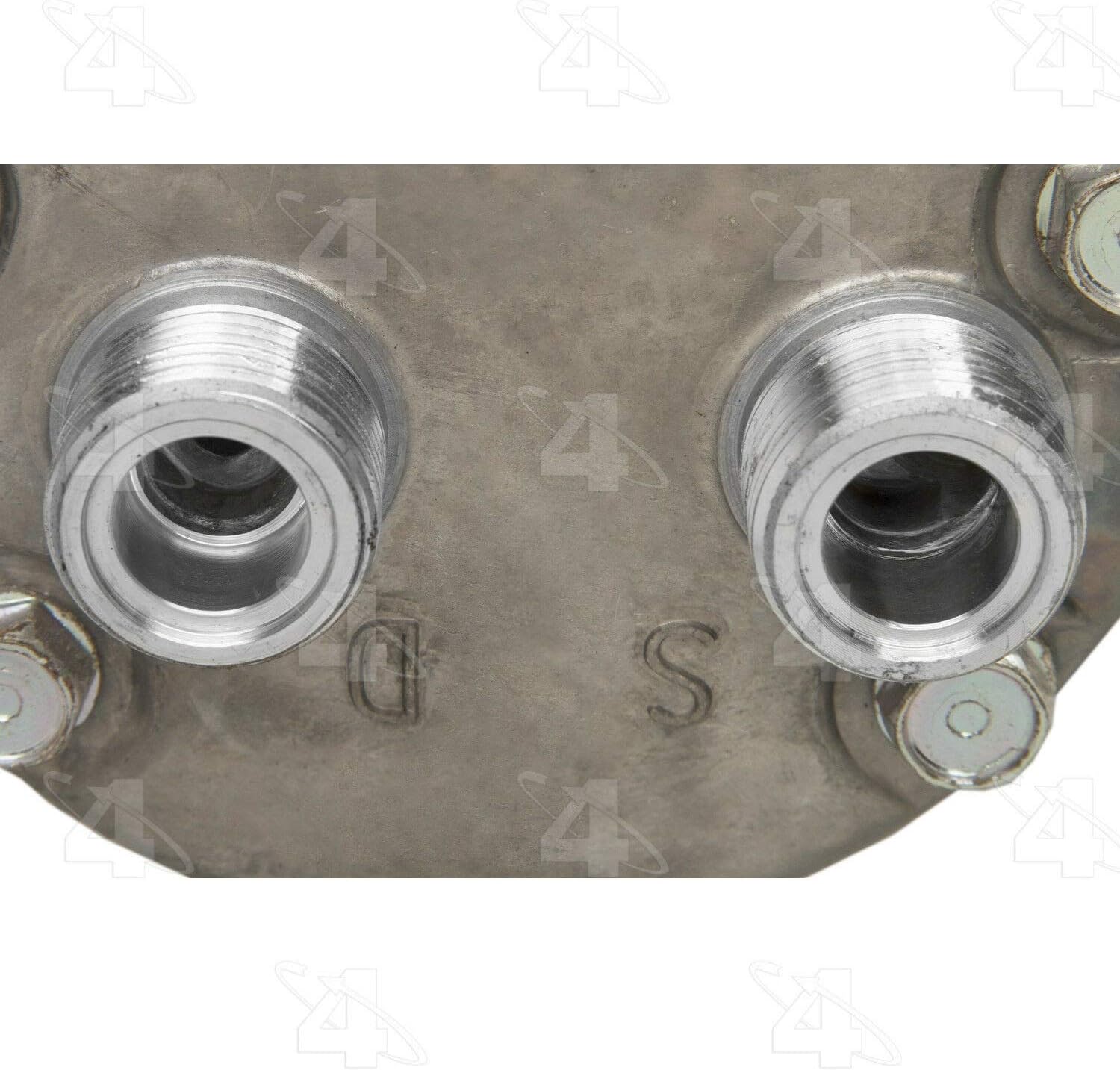

Figure 3: Close-up view of the refrigerant inlet and outlet ports on the compressor.

Figure 4: Detail of the electrical connector for the compressor clutch.

5. Operation

The A/C compressor is a key component of your vehicle's air conditioning system. When the A/C system is activated, the compressor circulates refrigerant through the system, compressing it from a low-pressure gas to a high-pressure gas. This process is essential for heat exchange, allowing the system to cool the vehicle's interior.

The compressor clutch engages and disengages based on the demand for cooling, controlled by the vehicle's climate control system and pressure sensors.

6. Maintenance

To ensure the longevity and efficient operation of your A/C system and compressor:

• Have your A/C system inspected annually by a qualified technician.
• Check for proper refrigerant levels. Low refrigerant can cause the compressor to work harder and potentially fail.
• Inspect the compressor clutch and belt for wear or damage.
• Ensure the condenser is clean and free of obstructions to allow for proper heat dissipation.

7. Troubleshooting

If you experience issues with your A/C system, consider the following common problems. For complex issues, consult a professional technician.

• No Cold Air:
  • Check refrigerant level.
  • Verify compressor clutch engagement (listen for a click when A/C is turned on).
  • Inspect electrical connections to the compressor.
• Weak Cooling:
  • Refrigerant may be low.
  • Condenser may be dirty or obstructed.
  • Cabin air filter may be clogged.
• Unusual Noises from Compressor:
  • Could indicate internal compressor damage, improper lubrication, or a failing clutch bearing.
  • Immediately consult a technician to prevent further damage.

8. Specifications

9. Warranty and Support

For information regarding warranty coverage or technical support for your Four Seasons 58632 A/C Compressor, please refer to the documentation provided with your purchase or contact Four Seasons customer service directly. Warranty terms and conditions may vary.

You can typically find contact information on the manufacturer's official website: www.fourseasons.com
