Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Hallmark Industries MD0510B DC Motor. Please read this manual thoroughly before operating the motor and retain it for future reference.
Safety Information
Always observe the following safety precautions to prevent injury or damage to the equipment:
- Ensure all power is disconnected before installation, maintenance, or inspection.
- Only qualified personnel should perform installation and wiring.
- Protect the motor from moisture and extreme temperatures.
- Ensure proper grounding to prevent electrical shock.
- Do not operate the motor if it is damaged or malfunctioning.
- Wear appropriate personal protective equipment (PPE) during installation and operation.
Product Overview
The Hallmark Industries MD0510B is a robust 1 HP DC motor designed for various industrial applications. It features a Totally Enclosed Fan Cooled (TEFC) enclosure, ensuring protection from dust and moisture, and is capable of variable speed operation.
Figure 1: Hallmark Industries MD0510B DC Motor. This image shows the complete assembly of the MD0510B DC motor, highlighting its compact design and robust construction with a foot mount for stable installation.
Key Features:
- 1 HP, 1750 RPM, 180 VDC
- 56C Frame, TEFC (Totally Enclosed Fan Cooled)
- Variable speed capable
- UL listed (UL File no.: E233961)
- Removable casting base for better rigidity
- Fan cooled for no temperature rise
- Long life brushes
- Highest quality magnets for increased motor efficiency
- Armature connections fused for reliability & low resistance
- Aluminum alloy endplate to prevent corrosion
- Dynamic balanced armature for smooth operation
Figure 2: Exploded view of MD0510B DC Motor components. This diagram illustrates the internal components of the motor, including the fan, brushes, armature, and endplate, highlighting features like fan cooling, long-life brushes, and dynamic balanced armature.
Setup and Installation
Proper installation is crucial for the motor's performance and longevity. Follow these steps carefully:
- Mounting: Securely mount the motor using the foot base to a stable, vibration-free surface. Ensure adequate clearance for ventilation.
- Electrical Connections:
- Verify the power supply matches the motor's voltage requirements (180 VDC).
- Connect the motor to a suitable DC power source and motor controller (if using variable speed).
- Ensure all wiring conforms to local electrical codes and standards.
- Properly ground the motor frame to prevent electrical hazards.
- Shaft Alignment: If connecting to a load via a coupling, ensure precise shaft alignment to prevent premature bearing wear and vibration.
- Initial Inspection: Before applying power, double-check all connections, mounting, and ensure no foreign objects are obstructing the motor's rotation or cooling fan.
Operating Instructions
Once installed, the MD0510B motor is ready for operation. Follow these guidelines:
- Start-up: Apply power gradually if using a variable speed drive. Avoid sudden full-voltage starts where possible to extend motor life.
- Monitoring: During operation, periodically check for unusual noises, excessive vibration, or overheating.
- Load: Do not exceed the motor's rated horsepower (1 HP) and torque (38 in. lbs.) to prevent overload and damage.
- Shutdown: Disconnect power when the motor is not in use or before performing any maintenance.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your DC motor.
- Cleaning: Keep the motor's exterior clean and free of dust and debris, especially the cooling fins and fan cover, to ensure efficient heat dissipation.
- Brush Inspection: Periodically inspect the carbon brushes for wear. Replace them when they reach their wear limit to prevent commutator damage.
- Bearing Lubrication: The motor bearings are typically sealed and lubricated for life. Refer to specific motor markings or contact support if lubrication is required.
- Connection Check: Annually check all electrical connections for tightness and signs of corrosion.
Troubleshooting
This section provides solutions to common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not start | No power supply; Incorrect wiring; Overload; Worn brushes. | Check power connections; Verify wiring diagram; Reduce load; Inspect and replace brushes. |
| Excessive noise or vibration | Misalignment; Loose mounting; Damaged bearings; Unbalanced load. | Check and correct alignment; Tighten mounting bolts; Inspect bearings; Balance load. |
| Motor overheating | Overload; Insufficient ventilation; High ambient temperature; Damaged fan. | Reduce load; Clear obstructions around motor; Ensure proper airflow; Inspect and replace fan if damaged. |
| Reduced speed or power | Low voltage; Worn brushes; Partial short circuit in winding. | Verify input voltage; Inspect and replace brushes; Consult a qualified technician for winding inspection. |
Specifications
Detailed technical specifications for the Hallmark Industries MD0510B DC Motor:
| Attribute | Value |
|---|---|
| Model Name | MD0510B |
| Horsepower | 1 hp |
| Speed | 1750 RPM |
| Voltage | 180 Volts DC |
| Frame Size | 56C |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| UL File No. | E233961 |
| Package Dimensions | 15.8 x 8.3 x 7.7 inches |
| Weight | Approx. 0.01 ounces (Note: This weight seems incorrect based on typical motor weights. Please refer to product packaging for accurate weight.) |
| Manufacturer | Hallmark Industries |
| Date First Available | March 16, 2012 |

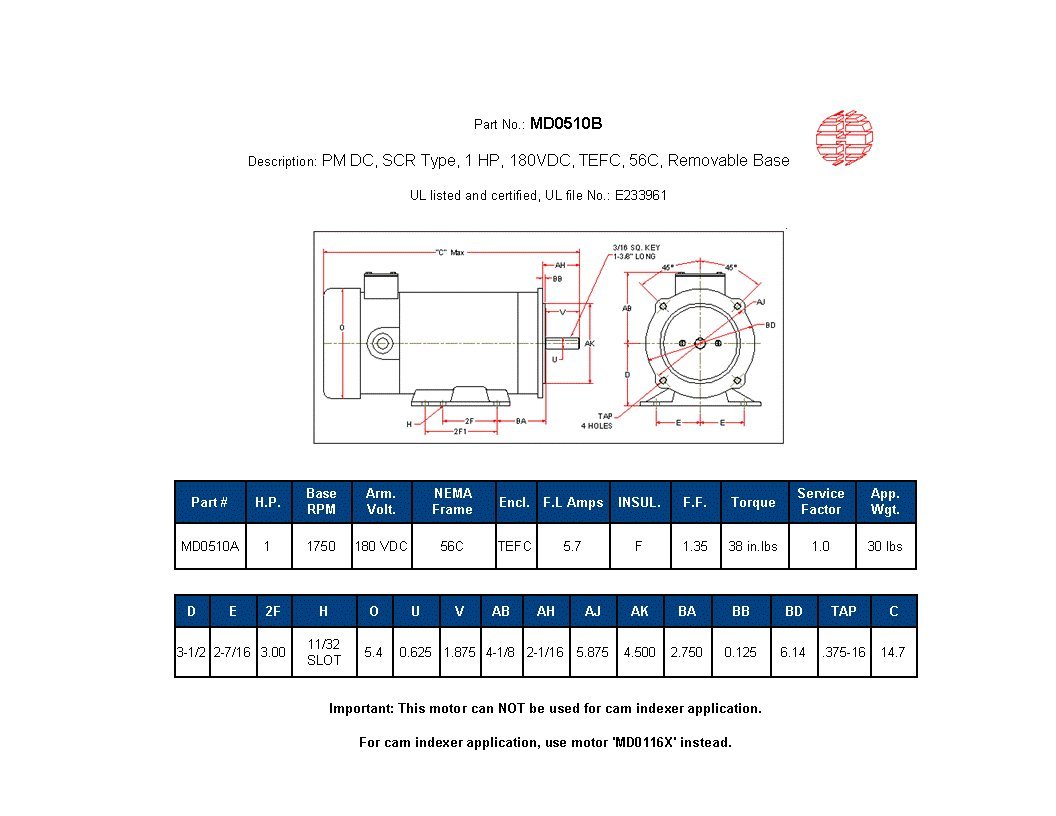

Figure 3: Technical drawing and specifications for MD0510B DC Motor. This diagram provides detailed dimensions and a table of electrical and mechanical specifications, including part number, horsepower, RPM, voltage, frame, and current ratings.
Warranty and Support
Specific warranty details for the Hallmark Industries MD0510B DC Motor are typically provided with the product packaging or can be obtained directly from the manufacturer or authorized dealer. Please retain your proof of purchase for warranty claims.
For technical support, service, or parts inquiries, please contact Hallmark Industries customer service. You can often find contact information on the manufacturer's official website or through your product retailer.
Hallmark Industries Contact: Refer to the official Hallmark Industries website or your purchase documentation for the most current contact information.
