1. Introduction
This manual provides essential information for the safe and effective use of your HOMCOM Pop-up Folding Gazebo. This 3x6 meter reception tent is designed for various outdoor events, offering a versatile space with natural light entry through its transparent windows and removable side panels. The gazebo features a pop-up system for quick and convenient setup and disassembly, along with a silver-coated Oxford 210D polyester roof for sun protection. Please read these instructions carefully before assembly and use.

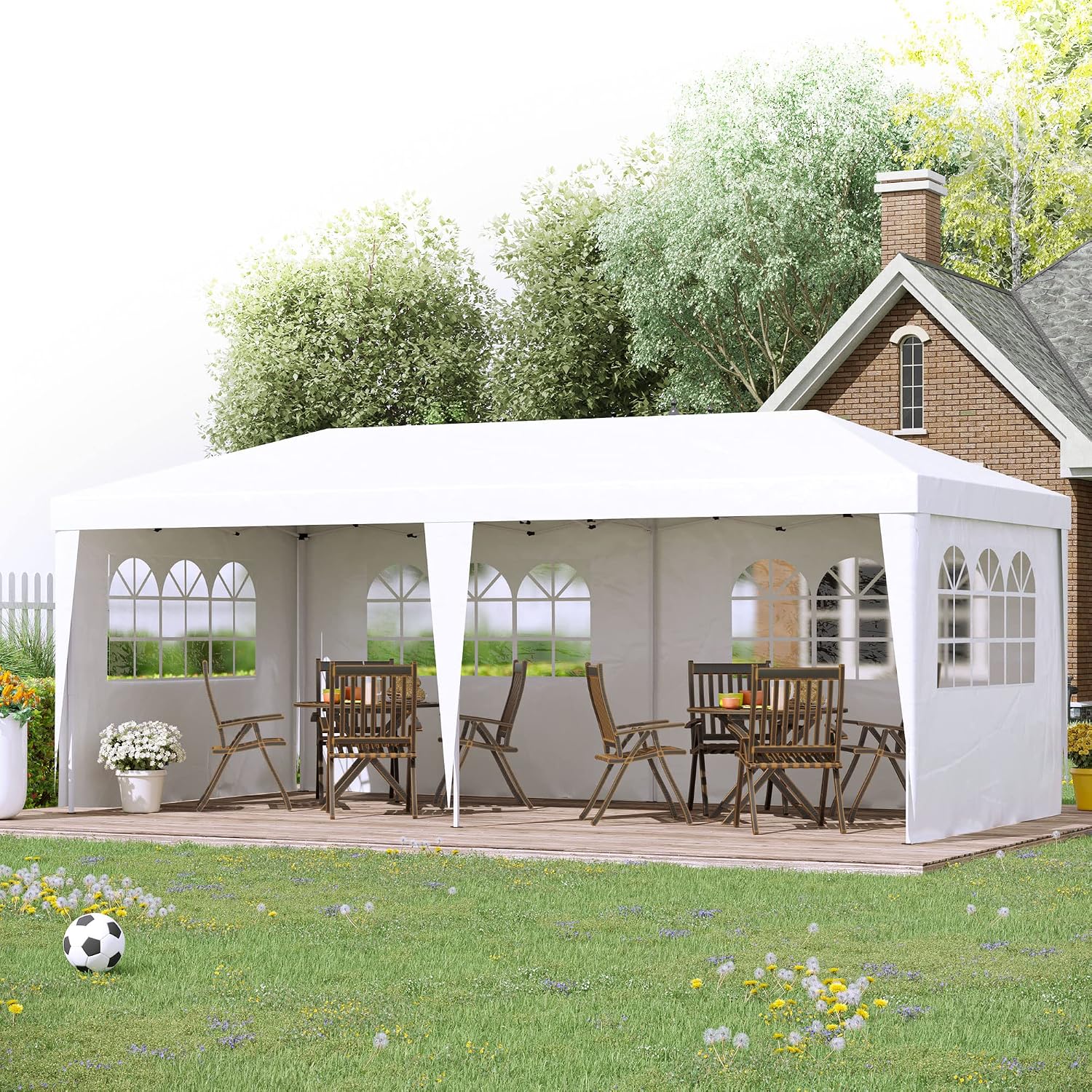

Image 1.1: The HOMCOM Pop-up Folding Gazebo providing a sheltered outdoor space.
2. Safety Information
Important: It is strongly advised not to use this gazebo outdoors in bad weather conditions such as heavy rain, strong winds, snow, or hail. Failure to adhere to this recommendation may result in damage to the product or personal injury. Always ensure the gazebo is securely anchored to the ground using the provided stakes and ropes.
- Ensure all components are correctly assembled before use.
- Do not hang heavy objects from the frame.
- Keep away from open flames and heat sources.
- Supervise children around the gazebo.
- Disassemble and store the gazebo during adverse weather conditions.
3. Package Contents
Verify that all parts are present before beginning assembly.
- 1 x Folding Tent Frame
- 1 x Roof Tarp (210D Oxford, silver coated)
- 4 x Removable Side Walls (210D Oxford polyester with transparent windows)
- 1 x Carry Bag
- 6 x Ropes
- 12 x Ground Anchor Stakes
4. Setup Instructions
The gazebo features a pop-up system for easy and quick assembly without tools. Two people are recommended for setup.
- Unpack Components: Remove the folding tent frame, roof tarp, side walls, ropes, and ground stakes from the carry bag.
- Expand Frame: With two people, gently pull the frame outwards from opposite corners until it begins to expand. Avoid forcing the frame.
- Attach Roof Tarp: Place the roof tarp over the expanded frame. Secure the tarp to the frame corners and edges using the integrated fasteners. Ensure the tarp is taut and evenly distributed.
- Extend Legs: Extend each leg of the frame to its full height, ensuring the locking mechanisms click into place.
- Attach Side Walls: If desired, attach the removable side walls to the frame using the hook-and-loop fasteners or ties provided. The side walls feature transparent windows for natural light.
- Secure to Ground: Use the provided ropes and ground anchor stakes to secure the gazebo firmly to the ground. Attach ropes to the frame's corners and stake them into the ground at an angle for maximum stability.
Image 4.1: The pop-up folding system allows for easy assembly and transport in the included carry bag.
Image 4.2: Proper ground anchoring with stakes and ropes is crucial for stability.
5. Operating Instructions
The HOMCOM Pop-up Folding Gazebo is designed to provide a temporary sheltered space for outdoor activities.
- Sun Protection: The silver-coated Oxford 210D roof offers protection from direct sunlight.
- Ventilation and Light: The transparent windows on the side walls allow natural light to enter. Side walls can be removed or rolled up to improve ventilation.
- Event Use: Ideal for garden parties, family gatherings, weddings, and other outdoor events.
Image 5.1: The gazebo with its removable side walls and transparent windows.
Image 5.2: The roof provides anti-UV protection, supported by a robust steel structure.
Video 5.1: Product overview demonstrating the features and use of the HOMCOM Pop-up Folding Gazebo.
6. Maintenance
Proper maintenance will extend the lifespan of your gazebo.
- Cleaning: Clean the fabric parts with a mild soap solution and water. Do not use harsh chemicals or abrasive cleaners. Rinse thoroughly and allow to air dry completely before storage.
- Frame Care: Wipe the steel frame with a damp cloth. Inspect for any signs of rust or damage.
- Storage: When not in use, especially during off-season or bad weather, disassemble the gazebo and store it in its carry bag in a dry, cool place away from direct sunlight.
- Inspection: Regularly check all connections, ropes, and stakes for wear and tear. Replace any damaged parts immediately.
Image 6.1: The gazebo fabric features a careful finish and is designed to be resistant to light moisture.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Gazebo unstable or collapses | Insufficient anchoring; strong winds; incorrect assembly. | Ensure all stakes and ropes are securely fastened. Disassemble in strong winds. Verify all frame connections are locked. |
| Water pooling on roof | Heavy rain; improper roof tension. | Do not use in heavy rain. Ensure roof tarp is taut. Gently push up from underneath to remove pooled water. |
| Fabric tearing or seams splitting | Excessive tension; prolonged exposure to harsh weather; material fatigue. | Avoid over-tightening. Do not use in bad weather. Consider replacing the roof tarp or side panels if severely damaged. |
| Frame parts bending or breaking | Strong winds; excessive weight; improper handling during assembly/disassembly. | Disassemble in strong winds. Do not hang heavy items. Handle frame carefully. Contact manufacturer for replacement parts if available. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | HOMCOM |
| Model Number | 100110-069W |
| Overall Dimensions (L x W x H) | 5.91L x 2.97W x 2.55H meters |
| Side Height | 2.00 meters |
| Folded Dimensions (L x W x H) | 32L x 22W x 121H cm |
| Side Wall Dimensions | 2.92L x 2.02H meters |
| Window Dimensions | 1.83L x 1.83H meters |
| Roof Material | 210D Oxford Polyester (silver coated) |
| Side Wall Material | 210D Oxford Polyester with transparent PVC windows |
| Frame Material | White lacquered steel tubes |
| Color | White |
| Item Weight | 12.82 kg |
| Water Resistance Level | Water-resistant (not waterproof for heavy rain) |
Image 8.1: Detailed dimensions of the HOMCOM Pop-up Folding Gazebo.
Image 8.2: Details of the steel frame and connection points for structural integrity.
9. Warranty and Support
For warranty information or technical support, please contact your retailer or the manufacturer directly. Keep your purchase receipt as proof of purchase. The manufacturer is HOMCOM.
