Cameo Light CLMPAR2 LED Light System User Manual

1. Introduction

Thank you for choosing the Cameo Light CLMPAR2 Compact LED Light System. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before initial use and keep it for future reference.

The CLMPAR2 is a versatile lighting solution featuring four flat PAR cans, each equipped with 7 super bright 3-watt TRI LEDs. It offers various control modes including DMX, master/slave, and standalone operation, making it suitable for a wide range of applications.

2. Safety Instructions

Always observe the following safety precautions to prevent electric shock, fire, or injury:

• Read all instructions carefully before operating the device.
• Ensure the power supply voltage matches the requirements specified on the unit.
• Do not open the housing. There are no user-serviceable parts inside. Refer all servicing to qualified personnel.
• Avoid direct eye exposure to the light source.
• Keep the device away from moisture, rain, and liquids.
• Ensure adequate ventilation around the unit to prevent overheating.
• Mount the device securely using appropriate hardware.
• Disconnect from the mains power before cleaning or maintenance.

3. Package Contents

Verify that all items are present and in good condition upon unpacking:

• 4 x Flat PAR Cans with TRI LEDs
• 1 x Light Bar
• 1 x Transport Bag/Case
• 1 x Instruction Manual (this document)
• Power Cable
• Mounting Hardware (e.g., tripod mount adapter)

Image: The Cameo Light CLMPAR2 system neatly packed within its dedicated transport case, showcasing the four PAR cans, the light bar, and accessories.

4. Product Overview

The Cameo Light CLMPAR2 system consists of a central light bar with four adjustable PAR cans. Each PAR can features 7 x 3W TRI LEDs, capable of producing a wide spectrum of colors.

4.1 Front View

Image: Front view of the Cameo Light CLMPAR2 LED system. Four individual PAR cans are attached to a horizontal bar, each emitting a different color (yellow, blue, green, purple), demonstrating the TRI-LED capabilities.

4.2 Rear View and Connections

Image: Rear view of the Cameo Light CLMPAR2 LED system. The central light bar features the control panel with an LCD display, DMX input/output ports, and power connections. The back of the four PAR cans are also visible.

The rear panel provides access to the control interface and various input/output connections:

• Power Input: Connects to mains power.
• DMX IN/OUT: 3-pin XLR connectors for DMX control.
• Control Display: LCD screen for menu navigation and settings.
• Control Buttons: MODE, ENTER, UP, DOWN for navigating the menu and adjusting settings.

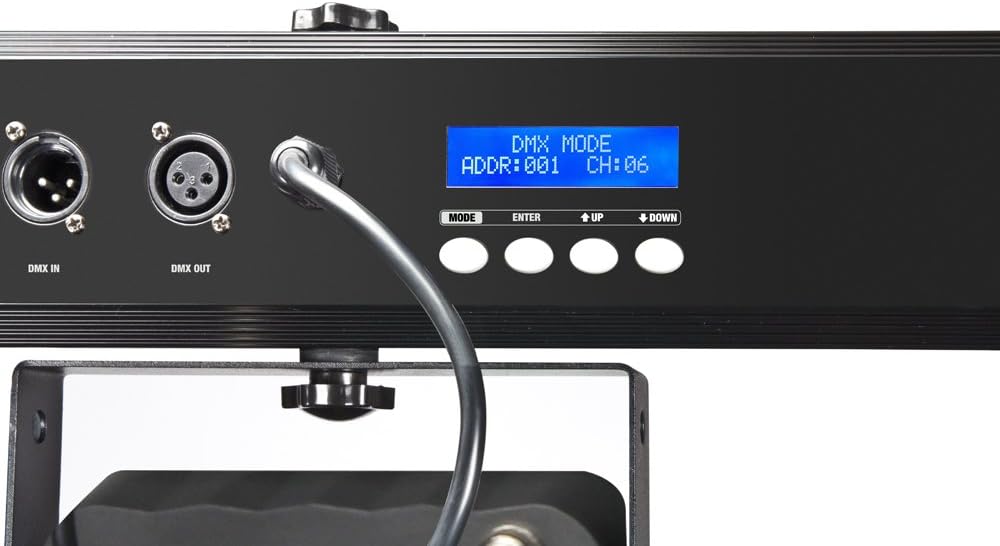

Image: Close-up view of the control panel on the Cameo Light CLMPAR2. The LCD display shows "DMX MODE ADDR:001 CH:06", indicating DMX address and channel settings. Buttons for MODE, ENTER, UP, and DOWN are clearly visible.

5. Setup

5.1 Mounting

The CLMPAR2 system is designed for easy mounting on a standard lighting tripod or truss system. It includes a tripod mount adapter compatible with 28mm TV outlets.

1. Attach the light bar securely to a stable tripod or truss using the provided mounting hardware.
2. Ensure all connections are tight and the system is balanced.
3. Adjust the angle of each PAR can as desired.

Image: The Cameo Light CLMPAR2 system is shown mounted on a tall, silver tripod. The four PAR cans are illuminated with different colors. A foot controller is visible on the ground, connected to the system.

5.2 Power Connection

Connect the supplied power cable to the power input on the rear of the light bar, then plug it into a suitable mains power outlet.

6. Operation

The CLMPAR2 offers multiple operating modes:

6.1 Standalone Mode

In standalone mode, the system operates using its internal programs without external control. Use the MODE, ENTER, UP, and DOWN buttons on the rear panel to select desired programs, colors, or sound-activated modes.

1. Press the MODE button to cycle through available standalone programs.
2. Use the UP and DOWN buttons to adjust parameters (e.g., speed, sensitivity).
3. Press ENTER to confirm selections.

6.2 Master/Slave Mode

Connect multiple CLMPAR2 units using DMX cables. Set one unit as the "Master" and others as "Slave" units. The slave units will mirror the master's operation.

1. Connect the DMX OUT of the Master unit to the DMX IN of the first Slave unit.
2. Daisy-chain subsequent Slave units by connecting DMX OUT to DMX IN.
3. Configure the Master unit to its desired standalone program.
4. Set all Slave units to "Slave" mode via their control panels.

6.3 DMX Control Mode

For advanced control, connect the CLMPAR2 to a DMX controller. The system supports various DMX channel modes.

1. Connect the DMX OUT of your DMX controller to the DMX IN of the CLMPAR2.
2. If using multiple DMX devices, daisy-chain them: DMX OUT of the first device to DMX IN of the next.
3. Set a unique DMX start address for each CLMPAR2 unit using the control panel (refer to the display image in Section 4.2).
4. Select the desired DMX channel mode (e.g., 3-channel, 6-channel) on the CLMPAR2 control panel to match your DMX controller's settings.
5. Consult your DMX controller's manual for specific programming instructions.

7. Maintenance

Regular maintenance ensures optimal performance and longevity of your CLMPAR2 system.

• Cleaning: Disconnect the unit from power. Use a soft, lint-free cloth to wipe the exterior. For lenses, use a specialized lens cleaner and cloth. Do not use abrasive cleaners or solvents.
• Inspection: Periodically check cables, connectors, and mounting hardware for any signs of wear or damage. Replace damaged components immediately.
• Storage: When not in use, store the system in its transport case in a dry, dust-free environment.

8. Troubleshooting

9. Specifications

10. Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official Cameo Light website. Keep your proof of purchase for warranty claims.

Manufacturer: Cameo Light

Website: www.cameolight.com (Example link, actual link may vary)
