Metra 99-7880B Dash Installation Kit User Manual

Introduction

The Metra 99-7880B Single/Double DIN Dash Installation Kit is designed to facilitate the installation of an aftermarket single or double DIN radio into 2011-Up Honda Odyssey vehicles. This kit ensures a precise, gapless fit between the new radio and the vehicle's dashboard, maintaining a factory-like appearance. It is constructed from high-grade ABS plastic with a matte black finish to match the original dash color and texture.

Product Overview

This installation kit provides the necessary components to integrate your new car stereo seamlessly.

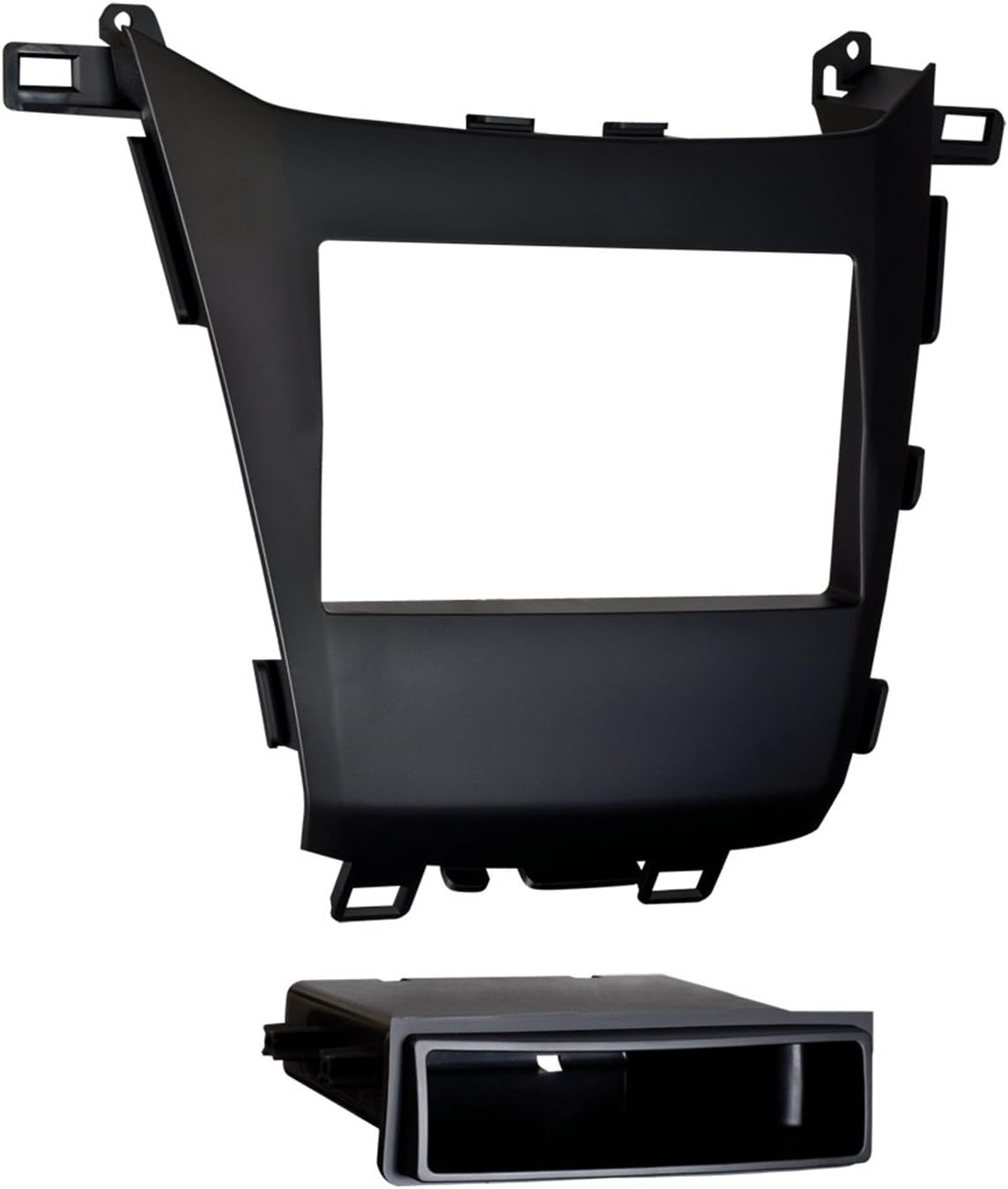

Image: The Metra 99-7880B dash kit, showing the main dash bezel and the included storage pocket for single DIN installations.

What's in the Box:

• Single/Double DIN Dash Kit
• Storage pocket (for single DIN mount applications)
• Mounting brackets (integrated or separate, as per design)
• Instruction Manual (this document)

Installation Guide

Before beginning the installation, ensure the vehicle's battery is disconnected to prevent electrical shorts. Refer to your vehicle's service manual for specific dashboard disassembly instructions.

Required Tools:

• Panel removal tools
• Screwdrivers (Phillips and flathead)
• Socket wrench set
• Wire cutters/strippers (for radio wiring, if applicable)

Installation Steps:

1. Preparation: Disconnect the negative terminal of the vehicle's battery.
2. Remove Factory Radio and Trim: Carefully remove the factory radio and surrounding dash trim panels. This typically involves prying off trim pieces and unscrewing the radio unit. Pay attention to any clips or hidden fasteners.
3. Transfer Components (if applicable): Some factory components, such as air vents or specific clips from the original dash bezel, may need to be transferred to the new Metra dash kit. For the 2011-Up Honda Odyssey, a piece from the top of the stock stereo may need to be removed and attached to this kit. Ensure all necessary components are securely fastened.
4. Assemble New Radio to Kit: Attach the aftermarket single or double DIN radio to the Metra dash kit's mounting brackets. If installing a single DIN radio, utilize the included storage pocket below the radio opening. Ensure the radio is flush and securely mounted within the kit.
5. Connect Wiring: Connect the aftermarket radio's wiring harness to the vehicle's wiring harness (using an appropriate wiring adapter, sold separately). Connect the antenna adapter.
6. Test Functionality: Before fully reassembling the dash, reconnect the vehicle's battery and test the new radio's functionality (power, audio, balance, fader, radio reception, etc.).
7. Reassemble Dash: Once confirmed operational, carefully reinsert the assembled radio and Metra dash kit into the dashboard opening. Ensure all clips engage and screws are tightened. Reattach all removed trim panels.
8. Final Check: Verify that all panels are flush and secure, and there are no gaps.

Operating Considerations

The Metra 99-7880B dash kit is a passive component designed to house and integrate your aftermarket radio. Its "operation" is in providing a stable and aesthetically pleasing mounting solution. Ensure your aftermarket radio is compatible with the single or double DIN standard for proper fitment.

Maintenance

The dash kit requires minimal maintenance. To clean, simply wipe the surface with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these may damage the finish.

Troubleshooting

Specifications

Warranty and Support

For specific warranty information or technical support regarding your Metra 99-7880B Dash Installation Kit, please contact Metra Electronics directly. Their official website typically provides contact details and additional resources.

Note: Installation by a qualified professional is recommended to ensure proper fitment and functionality.
