Introduction
Thank you for choosing the Orbegozo KFM 1230 Aluminum Stovetop Coffee Maker. This manual provides essential information for the safe and efficient operation of your new coffee maker. Please read these instructions carefully before first use and retain them for future reference.
Image: The Orbegozo KFM 1230 coffee maker, showcasing its classic design with a black base and silver top section, and an ergonomic black handle.
Safety Instructions
To ensure safe operation and prevent injury or damage, please observe the following precautions:
- Always keep the coffee maker out of reach of children and pets.
- The coffee maker becomes very hot during use. Use the handle to move it and avoid touching hot surfaces.
- Do not overfill the water chamber beyond the safety valve level.
- Ensure the upper and lower chambers are securely screwed together before placing on a heat source.
- Never place the coffee maker on a heat source without water in the lower chamber.
- Use only coarse ground coffee suitable for moka pots. Fine espresso grind can clog the filter.
- Do not use the coffee maker for purposes other than brewing coffee.
- Regularly inspect the safety valve and gasket for wear or damage. Replace if necessary.
Parts Identification
Familiarize yourself with the components of your Orbegozo KFM 1230 coffee maker:
Image: An exploded view of the Orbegozo KFM 1230 coffee maker, showing its individual components: the lower water chamber, the funnel filter basket, the rubber gasket, the perforated filter plate, and the upper collection chamber with lid and handle.
- Upper Chamber: Collects the brewed coffee.
- Lid: Covers the upper chamber.
- Handle: For safe handling when hot.
- Filter Plate: Sits inside the upper chamber, holding the gasket.
- Gasket: Creates a seal between the upper and lower chambers.
- Funnel Filter Basket: Holds the ground coffee.
- Lower Water Chamber: Holds the water for brewing, equipped with a safety valve.
- Safety Valve: Releases excess pressure to prevent over-pressurization.
Setup and First Use
Before using your coffee maker for the first time, follow these steps:
- Disassemble: Unscrew the upper chamber from the lower chamber. Remove the funnel filter basket, filter plate, and gasket.
- Clean: Wash all parts thoroughly with warm water and a mild detergent. Rinse well to remove any residue.
- First Brew (Seasoning): To season the coffee maker and remove any metallic taste, brew 2-3 batches of coffee that you will discard. Fill the lower chamber with water up to the safety valve. Insert the funnel filter basket and fill it loosely with inexpensive coarse ground coffee. Screw the upper chamber on tightly. Place on a medium heat source. Once brewed, discard the coffee. Repeat this process 2-3 times.
Operating Instructions
Follow these steps to brew delicious coffee:
- Fill Water Chamber: Unscrew the upper chamber from the lower chamber. Fill the lower water chamber with cold water up to the level of the safety valve. Do not exceed this level.
- Add Coffee: Insert the funnel filter basket into the lower chamber. Fill the funnel with coarse ground coffee. Do not tamp the coffee down; level it gently.
- Assemble: Place the filter plate and gasket back into the upper chamber. Carefully screw the upper chamber onto the lower chamber, ensuring it is tightly sealed to prevent leaks.
- Heat: Place the coffee maker on a stovetop over medium heat. Keep the lid open initially to monitor the brewing process.
- Brewing: As the water heats, pressure builds, forcing hot water up through the coffee grounds and into the upper chamber. You will hear a gurgling sound and see coffee flowing into the upper chamber.
- Serve: Once the upper chamber is full and the gurgling sound stops, remove the coffee maker from the heat source immediately. Close the lid and pour the freshly brewed coffee into cups.

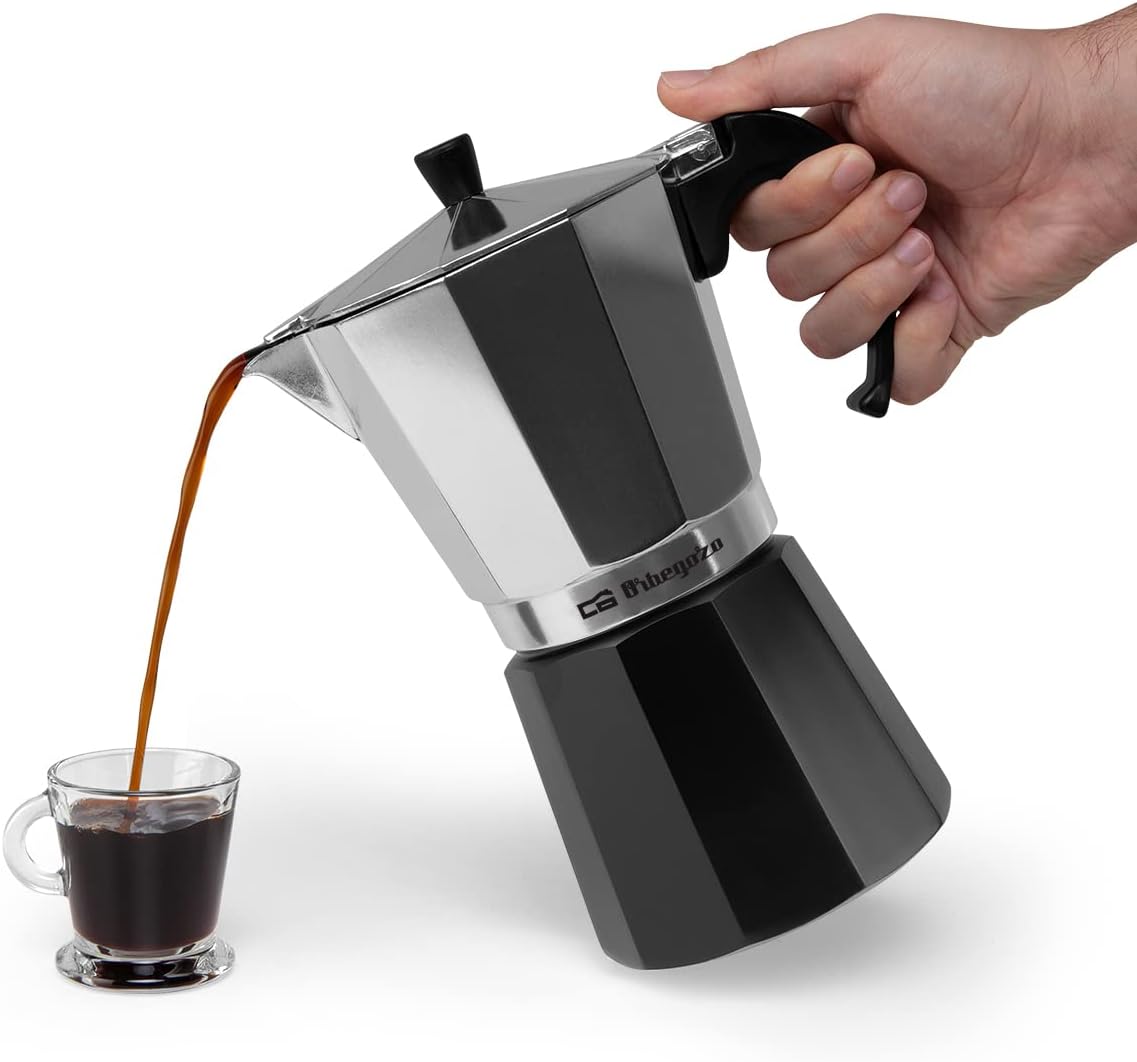

Image: A hand pouring freshly brewed coffee from the Orbegozo KFM 1230 coffee maker into a clear glass cup, demonstrating the serving process.
Cleaning and Maintenance
Proper cleaning and maintenance will extend the life of your coffee maker:
- Daily Cleaning: After each use, allow the coffee maker to cool completely. Disassemble all parts and rinse them with warm water. Do not use harsh detergents or abrasive materials, as these can damage the aluminum.
- Drying: Dry all parts thoroughly before reassembling or storing to prevent oxidation and water spots.
- Gasket and Filter: Periodically check the rubber gasket and filter plate for wear or damage. Replace them if they appear brittle, cracked, or if you notice leaks during brewing.
- Safety Valve: Ensure the safety valve is clear of any coffee grounds or debris. Do not attempt to tamper with or remove the safety valve.
- Dishwasher Use: This aluminum coffee maker is not dishwasher safe. Hand wash only.
Troubleshooting
Refer to this table for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Coffee does not brew or brews slowly. | Too fine coffee grind, coffee tamped too tightly, insufficient water, clogged filter. | Use coarser grind, do not tamp coffee, ensure water is filled to valve, clean filter. |
| Water leaks from the side. | Upper and lower chambers not screwed tightly, worn or damaged gasket. | Ensure chambers are tightly sealed, replace gasket if damaged. |
| Coffee tastes burnt or metallic. | Heat source too high, coffee maker not seasoned, not cleaned properly. | Use medium heat, perform seasoning brews, clean thoroughly. |
| Coffee is weak. | Not enough coffee, water level too high, heat too low. | Fill funnel with coffee, fill water to safety valve, use medium heat. |
Specifications
- Brand: Orbegozo
- Model: KFM 1230
- Capacity: 12 Cups
- Material: Aluminum
- Features: Ergonomic handle, safety valve, easy-to-clean interior
Warranty and Support
Orbegozo provides a 2-year availability for spare parts for the KFM 1230 model. For any questions, technical assistance, or to inquire about spare parts, please contact your retailer or the official Orbegozo customer support channels. Please retain your proof of purchase for warranty claims.
