1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your SCHNEIDER ELECTRIC Flashing LED Lamp, Red, 24VAC/DC. Please read this manual thoroughly before using the product and retain it for future reference.
2. Safety Information
Always observe the following safety precautions to prevent injury and damage to the product or connected equipment.
- Electrical Safety: Installation and servicing must be performed by qualified personnel in accordance with all local and national electrical codes. Ensure power is disconnected before installation or maintenance.
- Voltage Compatibility: Verify that the power supply voltage matches the lamp's specified voltage (24VAC/DC). Incorrect voltage can damage the lamp and pose a safety hazard.
- Mounting: Securely mount the lamp to prevent accidental dislodgement.
- Environmental Conditions: Do not expose the lamp to conditions beyond its specified operating environment (e.g., extreme temperatures, excessive moisture) unless rated for such use.
3. Setup and Installation
Follow these steps for proper installation of the flashing LED lamp.
- Power Disconnection: Ensure that the power supply to the installation area is completely disconnected and locked out before beginning any work.
- Mounting: Insert the lamp into a compatible socket or mounting base. Ensure it is firmly seated and secured.
- Wiring: Connect the lamp to the 24VAC/DC power supply according to the wiring diagram provided with your specific control panel or system. Observe correct polarity if applicable for DC circuits.
- Verification: Double-check all connections for security and correctness.
- Power Restoration: Restore power to the circuit and test the lamp's functionality.

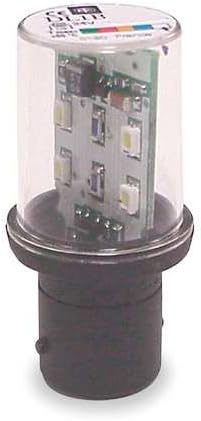

This image displays the SCHNEIDER ELECTRIC Flashing LED Lamp. It features a clear cylindrical housing revealing the internal LED circuit board, mounted on a black base. This view is helpful for understanding the physical form factor during installation.
4. Operating Instructions
The SCHNEIDER ELECTRIC Flashing LED Lamp is designed for straightforward operation once correctly installed.
- Power On: When power is supplied to the lamp, it will begin to flash immediately.
- Power Off: To turn off the lamp, disconnect the power supply to the circuit it is connected to.
- Function: The lamp provides a flashing red light signal, typically used for indication or warning purposes in industrial or commercial settings.
5. Maintenance
The LED lamp requires minimal maintenance due to its durable design.
- Cleaning: Periodically clean the exterior of the lamp with a soft, dry cloth to remove dust and debris. Do not use abrasive cleaners or solvents. Ensure power is disconnected before cleaning.
- Inspection: Regularly inspect the lamp for any signs of physical damage, loose connections, or discoloration. Address any issues promptly.
- LED Lifespan: LEDs have a long operational lifespan. Replacement is typically only necessary at the end of the product's service life or in case of damage.
6. Troubleshooting
If the lamp is not functioning as expected, refer to the following common issues and solutions:
- Lamp Does Not Flash:
- Check if power is supplied to the circuit.
- Verify that the lamp is correctly seated in its socket.
- Ensure wiring connections are secure and correct.
- Confirm the power supply voltage matches the lamp's 24VAC/DC requirement.
- Intermittent Flashing:
- Inspect for loose wiring connections.
- Check for unstable power supply.
- Dim or Incorrect Color Output:
- Ensure the lamp is clean and free of obstructions.
- Verify correct voltage supply.
If issues persist after troubleshooting, contact a qualified electrician or SCHNEIDER ELECTRIC customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Model | B0078S1HC2 |
| Brand | SCHNEIDER ELECTRIC |
| Light Type | LED |
| Light Color | Red |
| Voltage | 24VAC/DC |
| Specific Uses For Product | Lamp |
| Unit Count | 1.0 Count |
| Number of Items | 1 |
| Control Method | Remote |
| UPC | 094700521668 |
| Date First Available | February 13, 2012 |
8. Warranty Information
Specific warranty details for the SCHNEIDER ELECTRIC Flashing LED Lamp, Red, 24VAC/DC are not provided within the available product data. Please refer to the official SCHNEIDER ELECTRIC website or contact their customer service for comprehensive warranty terms and conditions.
9. Customer Support
Contact information for SCHNEIDER ELECTRIC customer support is not provided within the available product data. For technical assistance, service, or parts, please visit the official SCHNEIDER ELECTRIC website or consult your local distributor.
