TONE QA-03 Quick Adapter 3/8-Inch Drive Instruction Manual

Introduction

Thank you for choosing the TONE QA-03 Quick Adapter. This manual provides essential information for the proper setup, operation, and maintenance of your new tool. The QA-03 Quick Adapter is designed to enhance efficiency when working with ratchet handles and sockets, allowing for quick, fingertip turning in applications where full ratchet movement is not feasible or desired. It helps to quickly advance or retract bolts and nuts without engaging the ratchet mechanism.

Product Overview

The TONE QA-03 Quick Adapter is a compact and robust tool accessory designed to improve the speed and ease of fastening tasks. It features a 3/8-inch drive size, making it compatible with standard 3/8-inch drive ratchets and sockets.

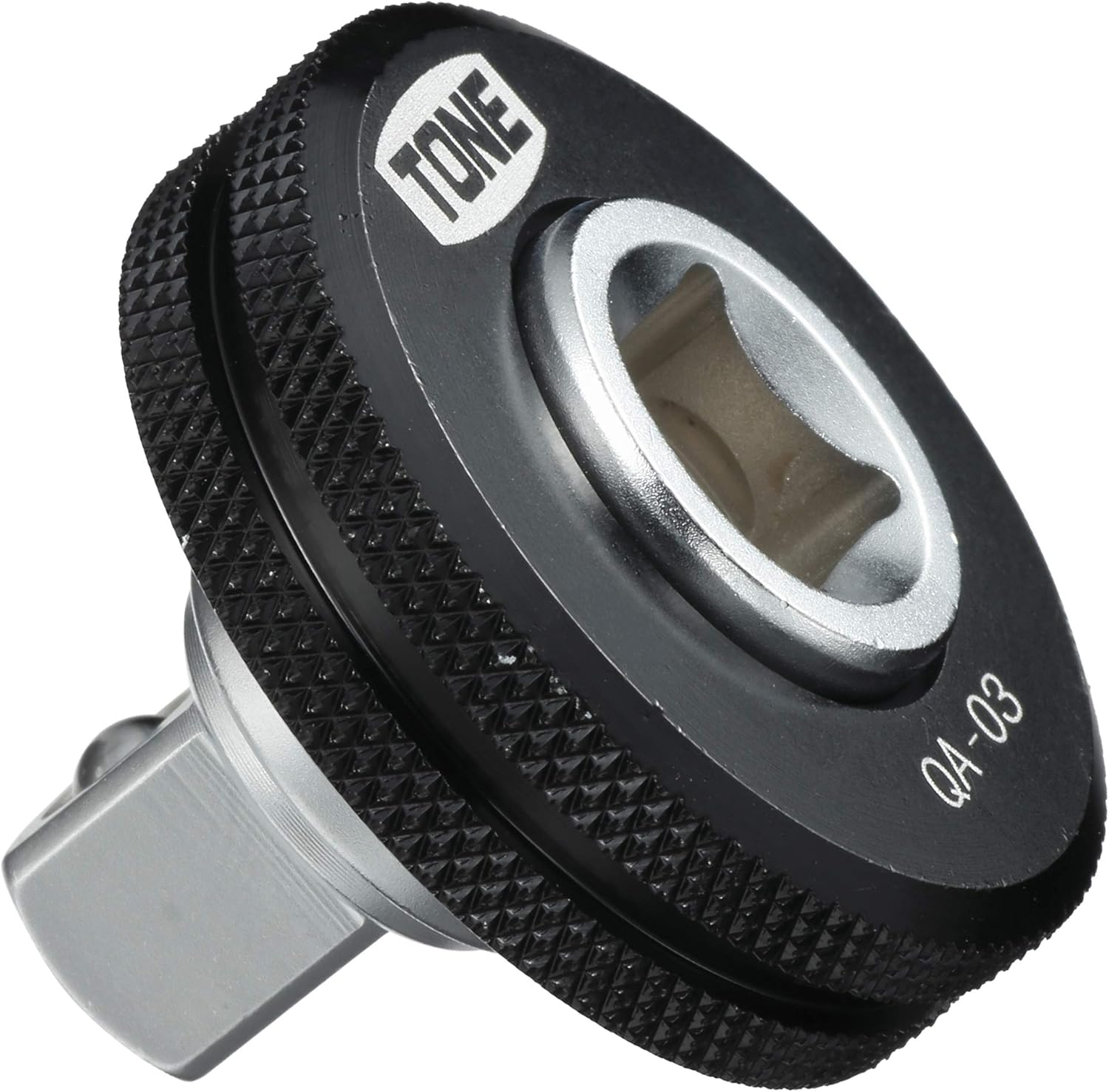

Figure 1: TONE QA-03 Quick Adapter, showing the 3/8-inch square drive input and output.

Key Features:

• Compact Design: Total Length: 1.2 inches (30 mm).
• Durable Construction: Outer Diameter: 1.4 inches (36 mm).
• Lightweight: Weighs approximately 1.8 oz (50 g).
• Precision Engineered: Made in Japan, ensuring high quality and reliability.
• Enhanced Efficiency: Allows for rapid turning of fasteners by hand, bypassing the ratchet mechanism.

Setup

The TONE QA-03 Quick Adapter is designed for straightforward integration into your existing 3/8-inch drive tool set.

1. Select Your Ratchet: Choose a 3/8-inch drive ratchet handle.
2. Attach the Adapter: Insert the square drive input of the QA-03 Quick Adapter onto the drive tang of your ratchet handle. Ensure it is securely seated.
3. Attach the Socket: Select the appropriate 3/8-inch drive socket for your fastener. Insert the socket onto the square drive output of the QA-03 Quick Adapter. Ensure the socket is fully engaged.

Figure 2: The QA-03 Quick Adapter correctly installed between a ratchet handle and a socket.

Once assembled, the quick adapter allows you to manually rotate the socket by gripping the knurled outer ring, providing rapid turning action for fasteners that are not yet tight or are being loosened.

Operating Instructions

The TONE QA-03 Quick Adapter is designed for efficient, rapid turning of fasteners. It is particularly useful for quickly advancing or retracting bolts and nuts before or after applying final torque with the ratchet.

1. Initial Engagement: Place the assembled socket onto the fastener (bolt or nut).
2. Rapid Turning: With one hand holding the ratchet handle, use your other hand to grip the knurled outer ring of the QA-03 Quick Adapter. Rotate the adapter clockwise to tighten or counter-clockwise to loosen the fastener. This allows for quick rotation without engaging the internal mechanism of the ratchet.
3. Final Torque: Once the fastener is snug (for tightening) or sufficiently loose (for loosening), you can then use the ratchet handle in the conventional manner to apply the necessary torque. The quick adapter remains in place and does not interfere with standard ratchet operation.
4. Disengagement: After use, simply pull the socket off the adapter, and the adapter off the ratchet.

Note: The quick adapter is intended for rapid turning and not for applying high torque. Always use the ratchet handle for final tightening or breaking loose stubborn fasteners.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your TONE QA-03 Quick Adapter.

• Cleaning: After each use, wipe the adapter clean with a dry cloth to remove any dirt, grease, or debris. For stubborn grime, a mild solvent or degreaser can be used, followed by thorough drying.
• Lubrication: Periodically apply a light coat of machine oil to the square drive ends to prevent rust and ensure smooth attachment and detachment of sockets and ratchets.
• Storage: Store the quick adapter in a clean, dry environment, away from excessive moisture or corrosive materials.
• Inspection: Regularly inspect the adapter for any signs of wear, damage, or deformation. If any damage is observed, discontinue use and replace the unit.

Troubleshooting

If you encounter issues while using your TONE QA-03 Quick Adapter, consider the following:

• Difficulty Attaching/Detaching:
  • Ensure both the ratchet and socket are 3/8-inch drive size.
  • Check for any debris or rust on the square drive ends of the adapter, ratchet, or socket. Clean and lubricate if necessary.
  • Avoid forcing the connection; components should slide together smoothly with minimal effort.
• Adapter Feels Loose:
  • Verify that the adapter is fully seated on both the ratchet and the socket.
  • If the adapter itself feels loose or wobbly, it may be damaged. Discontinue use and consider replacement.
• Ineffective Turning:
  • Ensure you are gripping the knurled outer ring firmly for manual rotation.
  • For very tight fasteners, the quick adapter is not designed to break them loose. Use the ratchet handle directly for initial loosening or final tightening.

If problems persist, contact TONE customer support or your retailer for further assistance.

Specifications

Detailed specifications for the TONE QA-03 Quick Adapter:

Figure 3: Dimensions of the TONE QA-03 Quick Adapter.

Warranty and Support

For information regarding warranty coverage, product support, or to inquire about replacement parts, please refer to the official TONE website or contact your authorized TONE retailer. Keep your purchase receipt as proof of purchase for any warranty claims.

Contact Information:

• Website: Visit the TONE Store on Amazon (for general brand information)
• Refer to product packaging or the official TONE corporate website for direct manufacturer contact details.
