1. Product Overview
The Givi Z661 is a genuine replacement lock cylinder designed for specific Givi motorcycle top cases. This component is essential for maintaining the security and functionality of your luggage system. It is compatible with Givi E52, E55, V46, and V35 models, ensuring a precise fit and reliable operation. This manual provides detailed instructions for installation, operation, maintenance, and troubleshooting to help you get the most out of your replacement lock.
Image 1.1: The Givi Z661 replacement lock cylinder. This image shows the complete lock assembly, ready for installation into a compatible Givi top case.
2. Installation Instructions
Before beginning installation, ensure your motorcycle top case is empty and securely placed on a stable surface. It is recommended to wear appropriate safety gear, such as gloves, during the installation process.
2.1 Tools Required
- Small flat-head screwdriver (optional, for old lock removal)
- New Givi Z661 lock cylinder
- New keys provided with the lock
2.2 Step-by-Step Installation
- Remove Old Lock (if applicable): If replacing an existing lock, locate the retaining clip or screw that secures the old lock cylinder in place. Carefully remove it. Gently pull the old lock cylinder out from its housing.
- Prepare New Lock: Ensure the new Givi Z661 lock cylinder is clean and free of debris. Insert one of the new keys into the new lock cylinder.
- Insert New Lock: Align the new lock cylinder with the opening in your Givi top case. Gently push the lock cylinder into its housing until it clicks or seats firmly into place. Ensure the key slot is correctly oriented.
- Secure Lock: If your top case uses a retaining clip or screw, re-install it to secure the new lock cylinder. Test the lock by turning the key to ensure it operates smoothly and locks/unlocks the top case mechanism.
- Final Check: Remove the key and attempt to open the top case. Ensure it remains securely locked. Then, insert the key and unlock it to confirm proper function.
Image 2.1: Side view of the Givi Z661 lock cylinder. This view highlights the external casing and the key entry point, aiding in correct orientation during installation.
3. Operating Instructions
Operating the Givi Z661 replacement lock is straightforward, designed for ease of use and security.
3.1 Locking the Top Case
- Ensure the top case lid is fully closed and latched.
- Insert the key fully into the lock cylinder.
- Turn the key clockwise (or counter-clockwise, depending on the specific top case model) until the lock mechanism engages and the lid is secured.
- Remove the key. Always ensure the key is removed after locking to prevent loss or damage during travel.
3.2 Unlocking the Top Case
- Insert the key fully into the lock cylinder.
- Turn the key counter-clockwise (or clockwise) until the lock mechanism disengages.
- The top case lid can now be opened.
- Remove the key once the top case is open or before closing and locking again.

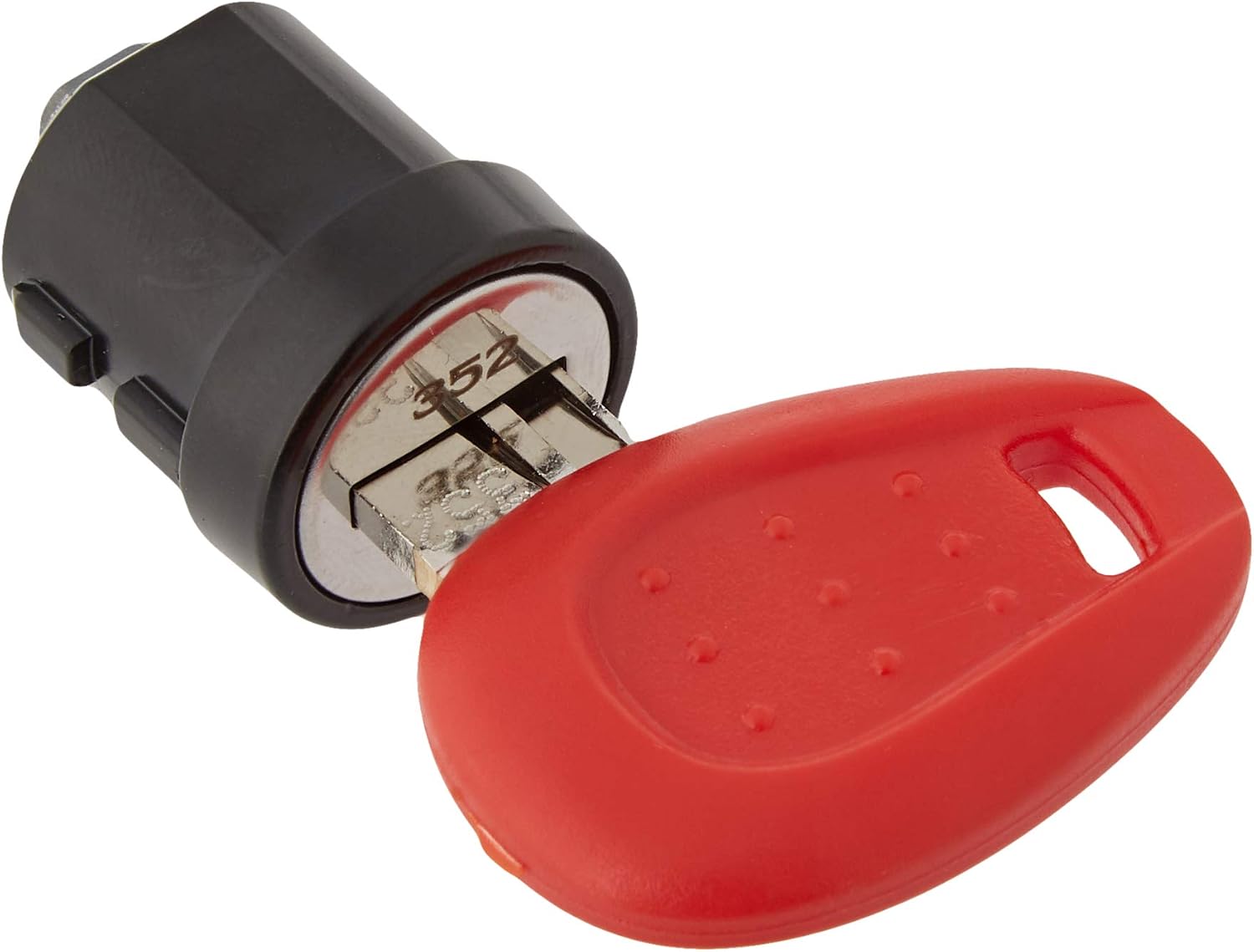

Image 3.1: The Givi Z661 lock cylinder with a key inserted. This demonstrates the correct way to insert the key for locking or unlocking the top case.
4. Maintenance
Proper maintenance ensures the longevity and smooth operation of your Givi Z661 replacement lock.
- Lubrication: Periodically (e.g., every 6-12 months, or more frequently in harsh conditions), apply a small amount of graphite powder or a silicone-based lubricant specifically designed for locks into the keyhole. Avoid oil-based lubricants as they can attract dirt and grime.
- Cleaning: Keep the exterior of the lock cylinder clean. Wipe away any dirt, dust, or road grime with a soft, damp cloth. Ensure no foreign objects enter the keyhole.
- Key Care: Avoid using excessive force when inserting or turning the key. Do not use bent or damaged keys, as this can damage the internal mechanism of the lock. Keep spare keys in a safe place.
Image 4.1: Internal mechanism of the Givi Z661 lock. This view shows the tumblers and springs, emphasizing the delicate components that benefit from proper lubrication and care.
5. Troubleshooting
If you encounter issues with your Givi Z661 replacement lock, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Key does not insert fully or is stiff. | Debris in keyhole, bent key, lack of lubrication. | Check key for damage. Use compressed air to clear debris. Apply graphite lubricant to the keyhole. |
| Lock does not turn or is difficult to turn. | Internal mechanism corrosion, lack of lubrication, incorrect key, misaligned lock. | Ensure you are using the correct key. Apply graphite lubricant. If recently installed, check for proper alignment. Do not force the key. |
| Lock does not secure the top case lid. | Lock mechanism not engaging, incorrect installation, damaged internal components. | Verify the lock cylinder is fully seated and secured. Ensure the lid is properly closed before attempting to lock. If the issue persists, the internal mechanism may be damaged, requiring professional inspection or replacement. |
| New lock does not fit the top case. | Incompatibility with top case model. | Double-check the compatibility list (E52, E55, V46, V35). Ensure the lock is correctly oriented. If the model is not listed, this lock is not compatible. |
6. Specifications
Key technical details for the Givi Z661 Replacement Lock.
- Model: Z661
- Brand: Givi
- Material: Steel
- Color: Black
- Item Weight: 40 g
- Product Dimensions (approximate): 35 x 35 x 35 cm (Note: These dimensions may refer to packaging)
- Compatibility: Givi E52, E55, V46, V35 Top Cases
7. Warranty Information
Specific warranty details for the Givi Z661 replacement lock are typically provided at the point of purchase or within the product packaging. For comprehensive warranty information, please refer to the documentation included with your purchase or visit the official Givi website. Keep your proof of purchase for any warranty claims.
8. Support
If you require further assistance or have questions not covered in this manual, please contact Givi customer support or your authorized Givi dealer. When contacting support, please have your product model number (Z661) and proof of purchase readily available.
Givi Official Website: www.givi.it (Please check for your regional Givi website for local support contacts.)
