Introduction
The Aqua Power C4 Quick Dry Commercial Carpet Extractor is a robust, commercial-grade hot water extractor designed for effective carpet and upholstery cleaning. Engineered for durability and performance, this machine is built to provide years of reliable service. It features an adjustable handle, a large four-gallon tank, and commercial-grade components, making it suitable for both residential and professional use. The C4 has earned the top rating from the Carpet and Rug Institute, ensuring superior cleaning results.
Image: The Aqua Power C4 Quick Dry Commercial Carpet Extractor, a powerful machine designed for deep cleaning carpets and upholstery.
Setup
Before operating your Aqua Power C4, ensure proper setup for optimal performance and safety.
1. Handle Adjustment
The machine features an adjustable and collapsible handle for comfortable operation and compact storage. To adjust the handle, locate the adjustment mechanism near the base of the handle and follow the instructions provided on the machine's label. Ensure the handle is securely locked in place before use.
2. Filling the Solution Tank
The Aqua Power C4 is equipped with a large four-gallon solution tank. To fill, remove the recovery bucket and pour hot water and your chosen cleaning solution into the designated tank. The design allows for convenient filling and emptying, minimizing downtime during cleaning tasks. Note that the unit contains a heating element but does not generate steam.
3. Connecting Accessories
If using a hand tool or wand attachment (sold separately), connect it to the appropriate ports on the machine. Ensure all connections are secure to prevent leaks and maintain suction.
4. Power Connection
Connect the machine's power cord to a suitable electrical outlet. The unit is hand-operated in the sense that it is not battery-powered and requires a direct electrical connection for operation.
Image: A detailed diagram illustrating the easy-to-reach switches, adjustable handle, sight tubes, and removable recovery bucket for efficient operation.
Image: Overhead view of the Aqua Power C4, highlighting the control panel and the mechanism for adjusting the handle.
Operating Instructions
The Aqua Power C4 is designed for efficient and effective deep cleaning of carpets and upholstery.
1. Pre-Cleaning Preparation
Before operating the extractor, vacuum the area thoroughly to remove loose dirt and debris. For heavily soiled areas or stubborn spots, pre-treat with an appropriate cleaning solution. The machine's hand tool (if acquired) is particularly effective for spot treatment before general cleaning.
2. General Operation
Engage the appropriate switches for spraying solution and activating the vacuum. Slowly push the machine forward over the carpet, allowing the solution to penetrate the fibers. Pull the machine back over the same area to extract the dirty water. Overlap each pass slightly to ensure comprehensive cleaning.
3. Efficient Water Usage
The C4 Quick Dry Extractor is designed for superior value, using approximately half the water compared to many leading brands. This efficiency allows you to clean larger areas without frequent refilling and emptying of the tanks, contributing to quicker drying times.
4. Upholstery and Spot Cleaning
For upholstery or hard-to-reach areas, utilize the hand tool. Apply solution and extract carefully, ensuring not to over-wet the fabric. The long hose of the hand tool provides excellent reach for detailed cleaning.
Image: The Aqua Power C4 is highly effective for cleaning up pet and kid messes, providing a clean environment for families.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your Aqua Power C4.
1. Post-Operation Cleaning
After each use, empty the dirty water from the recovery bucket. Rinse both the solution tank and the recovery bucket thoroughly with clean water. It is crucial to clean the machine to prevent residue buildup and maintain hygiene.
2. Inspecting Components
Periodically inspect all hoses, connections, and the main unit for any signs of wear, damage, or blockages. Ensure the sight tubes are clear for accurate monitoring of water levels. The robust construction of the C4 means it is built to last, but regular checks are still recommended.
3. Storage
Store the machine in a clean, dry place. The collapsible handle allows for more compact storage. Ensure all tanks are empty and dry before storing to prevent mold or mildew growth.
Image: A side view of the Aqua Power C4, illustrating the various hoses and connections that should be regularly inspected for proper maintenance.
Troubleshooting
This section provides solutions to common issues you might encounter with your Aqua Power C4.
1. No Suction or Poor Suction
- Check if the recovery bucket is properly sealed and latched.
- Inspect hoses for kinks, blockages, or disconnections.
- Ensure the recovery bucket is not overfilled.
2. No Solution Spray
- Verify that the solution tank has enough water and cleaning solution.
- Check for blockages in the spray nozzle.
- Ensure the spray switch is activated.
3. Machine Not Turning On
- Confirm the power cord is securely plugged into a working electrical outlet.
- Check the circuit breaker if the outlet has no power.
- Ensure all switches are in the correct operating position.
For issues not covered here or persistent problems, please contact factory support for assistance. The manufacturer provides full support and parts availability.
Specifications
| Feature | Detail |
|---|---|
| Brand | Aqua Power/Kent Investment/7in1 |
| Model Number | FERGRELMAABBCC |
| Color | Blue And Gray |
| Item Weight | 52 Pounds |
| Style | Modern |
| Power Source | Hand-Operated (Electric Corded) |
| Manufacturer | Kent Investment Corp |
| UPC | 745479800019 |
| ASIN | B0071LLOOW |
| Date First Available | January 25, 2012 |
Image: The Aqua Power C4 is certified for superior deep cleaning, effective soil removal, efficient water recovery, and fiber protection.

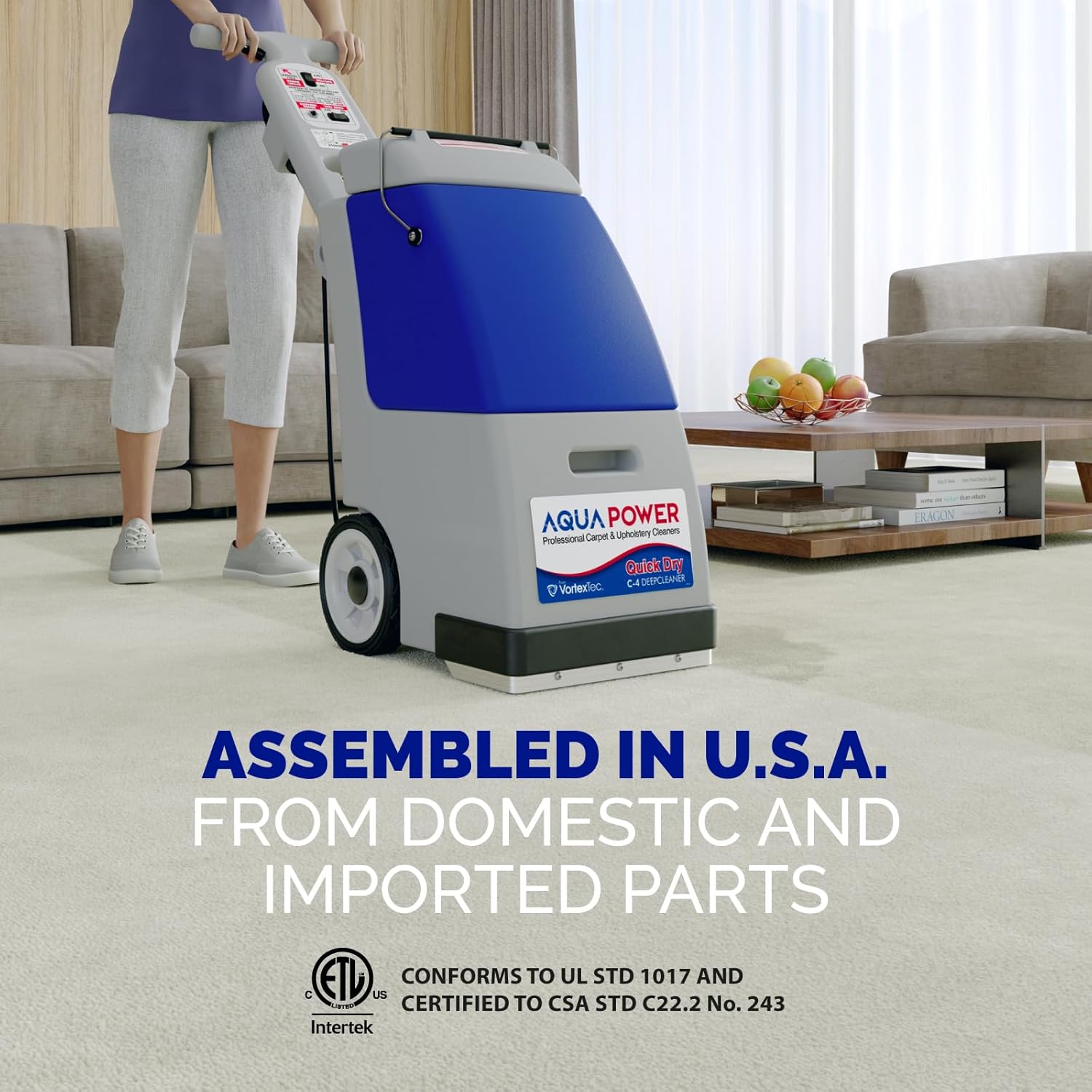

Image: The Aqua Power C4 is proudly assembled in the U.S.A. from domestic and imported parts, conforming to safety standards.
Warranty and Support
The Aqua Power C4 is built for longevity and designed to provide years of service. The manufacturer, Kent Investment Corp, offers full support and parts availability for this product. Its design emphasizes ease of repair and a long lifecycle, making it an ideal investment for both home and business use.
For any inquiries regarding operation, maintenance, parts, or service, please contact the manufacturer's customer support. Refer to the product packaging or the manufacturer's official website for the most current contact information.
Image: The Aqua Power C4 is ideal for businesses such as cleaning services, hotels, restaurants, and auto detailing due to its durability and ease of maintenance.
