1. Introduction and Overview
The SuperSprings SSF-202-47 SumoSprings Front are a patented suspension product engineered to improve your vehicle's performance. These components are designed to enhance load-carrying capability, stabilize sway, and contribute to overall driver control and ride comfort. Manufactured from proprietary closed micro-cellular urethane, SumoSprings provide a smooth and progressive spring rate with superior damping properties. They are a maintenance-free solution, requiring no air lines or compressors.
This manual provides essential information regarding the proper installation, function, and care of your SumoSprings to ensure optimal performance and longevity.
Image 1.1: Four SuperSprings SSF-202-47 SumoSprings Front units. These are the primary components for enhancing your vehicle's front suspension.
2. Product Features
- Enhanced Load Carrying: Designed to support additional weight, improving stability when carrying heavy loads.
- Sway Stabilization: Reduces vehicle sway, particularly during turns or when encountering uneven road surfaces.
- Improved Ride Comfort: Contributes to a smoother and more controlled driving experience by working alongside existing suspension components.
- Maintenance-Free: Requires no ongoing maintenance, air adjustments, or external compressors.
- Durable Construction: Made from tough, long-lasting micro-cellular urethane to withstand harsh driving conditions.
- Progressive Spring Rate: Offers variable resistance, becoming firmer as more compression is applied.
- Vehicle Specific Fit: Engineered for specific vehicle models to ensure proper integration and performance.

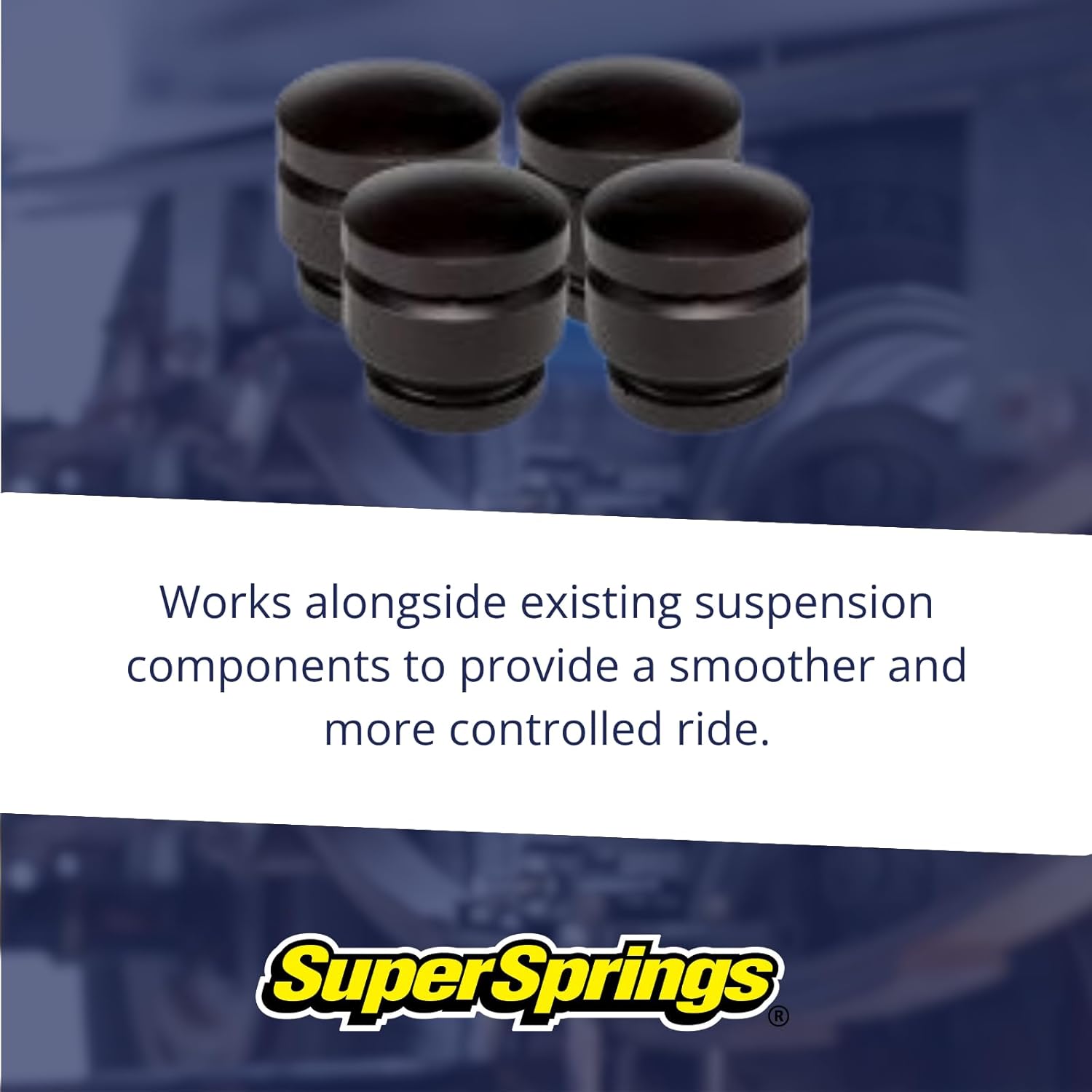

Image 2.1: Illustration depicting SumoSprings integrated with a vehicle's existing suspension system. These components are designed to complement your vehicle's original suspension for a smoother and more controlled ride.
Image 2.2: Visual representation of how SumoSprings help minimize vehicle sway. This feature is particularly beneficial during turns or when carrying heavy loads, enhancing overall stability.
3. Vehicle Compatibility
The SuperSprings SSF-202-47 SumoSprings Front are specifically designed for the following vehicle models:
- Chevrolet Silverado 2500HD (2011-2023)
- Chevrolet Silverado 3500HD (2011-2023)
- GMC Sierra 2500HD (2011-2023)
- GMC Sierra 3500HD (2011-2023)
It is crucial to verify your vehicle's make, model, and year against this list to ensure proper fitment and performance. Using these components on incompatible vehicles may lead to improper function or damage.
Image 3.1: A white pickup truck, representing compatible Chevrolet Silverado and GMC Sierra models from 2011-2023. This image visually confirms the vehicle types for which the SSF-202-47 SumoSprings are designed.
4. Safety Information
WARNING: Improper installation or use of this product can lead to serious injury or vehicle damage. Always follow all instructions carefully.
- Always wear appropriate personal protective equipment (PPE) including safety glasses and gloves during installation.
- Ensure the vehicle is securely supported on jack stands or a lift before working underneath it. Never rely solely on a jack.
- Do not exceed the manufacturer's Gross Vehicle Weight Rating (GVWR) or Gross Axle Weight Rating (GAWR) for your vehicle.
- If you are unsure about any step of the installation process, consult a qualified mechanic.
- Keep hands and clothing clear of moving parts.
5. Setup and Installation
The SumoSprings Front are designed as a replacement or upgrade to your vehicle's factory bump stops. While designed for straightforward installation, some mechanical aptitude and tools are required. Professional installation is recommended if you are not comfortable performing vehicle modifications.
Required Tools:
- Vehicle jack and jack stands or hydraulic lift
- Wheel chocks
- Basic hand tools (wrenches, sockets)
- Torque wrench
- Safety glasses and gloves
General Installation Steps:
- Prepare Vehicle: Park the vehicle on a level surface. Engage the parking brake and chock the rear wheels.
- Lift Vehicle: Safely lift the front of the vehicle using a jack and support it securely with jack stands. Ensure the front suspension is hanging freely.
- Locate Factory Bump Stops: Identify the existing factory bump stops on the front suspension. These are typically located above the control arms.
- Remove Factory Bump Stops: Carefully remove the factory bump stops. This may involve unbolting them or twisting them out, depending on your vehicle's design. Note that older or rusty vehicles may require additional effort or tools for removal.
- Install SumoSprings: Position the SumoSprings in the location where the factory bump stops were removed. The SumoSprings are a one-piece unit. Ensure they are seated correctly and securely. Some installations may require minor adjustments or trimming for a snug fit, especially on older vehicles.
- Secure SumoSprings: Fasten the SumoSprings according to the specific instructions provided with your product packaging. Ensure all bolts are tightened to the manufacturer's recommended torque specifications.
- Lower Vehicle: Carefully lower the vehicle to the ground.
- Test Drive: Perform a short test drive to ensure proper function and feel. Listen for any unusual noises and check for proper suspension travel.
Note: Specific installation details may vary by vehicle year and model. Always refer to the detailed instructions included in your product packaging for precise steps and torque specifications.
Image 5.1: A visual emphasizing the design for straightforward installation of SumoSprings. While designed for ease, proper tools and safety precautions are essential.
6. Operating Principles
Once installed, the SumoSprings operate passively, engaging as needed to support your vehicle's suspension. They are designed to work in conjunction with your existing springs and shock absorbers.
- Progressive Engagement: As your vehicle encounters bumps, carries a load, or experiences body roll, the SumoSprings compress. Their micro-cellular urethane material provides a progressive resistance, meaning they become firmer as they compress further.
- Load Support: When carrying heavy loads, the SumoSprings help prevent excessive squatting of the front end, maintaining a more level stance and improving steering response.
- Sway Control: During cornering or sudden maneuvers, the SumoSprings resist lateral movement, reducing body roll and enhancing stability.
- Impact Absorption: They absorb road impacts, reducing harshness and improving overall ride quality, especially over rough terrain or potholes.
Image 6.1: An illustration demonstrating how SumoSprings reduce unwanted movement within the suspension system. This contributes to a safer and more comfortable driving experience by minimizing excessive bouncing or jarring.
7. Maintenance
The SuperSprings SSF-202-47 SumoSprings are designed to be maintenance-free. They do not require air pressure adjustments, lubrication, or periodic inspections beyond general vehicle maintenance checks.
- Periodic Visual Inspection: During routine vehicle service, visually inspect the SumoSprings for any signs of damage, cracking, or unusual wear.
- Cleaning: If desired, clean the SumoSprings with mild soap and water. Avoid harsh chemicals or solvents.
Image 7.1: A close-up view of the SumoSprings material, highlighting its robust and durable composition. This material is engineered to withstand harsh driving conditions and heavy use without requiring frequent maintenance.
8. Troubleshooting
If you experience any issues after installing your SumoSprings, consider the following troubleshooting steps:
- Increased Stiffness: A slightly stiffer ride is a common characteristic of suspension enhancements. If the ride feels excessively harsh, re-check the installation to ensure the SumoSprings are not pre-loaded or compressed at rest more than intended.
- Unusual Noises: If you hear clunking or squeaking, inspect the mounting points. Ensure all fasteners are tight and that the SumoSprings are not rubbing against other suspension components.
- Uneven Ride Height: Verify that both SumoSprings are installed correctly and seated evenly. Ensure no other suspension components are damaged or worn.
- Difficulty During Installation: Some users report that installation can be challenging, especially on older vehicles with rust or tight clearances. If you encounter significant difficulty, consider seeking professional assistance. Do not force components, as this can cause damage.
For persistent issues, contact SuperSprings customer support.
9. Specifications
| Specification | Detail |
|---|---|
| Model Number | SSF-202-47 |
| Brand | SuperSprings |
| Type | Front Suspension Enhancement (SumoSprings) |
| Material | Proprietary Micro-Cellular Urethane |
| Load Capacity | 1800 lbs. at 50% compression |
| Maintenance | Maintenance-free |
| Product Dimensions | Approximately 11 x 8 x 5 inches (per unit) |
| Item Weight | Approximately 2 pounds (per unit) |
| Special Features | Compress up to 80% of original height with full memory rebound, Improves overall driver control and ride comfort, One-piece unit attached on one side used as a replacement/upgrade to factory bump stops, progressive spring rate with superior damping properties |
10. Warranty and Support
For specific warranty information regarding your SuperSprings SSF-202-47 SumoSprings, please refer to the documentation included with your purchase or visit the official SuperSprings website. Warranty terms typically cover manufacturing defects.
If you require technical assistance, have questions about installation, or need to report a product issue, please contact SuperSprings customer support directly. Contact information can usually be found on the product packaging or the manufacturer's website.
SuperSprings International, Inc.
Website: www.supersprings.com (Example link, verify actual URL)
