1. Product Overview
The Goodman 4 Ton 14 SEER Package Air Conditioner System (Model GPC1448H41) is a self-contained cooling unit designed for efficient climate control. This unit is suitable for both rooftop and ground-level mounting, making it versatile for various residential and commercial applications, including modular or manufactured homes. It utilizes R-410a refrigerant, which is designed to be environmentally responsible.
Key features include:
- Efficient Cooling: 14 SEER rating for low energy consumption.
- Versatile Installation: Ideal for rooftop and ground-level mounting.
- Self-Contained Design: Requires only return and supply ducts, drain connection, and low voltage wiring for installation.
- R-410a Refrigerant: Environmentally conscious refrigerant.
Product Videos
Watch these short videos for a quick visual overview of the Goodman Package Air Conditioner System.
2. Safety Information
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, personal injury, or loss of life. Installation and service must be performed by a qualified installer or service agency.
- Electrical Hazard: Always disconnect power to the unit before performing any service or maintenance. Failure to do so can result in severe electrical shock or death.
- Refrigerant Handling: This unit contains R-410a refrigerant. Only qualified personnel should handle refrigerants. Improper handling can cause injury or environmental damage.
- Sharp Edges: Be aware of sharp edges on sheet metal parts. Wear appropriate personal protective equipment, such as gloves, during installation and service.
- Heavy Equipment: This unit is heavy. Use proper lifting techniques and equipment to prevent injury during installation.
- Professional Installation: For your safety and to ensure proper operation and warranty validity, this unit must be installed by a qualified HVAC professional.
3. Setup and Installation
The Goodman GPC1448H41 is designed for straightforward installation, but it requires adherence to local codes and manufacturer guidelines. Professional installation is mandatory.
3.1 Unit Placement
The unit can be mounted on a rooftop or at ground level. Ensure the chosen location provides adequate clearance for airflow, service access, and is structurally sound to support the unit's weight (377 pounds).

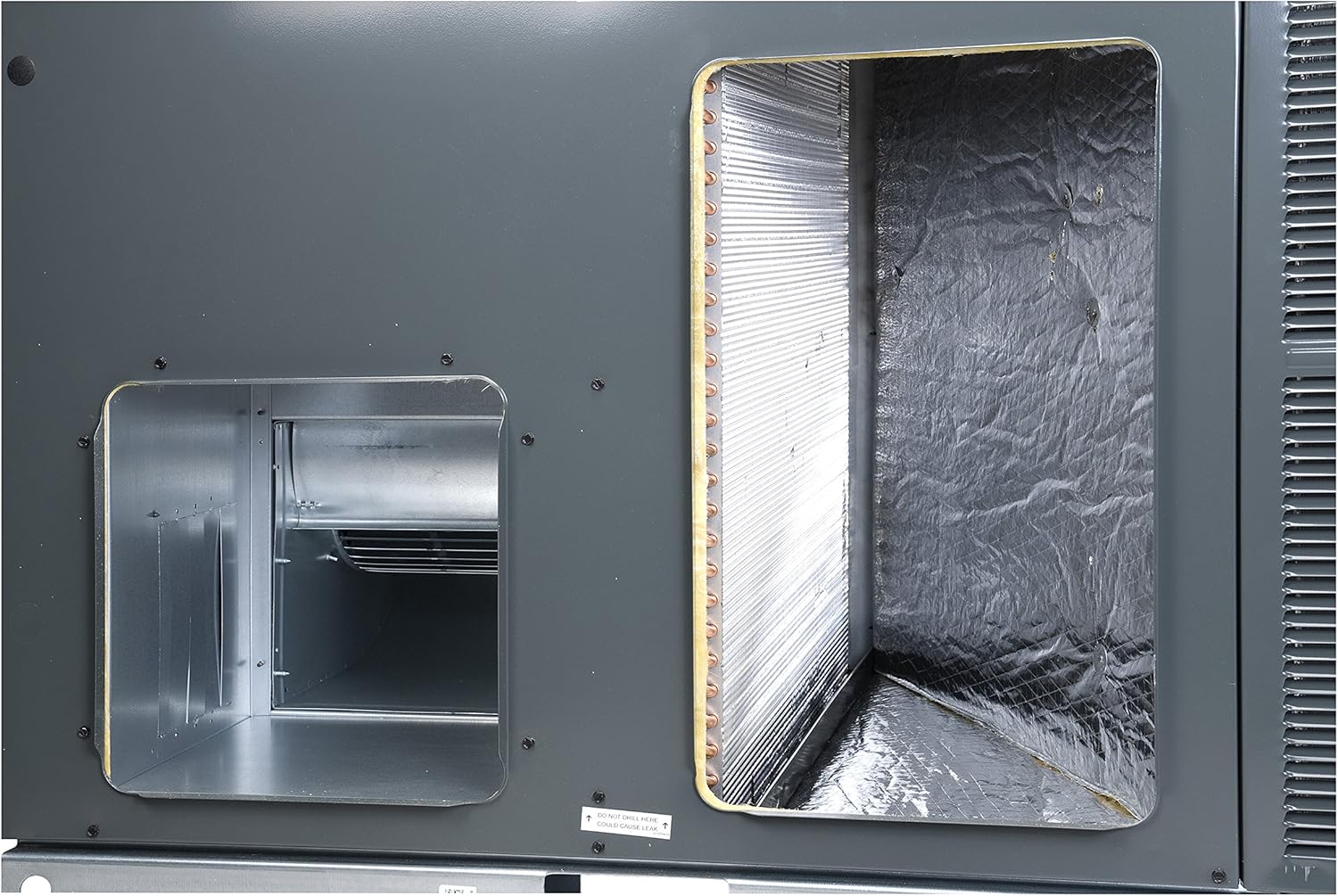

3.2 Ductwork Connections
Connect the supply and return air ducts to the designated openings on the unit. Ensure all connections are sealed properly to prevent air leakage and maintain system efficiency.
3.3 Drain Connection
Connect the condensate drain line to ensure proper removal of moisture collected during the cooling process. The drain line must have a proper slope to allow for gravity drainage and should be trapped according to local codes.
3.4 Electrical Wiring
Connect the low voltage control wiring and the main power supply (230 Volts) according to the wiring diagram provided with the unit and local electrical codes. All electrical work must be performed by a licensed electrician.
4. Operating Instructions
Once installed and commissioned by a qualified technician, operating your Goodman Package Air Conditioner is simple, primarily controlled via your thermostat.
4.1 Cooling Operation
Set your thermostat to the 'Cool' mode and adjust the desired temperature. The unit will automatically cycle on and off to maintain the set temperature, providing efficient cooling for your space.
4.2 Heating Capability (Optional)
While primarily a cooling unit, the GPC1448H41 can provide heat when a compatible heater coil is added. If a heater coil is installed, you can switch your thermostat to 'Heat' mode to activate the heating function. Heat kits up to 20 KW are available separately.
5. Maintenance
Regular maintenance is crucial for the longevity and efficient operation of your Goodman unit. It is recommended to have a qualified HVAC technician perform annual professional maintenance.
5.1 Air Filter Replacement/Cleaning
Check and replace or clean your system's air filters regularly (typically every 1-3 months, depending on usage and environmental conditions). Dirty filters restrict airflow, reduce efficiency, and can damage the unit.
5.2 Coil Cleaning
The outdoor condenser coils can accumulate dirt and debris, reducing heat transfer efficiency. A qualified technician should periodically clean these coils. The indoor evaporator coils also require professional cleaning to ensure optimal performance and air quality.
5.3 Drain Line Inspection
Ensure the condensate drain line is clear of obstructions to prevent water backup and potential damage. This should be part of routine professional maintenance.
6. Troubleshooting
If you experience issues with your unit, refer to the common troubleshooting tips below. For complex problems, always contact a qualified HVAC technician.
- No Cooling:
- Check thermostat settings (ensure it's set to 'Cool' and desired temperature is below ambient).
- Verify power supply to the unit (check circuit breakers).
- Ensure air filters are clean and not blocking airflow.
- Low Airflow:
- Inspect and replace/clean air filters.
- Check for obstructions in return or supply vents.
- Unusual Noises:
- Rattling or vibrating noises may indicate loose panels or debris.
- Screeching or grinding noises often point to motor or fan issues, requiring professional service.
If these basic steps do not resolve the issue, do not attempt further repairs. Contact a qualified HVAC service technician.
7. Specifications
Detailed technical specifications for the Goodman GPC1448H41 Package Air Conditioner System:
| Specification | Value |
|---|---|
| Model Number | GPC1448H41 |
| Brand | Goodman |
| Cooling Capacity | 4 Tons (48,000 BTU) |
| SEER Rating | 14 |
| Refrigerant Type | R-410a |
| Voltage | 230 Volts |
| Product Dimensions (D x W x H) | 34 x 66.25 x 38.75 inches |
| Item Weight | 377 pounds |
| Color | Architectural Gray |
8. Warranty and Support
8.1 Warranty Information
This Goodman unit comes with a 10-year parts limited warranty. To activate and validate this warranty, the unit must be installed by a qualified installer and registered online within the specified timeframe after purchase. Please refer to the warranty documentation included with your unit for full terms and conditions.
8.2 Customer Support
For technical assistance, warranty claims, or service requests, please contact your installing HVAC professional. They are best equipped to provide support for your specific installation. You may also visit the official Goodman website for additional resources and contact information.
Note: Accessories such as heat kits, thermostats, and duct adapters are sold separately and may have their own warranty terms.
