1. Introduction
Thank you for choosing the Climastar CR-LUX 1500w Space Heater. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new heater. Please read all instructions carefully before use and retain this manual for future reference.
2. Important Safety Information
WARNING: To reduce the risk of fire, electric shock, or injury, observe the following safety precautions:
- Read all instructions before installing or using this heater.
- This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
- Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 meters) from the front of the heater and keep them away from the sides and rear.
- Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
- Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped, or damaged in any manner.
- Do not use outdoors.
- Never locate heater where it may fall into a bathtub or other water container.
- Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
- To disconnect heater, turn controls to off, then remove plug from outlet.
- Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
- To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
- A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable vapors or liquids are used or stored.
- Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
3. Package Contents
Upon unpacking, please ensure all components are present and undamaged. If any items are missing or damaged, contact customer support immediately.
- Climastar CR-LUX 1500w Space Heater Unit (1)
- Wall Mounting Brackets and Hardware (1 set)
- Instruction Manual (1)
4. Setup and Installation
The Climastar CR-LUX 1500w is designed for wall-mount installation. Proper installation is crucial for safety and optimal performance.
4.1 Choosing a Location
- Select a wall location in a Bedroom or Living Room that is clear of obstructions and away from combustible materials.
- Ensure the wall surface is capable of supporting the heater's weight (approximately 50 pounds).
- Maintain a minimum distance of 3 feet (0.9 meters) from furniture, curtains, and other flammable objects.
- Ensure there is a suitable electrical outlet nearby, rated for 12.5 Amps.
4.2 Wall Mounting Instructions
- Carefully unpack the heater and mounting hardware.
- Determine the desired mounting height. The bottom of the heater should be at least 6 inches (15 cm) from the floor.
- Mark the positions for the mounting brackets on the wall using a pencil and a level. Refer to the included mounting template (if provided) or the bracket dimensions.
- Drill pilot holes at the marked positions. Use appropriate drill bits for your wall material (e.g., drywall anchors, wood screws).
- Securely attach the mounting brackets to the wall using the provided screws and anchors. Ensure they are level and firmly fixed.
- Carefully lift the heater and align the slots on the back of the heater with the wall-mounted brackets.
- Gently lower the heater onto the brackets until it clicks securely into place. Verify that the heater is stable and level.
- Once mounted, plug the heater into a grounded 120V AC electrical outlet.

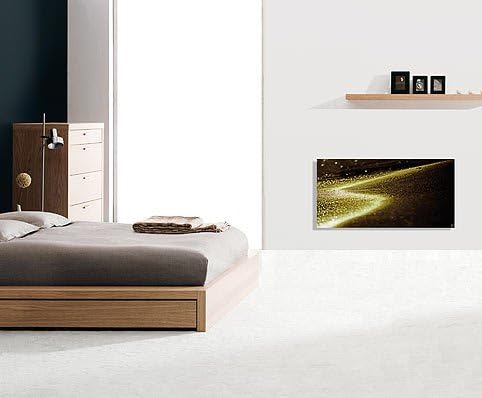

Image: Climastar CR-LUX 1500w Space Heater installed in a bedroom, demonstrating its sleek, wall-mounted design.
Image: Climastar CR-LUX 1500w Space Heater integrated into a living room environment, highlighting its aesthetic appeal.
5. Operating Instructions
The Climastar CR-LUX 1500w Space Heater provides efficient radiant heat. Follow these steps for operation:
5.1 Powering On/Off
- Ensure the heater is properly installed and plugged into a suitable electrical outlet.
- Locate the main power switch, typically on the side or bottom of the unit. Flip the switch to the 'ON' position to power the heater.
- To turn off the heater, flip the main power switch to the 'OFF' position. For extended periods of non-use, unplug the heater from the wall outlet.
5.2 Temperature Control
Your heater is equipped with a thermostat to maintain your desired room temperature.
- Locate the thermostat control knob, usually on the side of the unit.
- Turn the knob clockwise to increase the desired temperature setting. Turn it counter-clockwise to decrease the setting.
- The heater will cycle on and off to maintain the set temperature, providing consistent radiant heat.

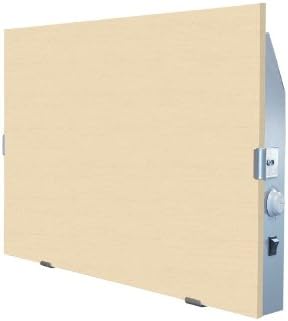

Image: Side profile of the Climastar CR-LUX 1500w heater, illustrating the location of the power switch and temperature control knob.
6. Maintenance
Regular maintenance ensures the longevity and efficient operation of your Climastar CR-LUX 1500w Space Heater.
6.1 Cleaning
- Always unplug the heater from the wall outlet and allow it to cool completely before cleaning.
- Wipe the exterior surfaces of the heater with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the finish.
- Ensure no water or liquid enters the interior of the heater.
- Do not attempt to open the heater casing for cleaning. There are no user-serviceable parts inside.
6.2 Storage
If storing the heater for an extended period, unplug it and allow it to cool. Store it in a cool, dry place, preferably in its original packaging, to protect it from dust and damage.
7. Troubleshooting
If you experience issues with your Climastar CR-LUX 1500w Space Heater, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Heater does not turn on. | No power to the unit. | Ensure the power cord is securely plugged into a working electrical outlet. Check the main power switch is in the 'ON' position. Verify the circuit breaker has not tripped. |
| Heater is on but not producing heat. | Thermostat set too low. | Increase the thermostat setting. The room temperature may already be at or above the set temperature. |
| Heater cycles on and off frequently. | Normal thermostat operation. | This is normal. The heater maintains the set temperature by cycling. If cycling is excessively rapid, ensure the heater is not placed near a draft or another heat source. |
| Unusual odors or sounds. | New unit odor; dust accumulation. | A slight odor may occur during initial use as manufacturing residues burn off. This is normal and should dissipate quickly. If odors persist or are strong, or if unusual sounds occur, unplug the heater immediately and contact customer support. |
If the problem persists after attempting these solutions, please contact Climastar customer support.
8. Specifications
Detailed technical specifications for the Climastar CR-LUX 1500w Space Heater:
| Feature | Specification |
|---|---|
| Brand | Climastar |
| Model Number | CR-LUX 1500w |
| Mounting Type | Wall Mount |
| Room Type | Bedroom, Living Room |
| Burner Type | Radiant |
| Amperage | 12.5 Amps |
| Product Dimensions | 39 x 4 x 19.3 inches |
| Item Weight | 50 pounds |
| UPC | 735932893108 |
| ASIN | B006NZC842 |
| Number of Pieces | 1 |
| Batteries Required | No |
9. Warranty and Customer Support
Climastar products are manufactured to high-quality standards. For information regarding your product's warranty, please refer to the warranty card included with your purchase or visit the official Climastar website.
If you require technical assistance, have questions about your product, or need to report a problem, please contact Climastar customer support. Contact details can typically be found on the manufacturer's website or your purchase documentation.
