Product Overview

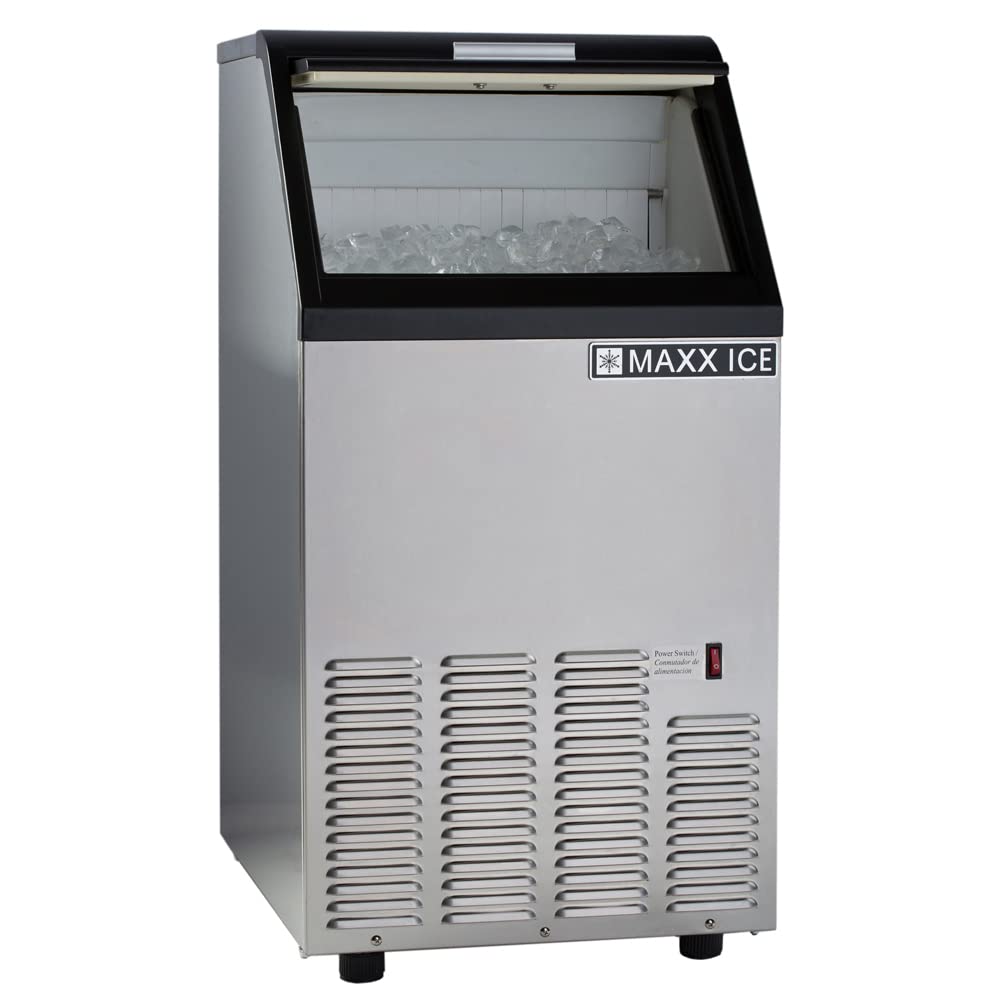

The Maxx Ice MIM75 is a self-contained, air-cooled commercial ice maker designed for undercounter or freestanding installation. It produces up to 75 pounds of bullet ice cubes daily and features a 25-pound storage bin. Constructed from durable stainless steel, this unit is suitable for various commercial settings requiring reliable ice production.
Important Safety Information
Read all instructions before using this appliance to reduce the risk of fire, electric shock, or injury.
- DANGER: Risk of Electric Shock. Always disconnect the power supply before performing any service or maintenance.
- Ensure the electrical supply is properly grounded. Do not remove the ground prong from the power cord.
- Do not use extension cords with this appliance.
- Do not operate the machine if the power cord is damaged.
- Ensure the electrical circuit is properly sized and protected.
- Do not use the appliance near flammable liquids or gases.
- Ensure the water supply is properly sized and protected.
- Use this appliance only for its intended purpose: commercial ice production.
What's in the Box
Upon unpacking, verify that all components are present:
- Maxx Ice MIM75 Ice Maker Unit
- Ice Scoop
- Integrated Ice Bin
- Care and Use Manual (this document)
Setup & Installation
The Maxx Ice MIM75 is designed for self-contained, undercounter installation, but can also be used freestanding. Proper installation is crucial for optimal performance and safety.
1. Location Requirements
- Ensure adequate ventilation. This is an air-cooled unit with front-breathing design.
- Maintain proper clearances around the unit as specified in the detailed installation guide (not provided in this summary).
- The unit can be installed freestanding or built-in under a counter.
2. Electrical Connection
- Requires a 115V electrical connection.
- Connect the provided 6-foot NEMA 5-15P cord set to a dedicated, grounded outlet.
- Refer to the "Important Safety Information" section for electrical safety guidelines.
3. Water Connection & Drainage
- Requires a ¾ gravity drain line for proper water disposal.
- A water filter system is highly recommended for optimal performance and to ensure the cleanest ice.
- Connect the water inlet to a potable water supply according to local plumbing codes.
4. Initial Cleaning
- Before first use, clean the interior of the ice bin and all surfaces that come into contact with ice.
- Use a mild, food-safe cleaning solution and rinse thoroughly.
Operation
The Maxx Ice MIM75 features user-friendly controls for straightforward operation.
1. Starting the Ice Maker
- Ensure the unit is properly installed and connected to power and water.
- Locate the power switch (refer to Figure 3) and switch it to the "ON" position.
- The machine will begin its ice-making cycle automatically.
2. Ice Production
- The unit produces bullet-shaped ice cubes.
- It can produce up to 75 pounds of ice daily under ideal conditions.
- The self-contained storage bin holds up to 25 pounds of ice.
- The machine features an auto overfill prevention system, stopping ice production when the bin is full.
3. Retrieving Ice
- Open the top lid to access the ice bin.
- Use the provided ice scoop to retrieve ice.
- Close the lid securely after use to maintain ice quality and temperature.
Maintenance
Regular maintenance ensures the longevity and efficient operation of your Maxx Ice MIM75.
1. Daily/Weekly Cleaning
- Wipe down the exterior with a soft, damp cloth.
- Clean the interior of the ice bin (polyethylene liner) with a mild, food-safe cleaner and rinse thoroughly.
- Ensure the ice scoop is cleaned regularly.
2. Self-Cleaning Mode
- The unit features a self-cleaning mode. Refer to the detailed product manual for specific instructions on activating and running this cycle.
- Regular use of the self-cleaning mode helps prevent mineral buildup and maintains ice quality.
3. Water Filter Maintenance
- If a water filter system is installed, follow the manufacturer's recommendations for filter replacement.
- A clean water filter is essential for producing clean, fresh-tasting ice and for the overall health of the machine.
4. Condenser Cleaning
- Periodically clean the condenser coils to ensure efficient cooling. Dust and debris can accumulate, reducing efficiency.
- Always disconnect power before cleaning the condenser.
Troubleshooting
This section provides solutions to common issues you might encounter. For more complex problems, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| No Ice Production |
|
|
| Poor Ice Quality / Small Cubes |
|
|
| Unusual Noise |
|
|
Specifications
Key technical specifications for the Maxx Ice MIM75 Commercial Ice Maker Machine:
| Feature | Detail |
|---|---|
| Model Number | MIM75 |
| Ice Production Capacity | Up to 75 lbs per 24 hours |
| Ice Storage Capacity | 25 lbs |
| Ice Type | Bullet Cubes |
| Cooling Type | Air-cooled |
| Installation Type | Self-contained, Undercounter (Freestanding or Built-in) |
| Electrical Requirements | 115V |
| Wattage | 820 watts |
| Product Dimensions (D x W x H) | 21" x 16.7" x 32.7" (53.3cm x 42.4cm x 83.1cm) |
| Product Weight | 82 lbs (37.2 kg) |
| Exterior Material | Stainless Steel |
| Interior Material | Polyethylene liner (ice bin) |
| Manufacturer | The Legacy Companies |
| First Available Date | November 10, 2011 |
Warranty & Customer Support
For specific warranty details, please refer to the warranty card included with your product or contact Maxx Ice customer service directly. Maxx Ice is a brand of The Legacy Companies.
If you encounter issues not covered in the troubleshooting section or require technical assistance, please contact:
- Maxx Ice Customer Support: Refer to the official Maxx Ice website or your purchase documentation for current contact information.
- Online Resources: Visit the Maxx Ice Store on Amazon for additional product information and resources.
