1. Introduction
This manual provides essential information for the proper installation, maintenance, and troubleshooting of your Stens Grasshopper Replacement Flat Idler Pulley, model grp_280-378. This component is designed to replace Grasshopper OEM part number 393312. The flat idler pulley plays a critical role in maintaining proper tension on the drive belts of your lawn mower, ensuring efficient power transfer and smooth operation.
2. Safety Information
Always prioritize safety when working with machinery. Failure to follow these safety guidelines may result in serious injury or damage to equipment.
- Disconnect Power: Before performing any maintenance or installation, ensure the lawn mower's engine is off, the spark plug wire is disconnected, and the battery is disconnected (if applicable) to prevent accidental starting.
- Wear Protective Gear: Always wear appropriate personal protective equipment, including safety glasses and heavy-duty gloves, to protect against sharp edges, pinch points, and debris.
- Secure Equipment: Ensure the lawn mower is on a stable, level surface and properly supported to prevent it from moving or tipping during work.
- Read Mower Manual: Refer to your specific Grasshopper lawn mower's owner's manual for detailed safety instructions and procedures related to belt and pulley replacement.
- Use Correct Tools: Use only the appropriate tools for the task to avoid damaging components or causing injury.
3. Package Contents
Verify that all components are present and undamaged upon opening the package.
- 1 x Stens Grasshopper Replacement Flat Idler Pulley (Model grp_280-378)
4. Setup and Installation
This section outlines the general steps for replacing a flat idler pulley. Specific procedures may vary depending on your Grasshopper mower model. Always consult your mower's service manual for precise instructions.
- Prepare the Mower: Park the mower on a flat, stable surface. Turn off the engine, remove the ignition key, disconnect the spark plug wire, and engage the parking brake. Allow the engine and any hot components to cool down.
- Access the Idler Pulley: Depending on your mower model, you may need to remove deck covers, guards, or other components to gain access to the drive belt system and the idler pulley.
- Relieve Belt Tension: Carefully relieve the tension on the belt that runs over the idler pulley. This often involves manipulating a tensioning arm or spring. Note the belt routing before removal. Taking a photograph can be helpful.
- Remove Old Idler: Locate the bolt or fastener securing the old idler pulley. Use appropriate tools to loosen and remove it. Carefully detach the old pulley from its mounting point. Inspect the mounting area for any wear or damage.
- Install New Idler: Position the new Stens flat idler pulley onto the mounting post. Ensure it sits correctly and freely rotates. Secure it with the original bolt and washer, tightening it to the manufacturer's specified torque (refer to your mower's manual). Do not overtighten.
- Reinstall Belt: Route the drive belt back over the new idler pulley and other pulleys according to the original configuration. Ensure the belt is properly seated in all pulley grooves.
- Restore Belt Tension: Reapply tension to the belt system. Verify that the belt is taut but not excessively tight, and that the idler pulley moves freely as tension is applied and released.
- Reassemble Mower: Reinstall any covers, guards, or components that were removed to access the idler pulley. Reconnect the spark plug wire and battery.
- Test Operation: Start the mower and carefully engage the drive system (if applicable) to ensure the new idler pulley functions correctly and the belt runs smoothly without slipping or unusual noise.

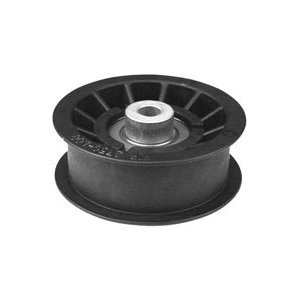

Figure 1: Stens Grasshopper Replacement Flat Idler Pulley. This image shows the general appearance of the flat idler pulley, which is a crucial component for maintaining belt tension in lawn mower drive systems.
5. Operating Function
Once installed, the flat idler pulley operates passively within the mower's belt drive system. Its primary function is to provide constant tension to the drive belt, ensuring that power is efficiently transferred from the engine to the mower's wheels or cutting deck. It also helps guide the belt along its correct path, preventing slippage and premature wear of the belt and other components. Proper operation is indicated by a smooth-running belt system without excessive noise or vibration.
6. Maintenance
Regular inspection and maintenance of the idler pulley can extend its lifespan and ensure reliable mower operation.
- Visual Inspection: Periodically inspect the idler pulley for signs of wear, such as cracks, chips, or excessive grooving on the pulley surface. Check for any wobbling or looseness when the engine is off.
- Bearing Check: With the belt tension relieved, manually spin the pulley. It should rotate smoothly and quietly. Any grinding, squealing, or excessive resistance indicates a worn bearing that requires replacement.
- Cleanliness: Keep the pulley and surrounding area free of grass clippings, dirt, and debris, which can interfere with its rotation and cause premature wear.
- Lubrication: This specific flat idler pulley is typically a sealed unit and does not require lubrication. Attempting to lubricate sealed bearings can sometimes introduce contaminants.
7. Troubleshooting
If you experience issues with your mower's belt system, the idler pulley may be a contributing factor.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Belt slipping or poor power transfer | Worn idler pulley bearing, incorrect belt tension, damaged pulley surface | Inspect idler pulley for wear; replace if necessary. Check and adjust belt tension according to mower manual. |
| Squealing or grinding noise from belt area | Worn or seized idler pulley bearing | Replace the idler pulley. |
| Belt coming off pulley | Loose or damaged idler pulley, incorrect belt routing, worn belt | Ensure idler pulley is securely mounted. Verify correct belt routing. Inspect belt for wear and replace if needed. |
If troubleshooting steps do not resolve the issue, consult a qualified service technician or refer to your Grasshopper mower's service manual.
8. Specifications
| Specification | Detail |
|---|---|
| Brand | Stens |
| Model Number | grp_280-378 |
| Replaces OEM Part | Grasshopper 393312 |
| UPC | 698035088843 |
| ASIN | B0067KDUY0 |
| Type | Flat Idler Pulley |
9. Warranty and Support
For warranty information regarding your Stens Grasshopper Replacement Flat Idler Pulley, please refer to the official Stens website or contact Stens customer support directly. Warranty terms and conditions may vary. Keep your purchase receipt as proof of purchase.
For technical support or further assistance, please contact Stens customer service or consult an authorized Grasshopper service center.
