Stainless Steel Male Quick Disconnect MPT

1. Product Overview

The Learn To Brew LLC Stainless Steel Male Quick Disconnect MPT is a durable 1/2 inch fitting designed for efficient and secure connections in various fluid transfer systems. Constructed from high-quality 304 stainless steel, this component offers excellent corrosion resistance and longevity. It features a Male Pipe Thread (MPT) for attachment to compatible female NPT ports and connects seamlessly with a female quick disconnect coupler.

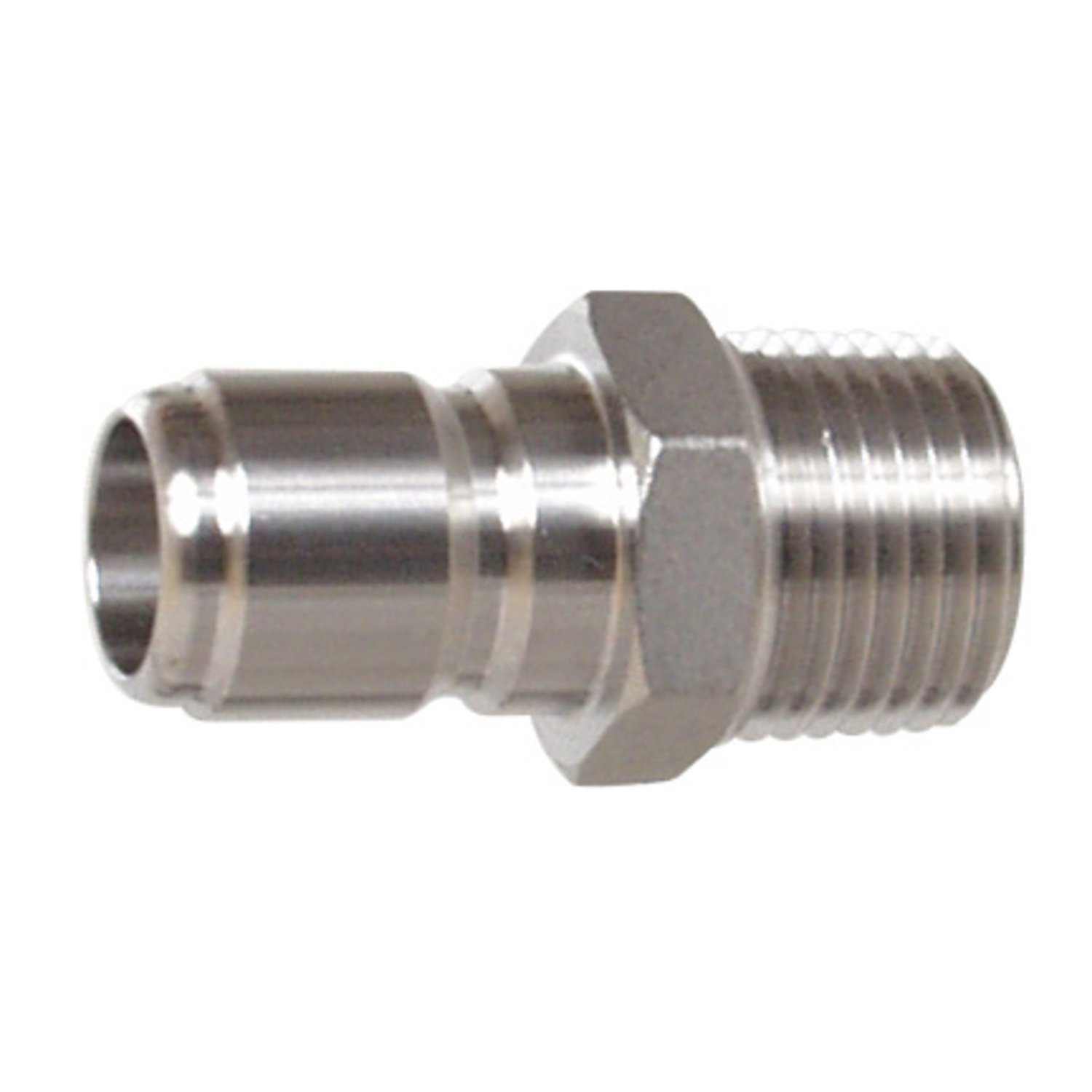

Image: Learn To Brew LLC 1/2 inch Stainless Steel Male Quick Disconnect MPT. This image displays the male quick disconnect fitting, highlighting its stainless steel construction and threaded end.

2. Safety Information

• Always ensure that the system is depressurized before connecting or disconnecting fittings.
• Wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, when handling and installing fittings.
• Verify that the fitting material (304 stainless steel) is compatible with the fluids being transferred to prevent corrosion or degradation.
• Do not exceed the pressure ratings of any component in your system. While this fitting is robust, the overall system integrity depends on all parts.
• Ensure all connections are properly sealed and tightened to prevent leaks, which can cause hazards.

3. Package Contents

Your package should contain the following item:

• 1 x Learn To Brew LLC 1/2 inch Stainless Steel Male Quick Disconnect MPT

4. Setup and Installation

1. Prepare the Threaded Connection: Identify the 1/2 inch Female NPT port where the male quick disconnect will be installed. Ensure the threads are clean and free of debris.
2. Apply Thread Sealant: Apply 2-3 layers of PTFE (Teflon) tape clockwise around the Male Pipe Thread (MPT) of the quick disconnect. Alternatively, a liquid thread sealant compatible with stainless steel and your fluid can be used.
3. Thread the Fitting: Carefully thread the male quick disconnect into the female NPT port by hand. Ensure it starts smoothly without cross-threading.
4. Tighten the Connection: Using an appropriate wrench, tighten the fitting until it is snug. Avoid over-tightening, which can damage threads or deform the fitting. A good seal is achieved when the fitting is firm and does not leak under pressure.
5. Connect to Female Coupler: To connect to a female quick disconnect coupler, simply push the male quick disconnect firmly into the female coupler until it clicks or locks into place. Ensure the connection is secure by gently pulling on the fitting.

5. Operating Instructions

1. Connecting: Align the male quick disconnect with the female quick disconnect coupler. Push the male fitting straight into the female coupler until you feel it engage and lock. A slight tug will confirm a secure connection.
2. Disconnecting: To disconnect, ensure the system is depressurized if applicable. Pull back the collar on the female quick disconnect coupler. While holding the collar back, pull the male quick disconnect straight out of the coupler.
3. Leak Check: After connecting, slowly introduce fluid into the system and carefully inspect all connections for any signs of leakage. Address any leaks immediately by re-tightening or re-sealing.

6. Maintenance

• Cleaning: Clean the stainless steel fitting regularly with warm water and a mild detergent. Rinse thoroughly and dry completely to prevent water spots or mineral buildup. Avoid abrasive cleaners or scouring pads that can scratch the surface.
• Inspection: Periodically inspect the threads and the quick disconnect mechanism for any signs of wear, damage, or corrosion. Check for any deformation or cracks.
• Lubrication (if applicable): While stainless steel quick disconnects generally do not require lubrication, if you experience stiffness in connecting or disconnecting, a food-grade lubricant (e.g., silicone-based) can be applied sparingly to the O-rings within the female coupler (not on the male fitting itself) to improve operation.
• Storage: Store the fitting in a clean, dry environment when not in use to prevent contamination and prolong its lifespan.

7. Troubleshooting

• Leaks at Threaded Connection:
  • Ensure sufficient thread sealant (PTFE tape or liquid sealant) has been applied.
  • Check if the fitting is tightened adequately.
  • Inspect threads for damage; replace if necessary.
• Leaks at Quick Disconnect Connection:
  • Ensure the male fitting is fully engaged and locked into the female coupler.
  • Inspect the O-rings inside the female coupler for wear, cuts, or debris. Clean or replace O-rings if damaged.
  • Check for any debris obstructing the sealing surfaces.
• Difficulty Connecting/Disconnecting:
  • Ensure proper alignment between the male and female components.
  • Check for any foreign objects or debris preventing smooth operation.
  • If the female coupler's collar is stiff, ensure it is pulled back completely.

8. Specifications

9. Warranty and Support

For warranty information, technical support, or any inquiries regarding your Learn To Brew LLC Stainless Steel Male Quick Disconnect MPT, please contact Learn To Brew LLC directly through their official website or customer service channels. Please have your model number (qdmmpt) and purchase details available when contacting support.
