Gillette All Purpose Styler Instruction Manual

Product Overview

The Gillette All Purpose Styler is a versatile grooming tool designed for trimming, shaving, and precise edging of facial hair. It combines a waterproof trimmer with three comb attachments, Gillette ProGlide razor blades, and a precision edger, all powered by Braun-engineered technology.

Image: Gillette All Purpose Styler components, including the trimmer, razor head, comb attachments, and stand, neatly arranged in its packaging.

Included Components

• 1 Trimmer Handle
• 1 ProGlide Blade Refill
• 3 Comb Attachments (2mm, 4mm, 6mm)
• 1 AAA Battery
• 1 Organizer Stand

Setup

Battery Installation

1. Twist the bottom cap of the trimmer handle counter-clockwise to open the battery compartment.
2. Insert one AAA battery, ensuring the positive (+) and negative (-) terminals align correctly.
3. Twist the bottom cap clockwise to securely close the battery compartment.

Attaching Razor Blade or Trimmer Head

1. To attach the ProGlide razor blade, align the razor head with the top of the trimmer handle and push until it clicks into place.
2. To attach a comb attachment, slide it over the trimmer head until it securely locks.

Image: A close-up view of the precision trimmer head, highlighting its design for hard-to-reach areas and styling facial hair.

Operating Instructions

Trimming

Use the trimmer with one of the three comb attachments (2mm, 4mm, 6mm) to achieve your desired beard length. The trimmer is waterproof and can be used in the shower for convenience.

Image: A man using the Gillette Styler to trim his beard, demonstrating the trimming function.

Shaving

Attach the Gillette ProGlide razor blade for a close and comfortable shave. The Styler's design allows for smooth gliding across the skin.

Image: A man using the Gillette Styler to shave his neck area, illustrating the shaving function.

Edging

Utilize the precision trimmer to create crisp, defined lines and finishing touches for your facial hair style. This is ideal for shaping sideburns, goatees, or other detailed styles.

Image: A man using the Gillette Styler for precise edging along his beard line.

Image: A close-up of the Gillette Styler being used to define the edge of a mustache.

Maintenance

Cleaning

The Gillette All Purpose Styler is waterproof. After each use, simply rinse the trimmer head and razor blade under running water to remove hair and debris. The organizer stand is designed with drainage to prevent water accumulation.

Image: A hand holding the Gillette Styler under running water, demonstrating its waterproof feature for easy cleaning.

Blade Replacement

The Styler works with any Gillette 5-blade razor refill (excluding GilletteLabs). To replace the blade, press the release button on the handle and slide off the old blade. Align the new blade with the handle and push until it clicks into place.

Troubleshooting

• Trimmer not cutting effectively: Ensure the battery is fresh and correctly installed. Clean the trimmer head thoroughly to remove any accumulated hair.
• Razor pulling hair: Replace the razor blade with a new one. Dull blades can cause discomfort.
• Water accumulation in stand: The stand is designed with drainage. Ensure it is placed on a surface where water can drain freely.

Specifications

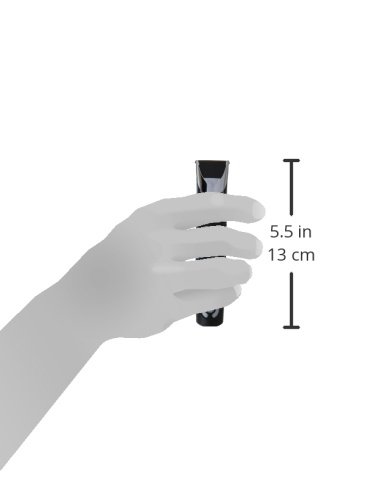

Image: A diagram illustrating the approximate dimensions of the Gillette Styler, showing a length of 5.5 inches (13 cm).

Safety Information

Keep out of reach of children.

Product Videos

Warranty and Support

For warranty information or product support, please refer to the documentation included with your purchase or visit the official Gillette website.
