ZyXEL MWR102 Wireless Router User Manual

1. Introduction

The ZyXEL MWR102 is a compact and versatile 3-in-1 wireless device designed for portable internet access. It functions as a Wireless Router, Access Point, and Client Bridge, providing IEEE 802.11n wireless connectivity with data transfer rates up to 150 Mbps. Its small form factor and flexible USB power option make it ideal for use in various environments, including hotels, conference rooms, or any location with a wired broadband connection.

This manual provides detailed instructions for setting up, operating, and maintaining your ZyXEL MWR102 Wireless Router. Please read this manual thoroughly before using the device.

2. Package Contents

Verify that your package contains the following items:

• ZyXEL MWR102 Wireless Router
• Ethernet Cable
• USB Power Cable
• AC Power Adapter (for USB cable)
• Quick Start Guide (not included in this digital manual)

3. Hardware Overview

3.1 Front Panel Indicators

Figure 1: Front panel of the ZyXEL MWR102 with LED indicators.

• WAN LED: Indicates connection status of the WAN port.
• LAN LED: Indicates connection status of the LAN port.
• WLAN LED: Indicates wireless activity.
• WPS LED: Indicates Wi-Fi Protected Setup status.
• PWR LED: Indicates power status.

3.2 Rear Panel Ports

Figure 2: Rear panel of the ZyXEL MWR102 showing the WAN (blue), LAN (black), and Mini-USB (DC 5V) ports.

• WAN Port (Blue): Connects to a broadband modem or an Ethernet wall jack for internet access.
• LAN Port (Black): Connects to a wired device such as a computer or network switch.
• DC 5V (Mini-USB) Port: Connects to the USB power cable for power supply.

3.3 Side Panel Switch

The side panel features a switch to select between Router and AP (Access Point) modes.

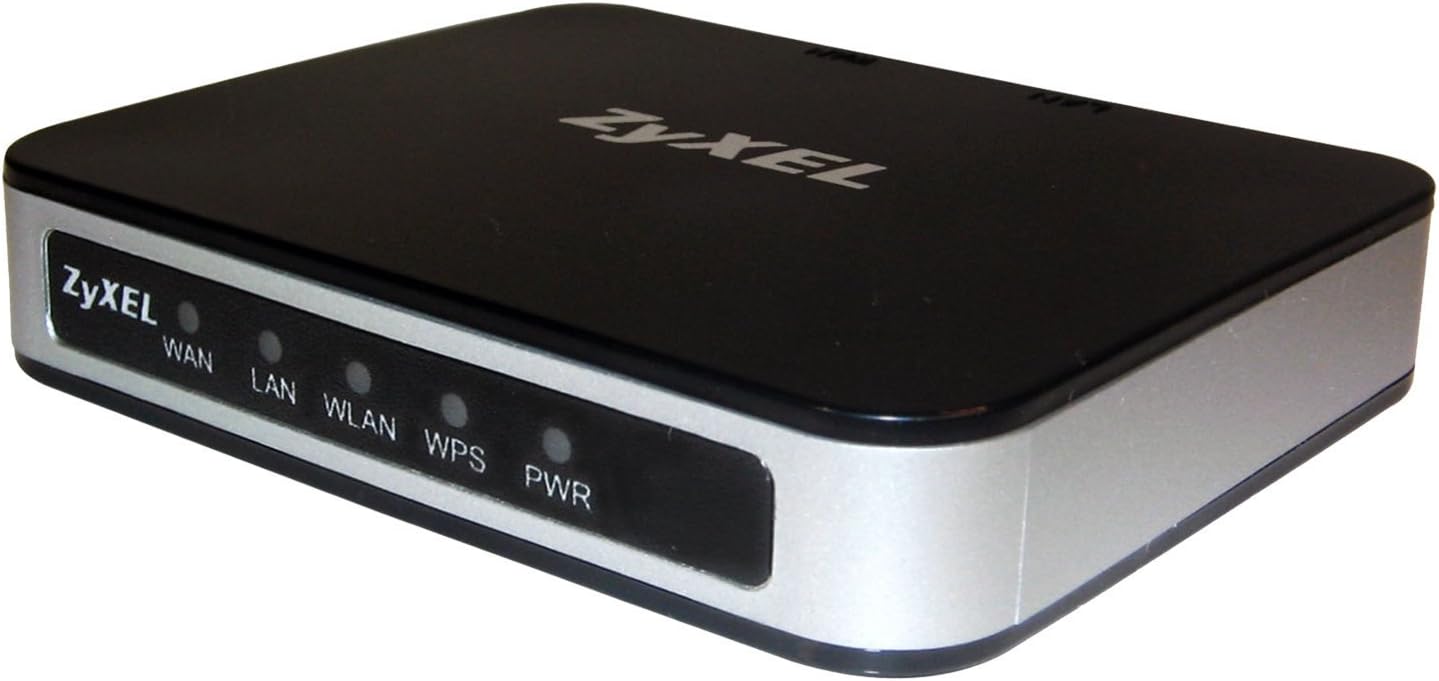

Figure 3: Overall view of the ZyXEL MWR102 router.

The device's compact dimensions are approximately 2.3 x 2.91 x 0.59 inches, making it highly portable.

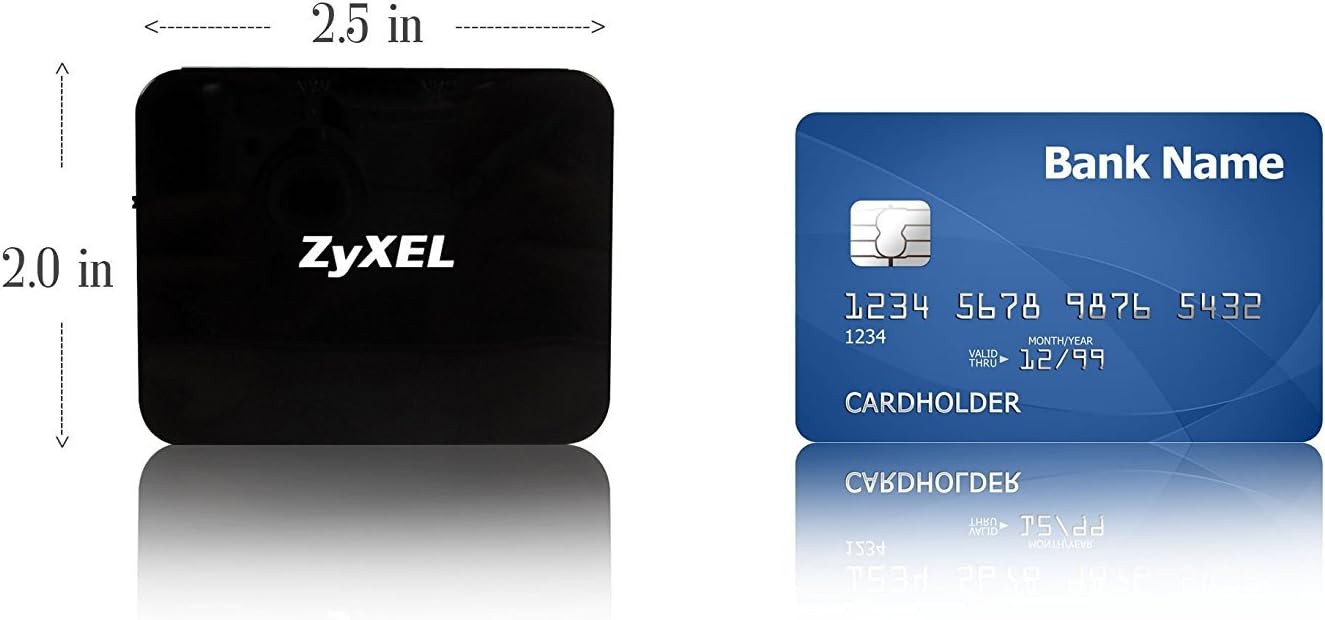

Figure 4: Size comparison of the ZyXEL MWR102 router.

4. Setup

4.1 Powering the Device

1. Connect the USB power cable to the DC 5V port on the rear of the MWR102.
2. Connect the other end of the USB cable to either:
   • The included AC power adapter, then plug into a wall outlet.
   • A USB port on a computer or other USB power source.
3. The PWR LED on the front panel will illuminate when the device is powered on.

4.2 Initial Configuration Access

The MWR102 comes with a default SSID and encryption key printed on the bottom of the device. The default IP address for accessing the configuration webpage is 192.168.100.1.

1. Ensure the MWR102 is powered on.
2. Connect your computer or wireless device to the MWR102's default Wi-Fi network using the SSID and password found on the device's bottom label.
3. Open a web browser and enter http://192.168.100.1 in the address bar.
4. Enter the default username and password (also found on the device's bottom label) to access the configuration interface.
5. It is recommended to change the default Wi-Fi password and router login credentials for security.

5. Operating Modes

The ZyXEL MWR102 supports three operating modes: Router, Access Point, and Client Bridge. The primary mode is selected via the physical switch on the side of the device.

5.1 Router Mode

In Router mode, the MWR102 shares a single wired internet connection wirelessly with multiple devices. This is ideal for hotel rooms or conference centers where only a single Ethernet port is available.

1. Set the side switch to Router.
2. Connect an Ethernet cable from the internet source (e.g., hotel Ethernet jack, modem) to the blue WAN port on the MWR102.
3. Power on the device.
4. Connect your wireless devices to the MWR102's Wi-Fi network.

5.2 Access Point (AP) Mode

In AP mode, the MWR102 extends an existing wired network by creating a new wireless network. This is useful for adding Wi-Fi capability to a wired-only network.

1. Set the side switch to AP.
2. Connect an Ethernet cable from your existing wired network (e.g., a router's LAN port) to the black LAN port on the MWR102.
3. Power on the device.
4. Connect your wireless devices to the MWR102's Wi-Fi network.

5.3 Client Bridge Mode

Client Bridge mode allows you to connect a wired-only device (like a smart TV, gaming console, or desktop PC) to an existing wireless network. The MWR102 acts as a wireless adapter for the wired device.

Note: To enable Client Bridge mode, you must first set the physical switch to AP mode, then access the MWR102's web configuration interface (http://192.168.100.1) to configure the Client Bridge settings. Refer to the online documentation or search for "ZyXEL MWR102 Client Bridge" for detailed instructions on configuring this advanced mode.

1. Set the side switch to AP.
2. Access the MWR102's web configuration interface.
3. Navigate to the wireless settings and configure the device to connect to your desired existing wireless network as a client.
4. Connect an Ethernet cable from the black LAN port on the MWR102 to the wired-only device.
5. Power on the device. The wired device will now have network access via the MWR102's wireless connection.

6. Security Features

The ZyXEL MWR102 incorporates several security features to protect your network and data:

• Wireless Encryption: Supports WEP, WPA, and WPA2 encryption protocols to secure your wireless network. It is highly recommended to use WPA2 for the strongest security.
• Firewall Features: Includes Network Address Translation (NAT), VPN pass-through, and Stateful Packet Inspection (SPI) to prevent unauthorized access and attacks from the internet.
• WPS (Wi-Fi Protected Setup): Allows for easy and secure establishment of a wireless connection with compatible devices by pressing a button.

7. Maintenance

To ensure optimal performance and longevity of your MWR102 router:

• Keep the device in a well-ventilated area, away from direct sunlight and heat sources.
• Avoid exposing the device to moisture or extreme temperatures.
• Clean the exterior with a soft, dry cloth. Do not use liquid cleaners.
• Periodically check the ZyXEL support website for firmware updates to ensure your device has the latest features and security enhancements.

8. Troubleshooting

If you encounter issues with your ZyXEL MWR102, refer to the following common troubleshooting steps:

• No Power: Ensure the USB power cable is securely connected to the device and a working power source. Check if the PWR LED is illuminated.
• Cannot Access Internet:
  • Verify that the WAN cable is securely connected to the blue WAN port and the internet source is active.
  • In Router mode, check the WAN LED status.
  • Ensure your device is connected to the MWR102's Wi-Fi network.
  • Access the router's web configuration (http://192.168.100.1) and check the internet connection status.
• Cannot Connect to Wi-Fi:
  • Ensure the WLAN LED is active.
  • Verify you are using the correct Wi-Fi network name (SSID) and password. These are printed on the bottom of the device.
  • Try restarting the MWR102 and your wireless device.
• Forgot Login Password: If you cannot access the web configuration interface, you may need to perform a factory reset. Locate the reset button (often a small pinhole) on the device, press and hold it for 10-15 seconds while the device is powered on. This will restore all settings to their factory defaults, including the login credentials and Wi-Fi settings found on the device's bottom label.

9. Specifications

10. Warranty and Support

For warranty information and technical support, please refer to the official ZyXEL website or contact ZyXEL customer service. Keep your purchase receipt for warranty claims.

ZyXEL Support Website: https://www.zyxel.com/us/en/support
